Oil Pressure System: Schematic

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

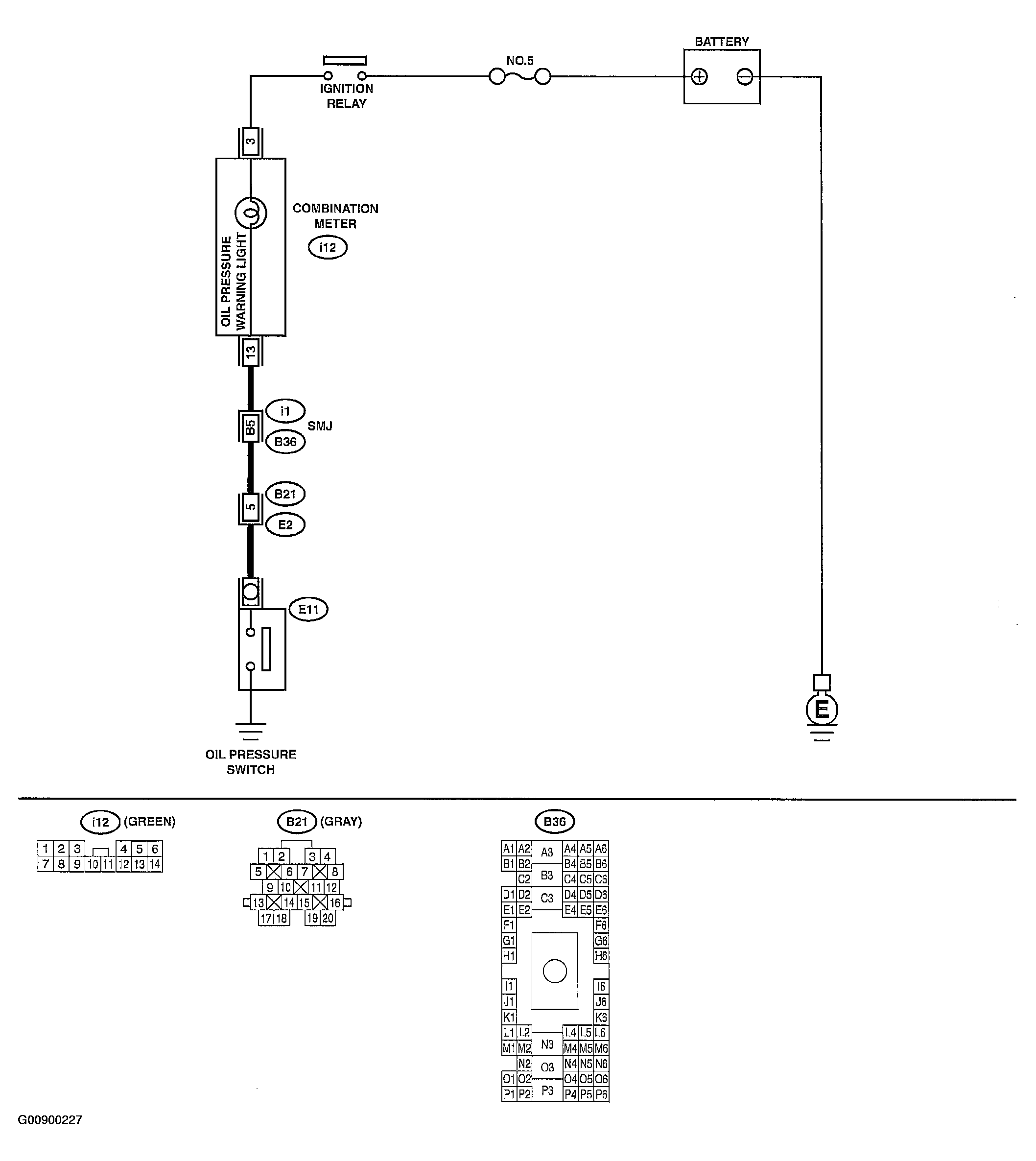

Fig 1: Oil Pressure System Wiring Diagram
G00900227Courtesy of SUBARU OF AMERICA, INC.
