Oil Pressure Switch: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Apply fluid gasket to oil pressure switch threads.
1. Fluid gasket: Part No. 004403042
  1. THREE BOND 1324 or equivalent

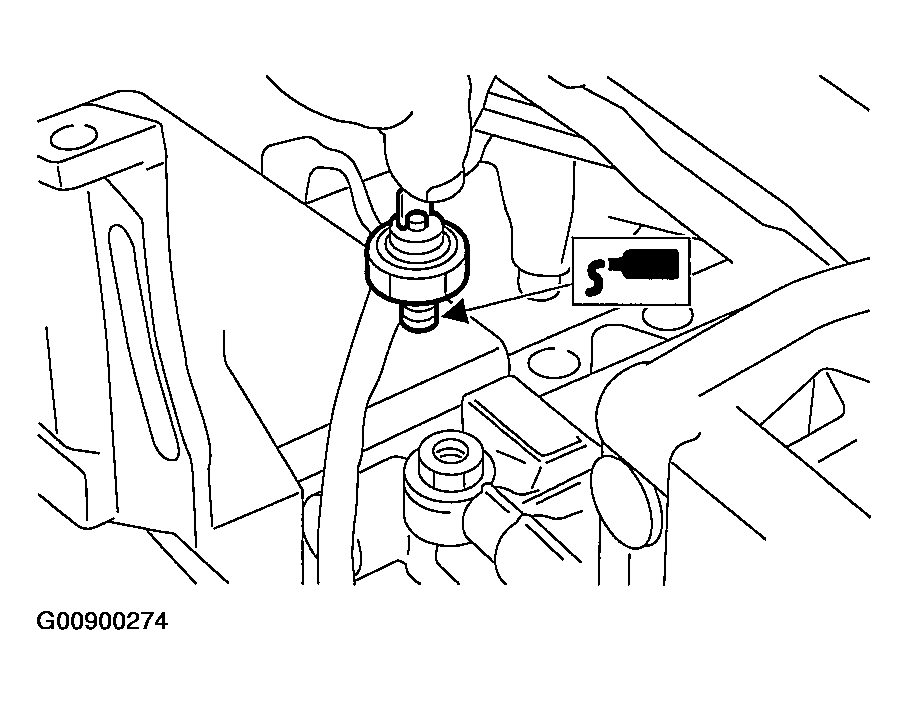

Fig 1: Applying Fluid Gasket To Oil Pressure Switch Threads
Courtesy of SUBARU OF AMERICA, INC.
Install oil pressure switch onto engine block.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

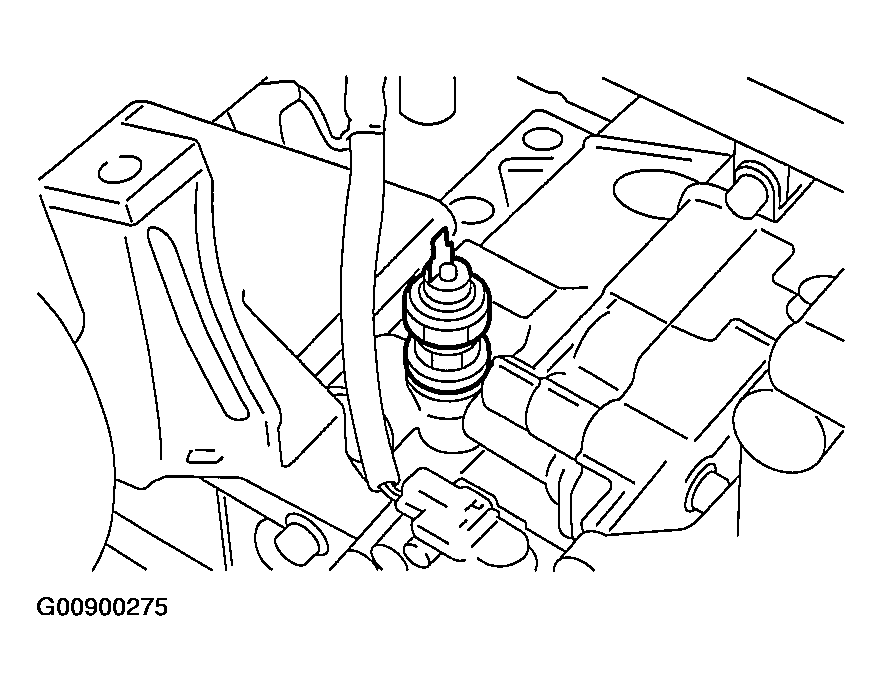

Fig 2: Installing Oil Pressure Switch Onto Engine Block
Courtesy of SUBARU OF AMERICA, INC.
Connect terminal of oil pressure switch.

Fig 3: Connecting Terminal Of Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Install generator on bracket. Refer to INSTALLATION , Generator.
