Section 167 (Lubrication (H4SO)): General Description: Preparation Tool

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

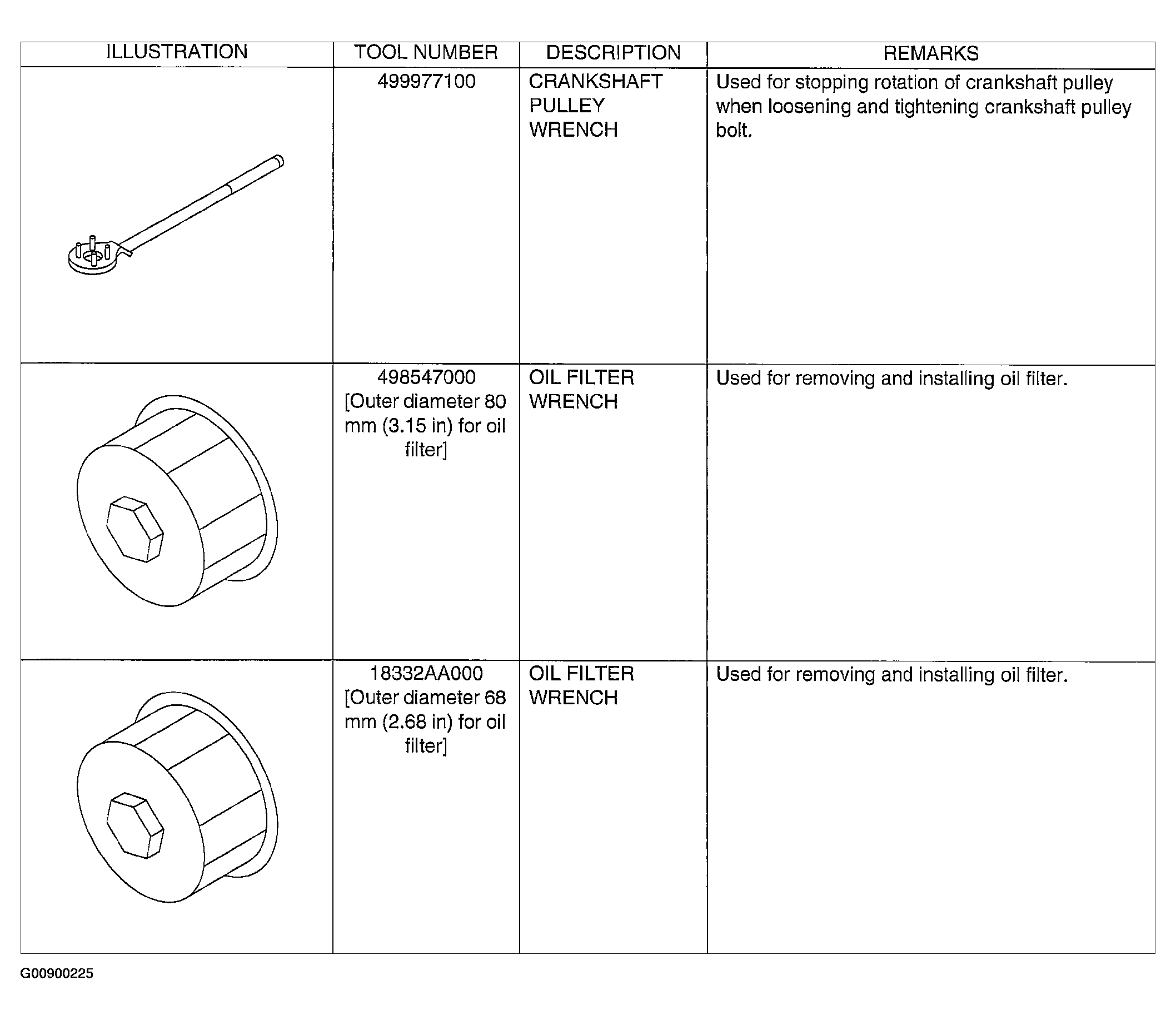

Fig 1: Preparation Tool Chart (1 Of 2)
G00900225Courtesy of SUBARU OF AMERICA, INC.

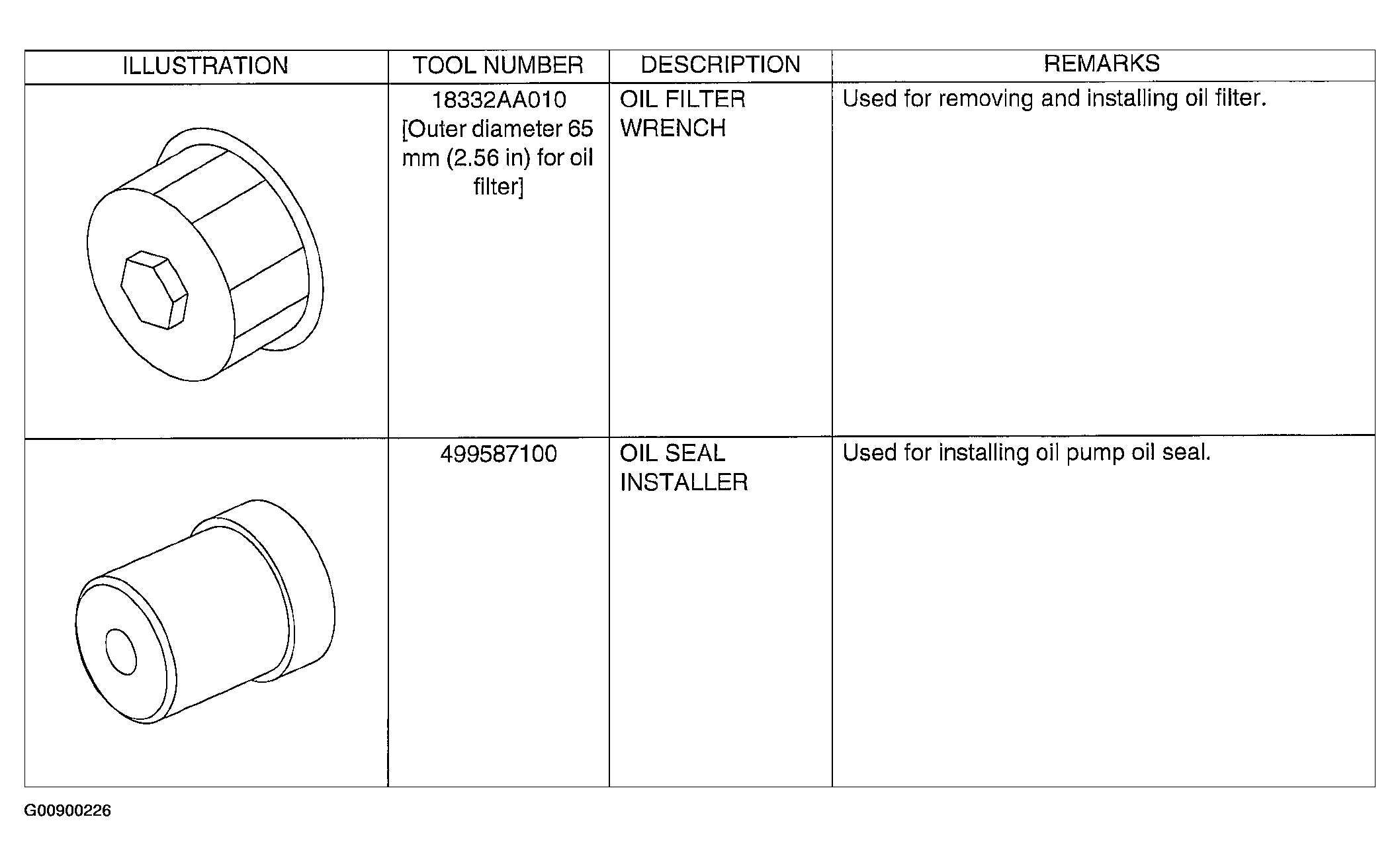

Fig 2: Preparation Tool Chart (2 Of 2)
G00900226Courtesy of SUBARU OF AMERICA, INC.
