Preparation for Overhaul: Procedure

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. After removing the engine from the body, secure it in the ST shown below.
    1. ST1 498457000 ENGINE STAND ADAPTER RH
    2. ST2 498457100 ENGINE STAND ADAPTER LH
    3. ST3 499817100 ENGINE STAND

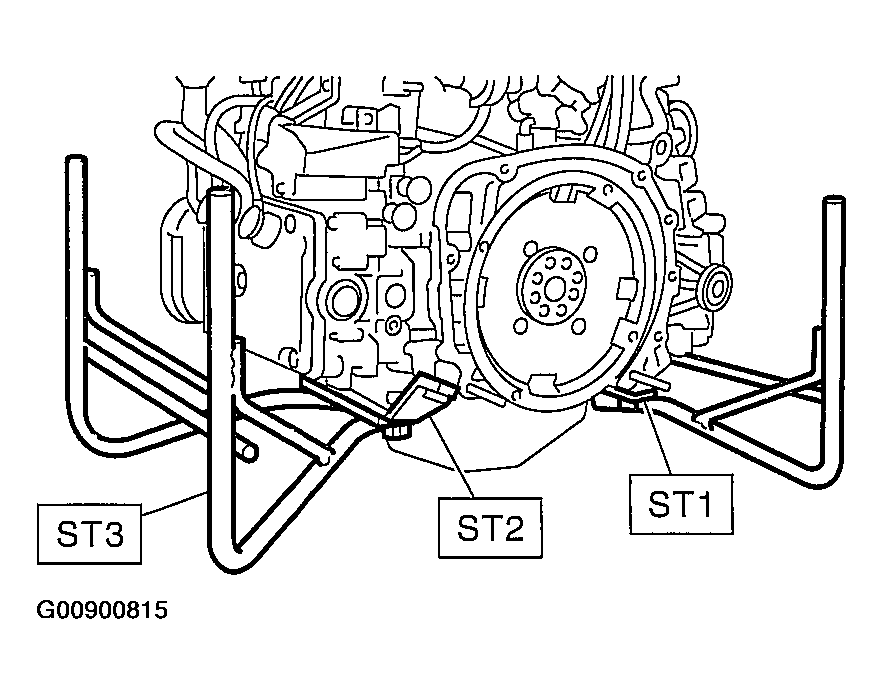

    Fig 1: Securing Engine Using ST
    G00900815Courtesy of SUBARU OF AMERICA, INC.
  2. In this section the procedures described under each index are all connected and stated in order. It will be the complete procedure for overhauling of the engine itself when you go through all steps in the process.

    Therefore, in this section, to conduct the particular procedure within the flow of a section, you need to go back and conduct the procedure described previously in order to do that particular procedure.
