Special Tools

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

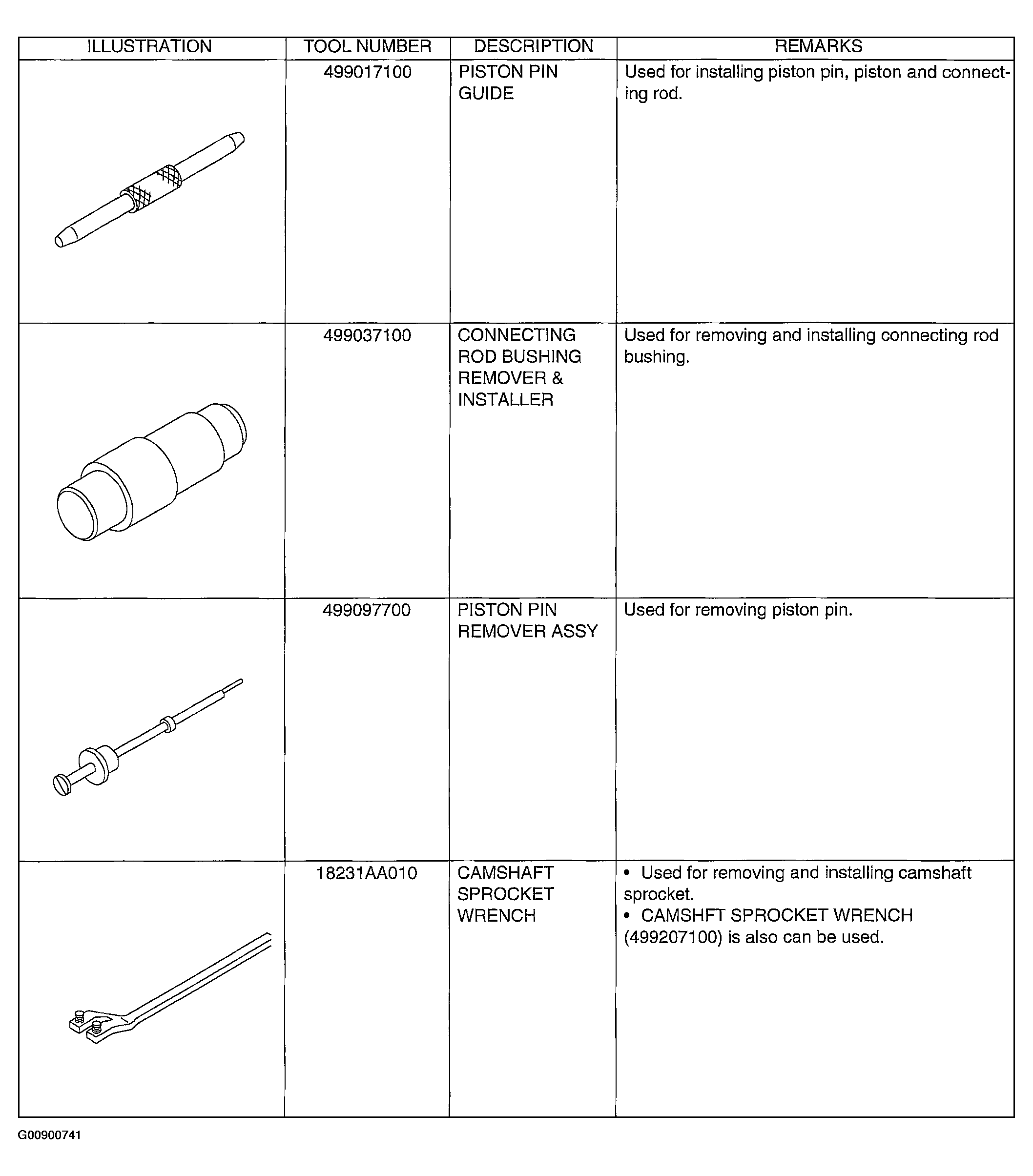

Fig 1: Special Tools Chart (1 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

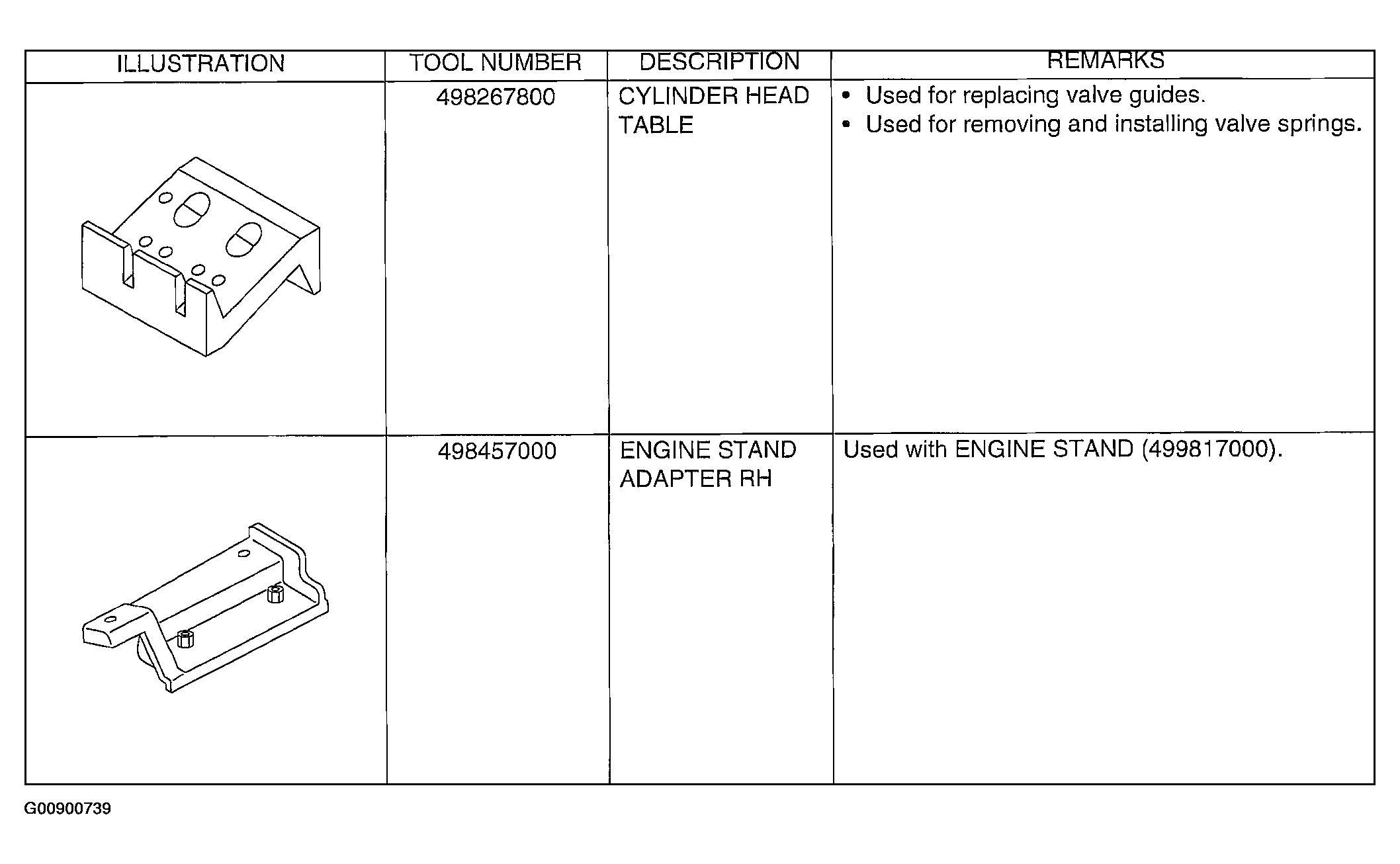

Fig 2: Special Tools Chart (2 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

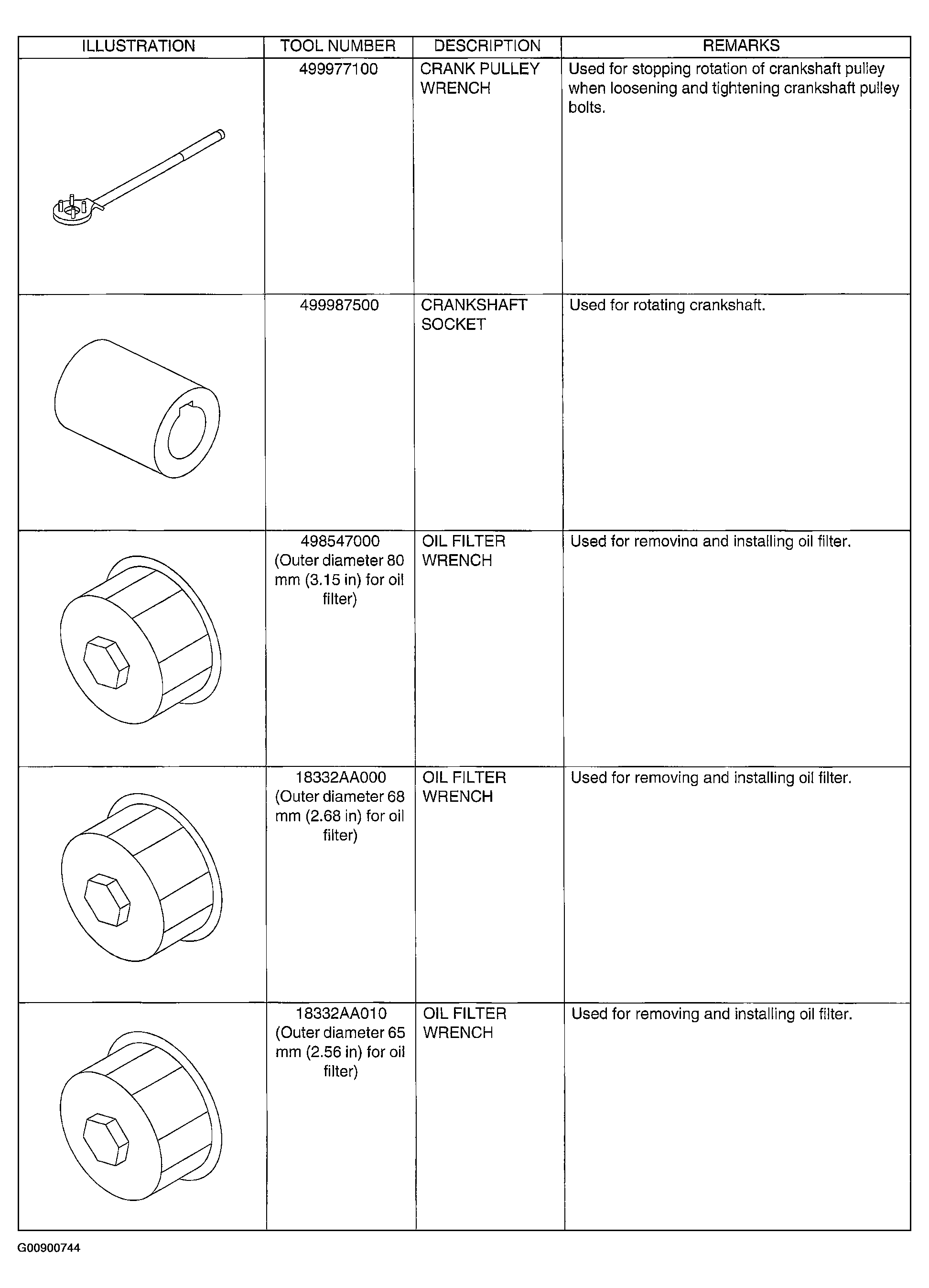

Fig 3: Special Tools Chart (3 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

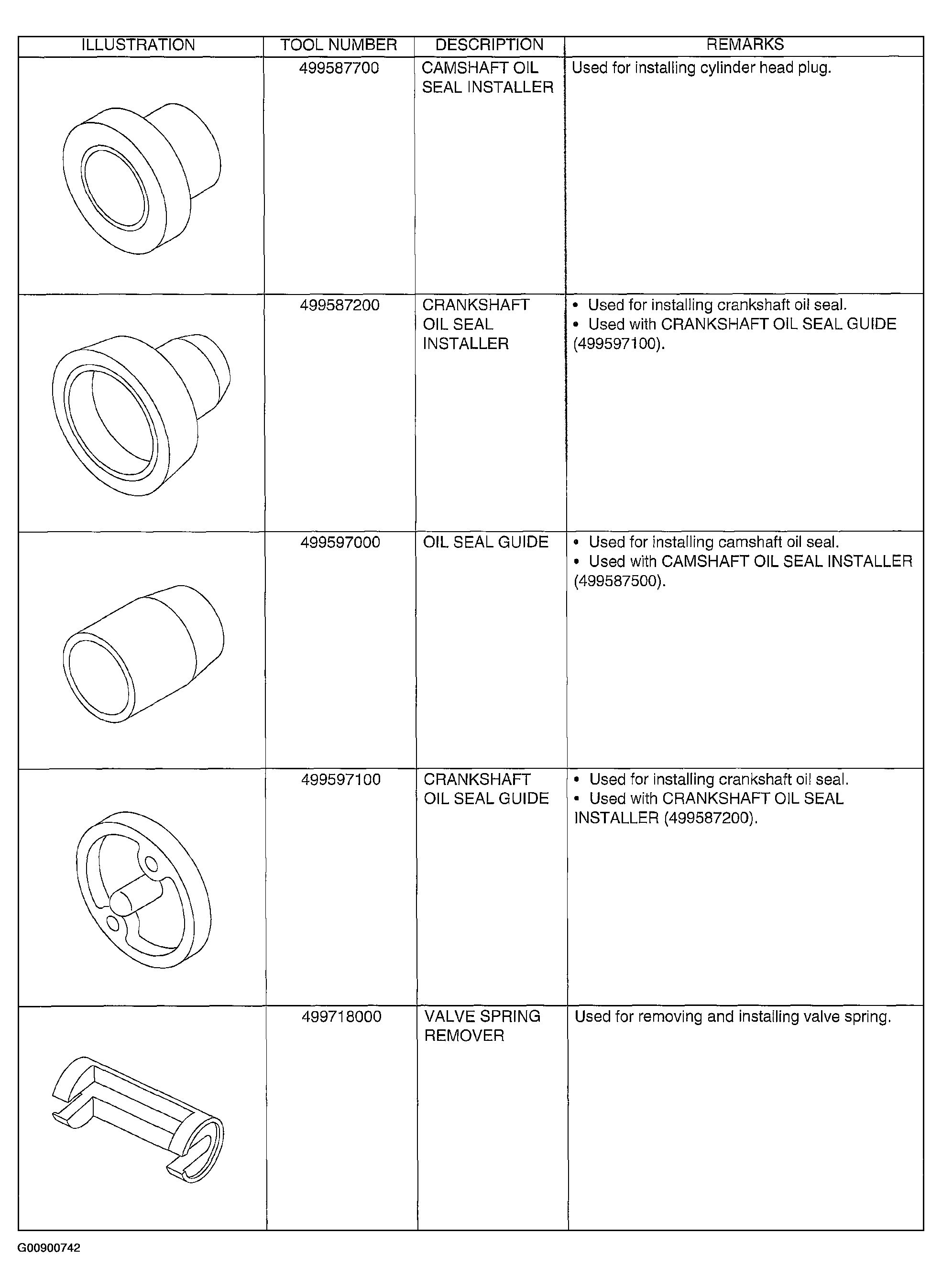

Fig 4: Special Tools Chart (4 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

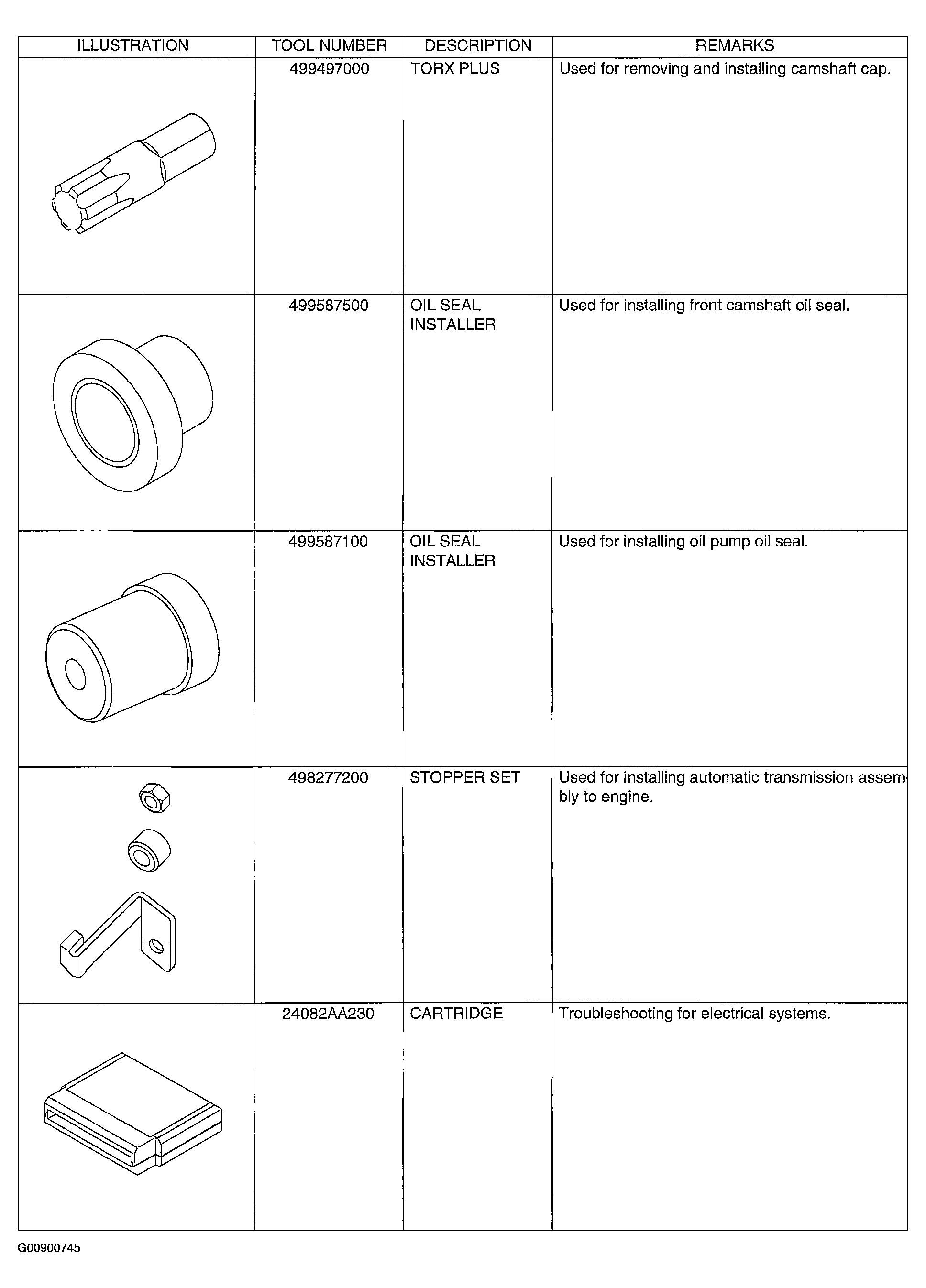

Fig 5: Special Tools Chart (5 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

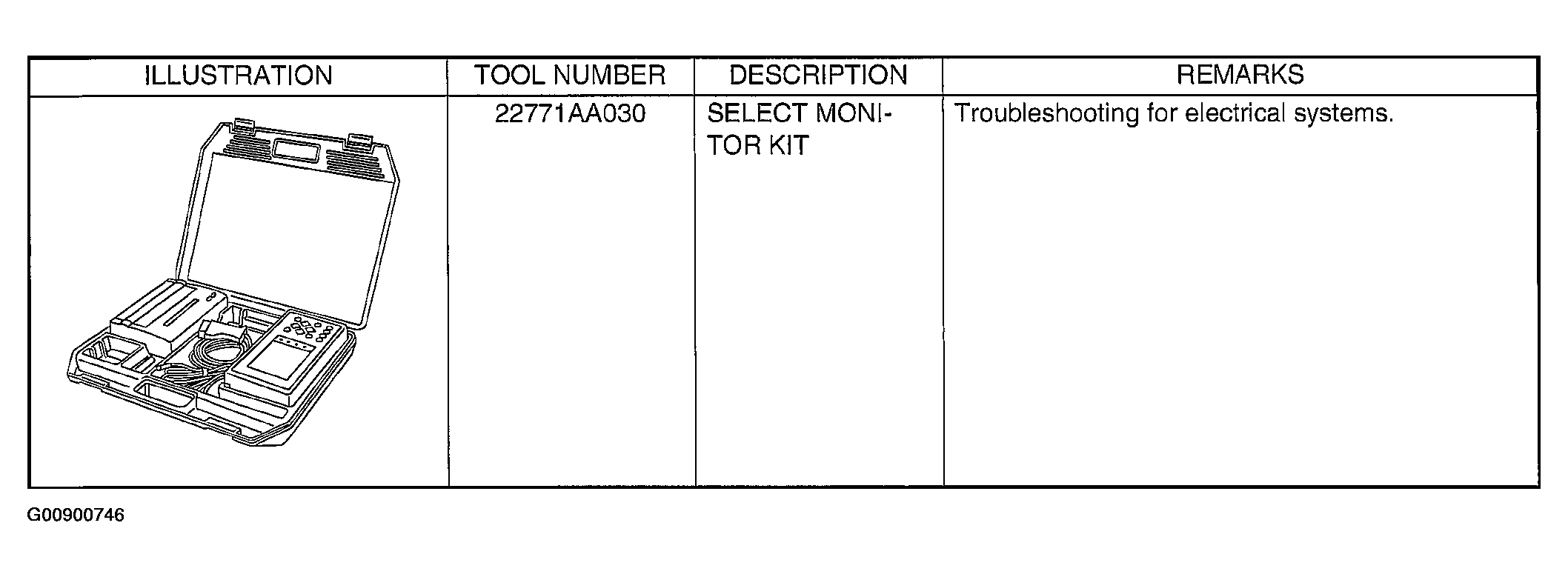

Fig 6: Special Tools Chart (6 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

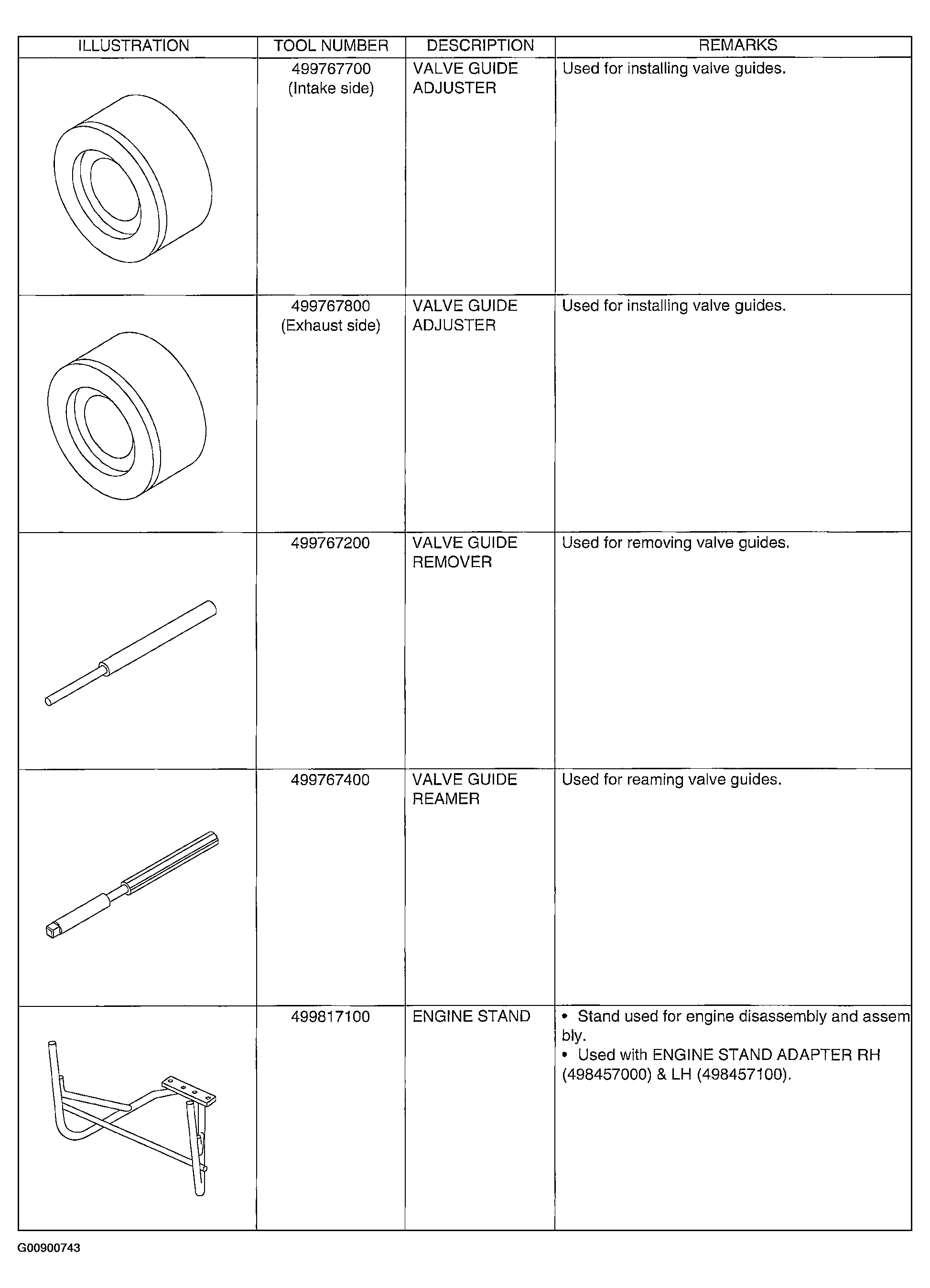

Fig 7: Special Tools Chart (7 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

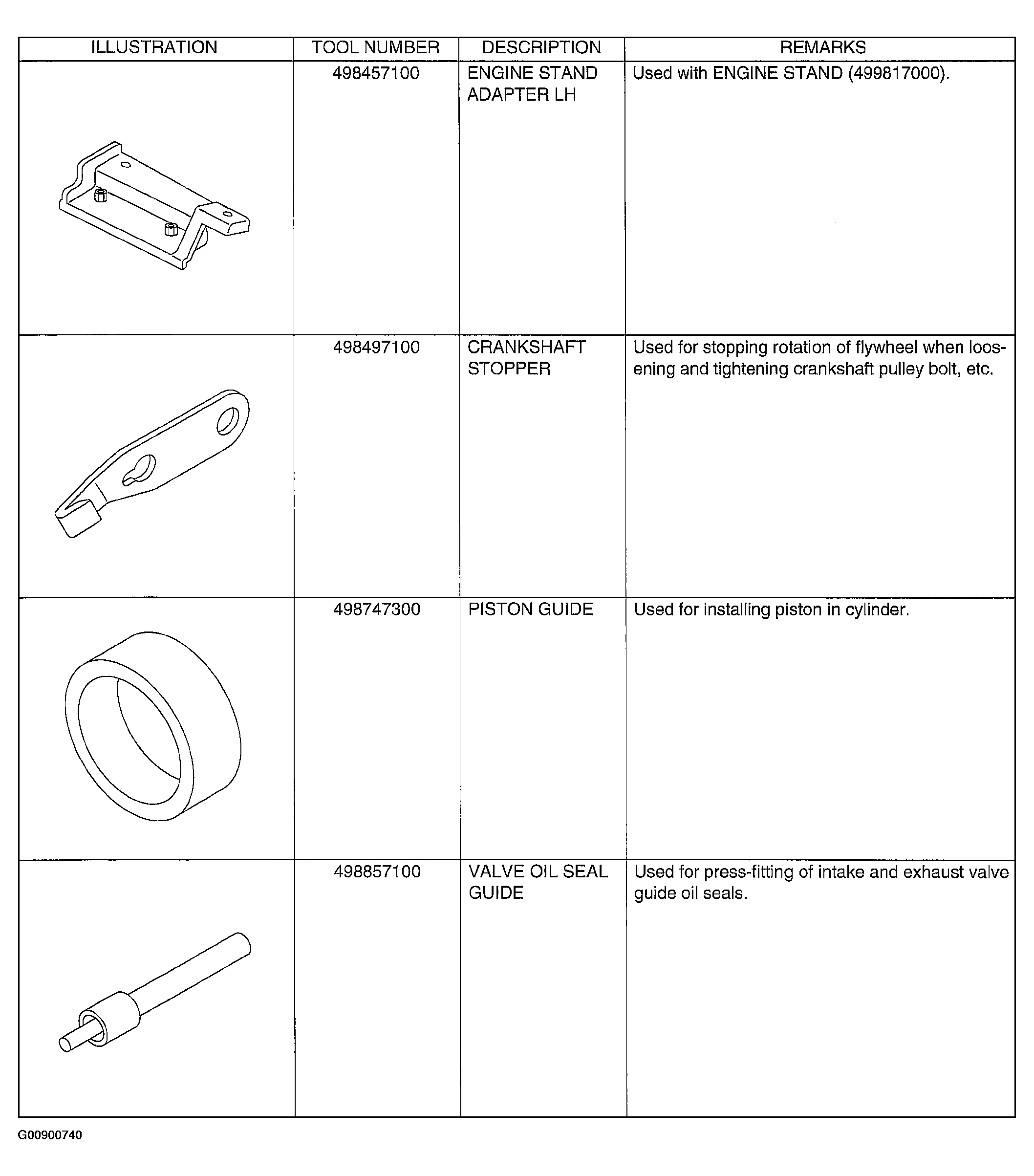

Fig 8: Special Tools Chart (8 Of 8)

Courtesy of SUBARU OF AMERICA, INC.
