Cylinder Head Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place cylinder head on ST.

    ST 498267800 CYLINDER HEAD TABLE

  2. Set ST on valve spring. Compress valve spring and remove the valve spring retainer key. Remove each valve and valve spring.

    ST 499718000 VALVE SPRING REMOVER

    NOTE:
    • Mark each valve to prevent confusion.
    • Use extreme care not to damage the lips of the intake valve oil seals and exhaust valve oil seals.

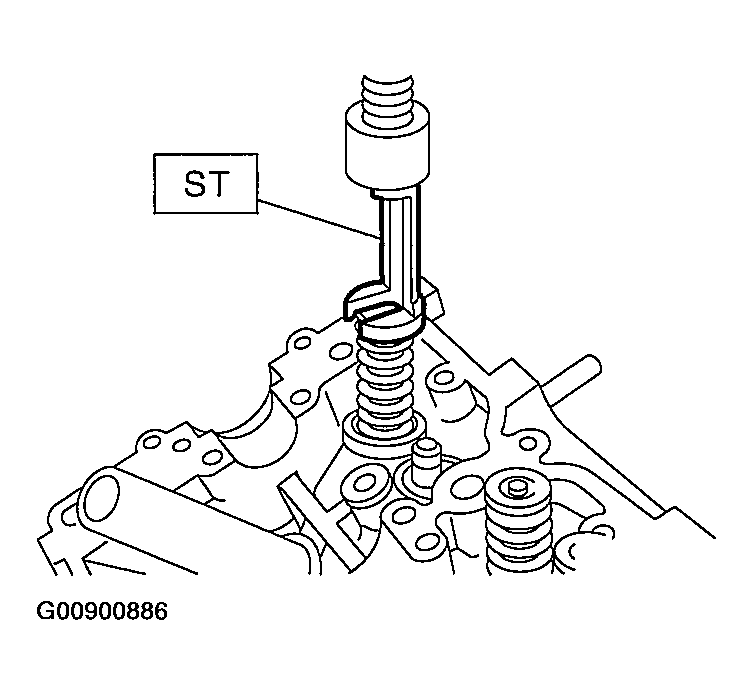

    Fig 1: Setting ST On Valve Spring
    G00900886Courtesy of SUBARU OF AMERICA, INC.
