Cylinder Block: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

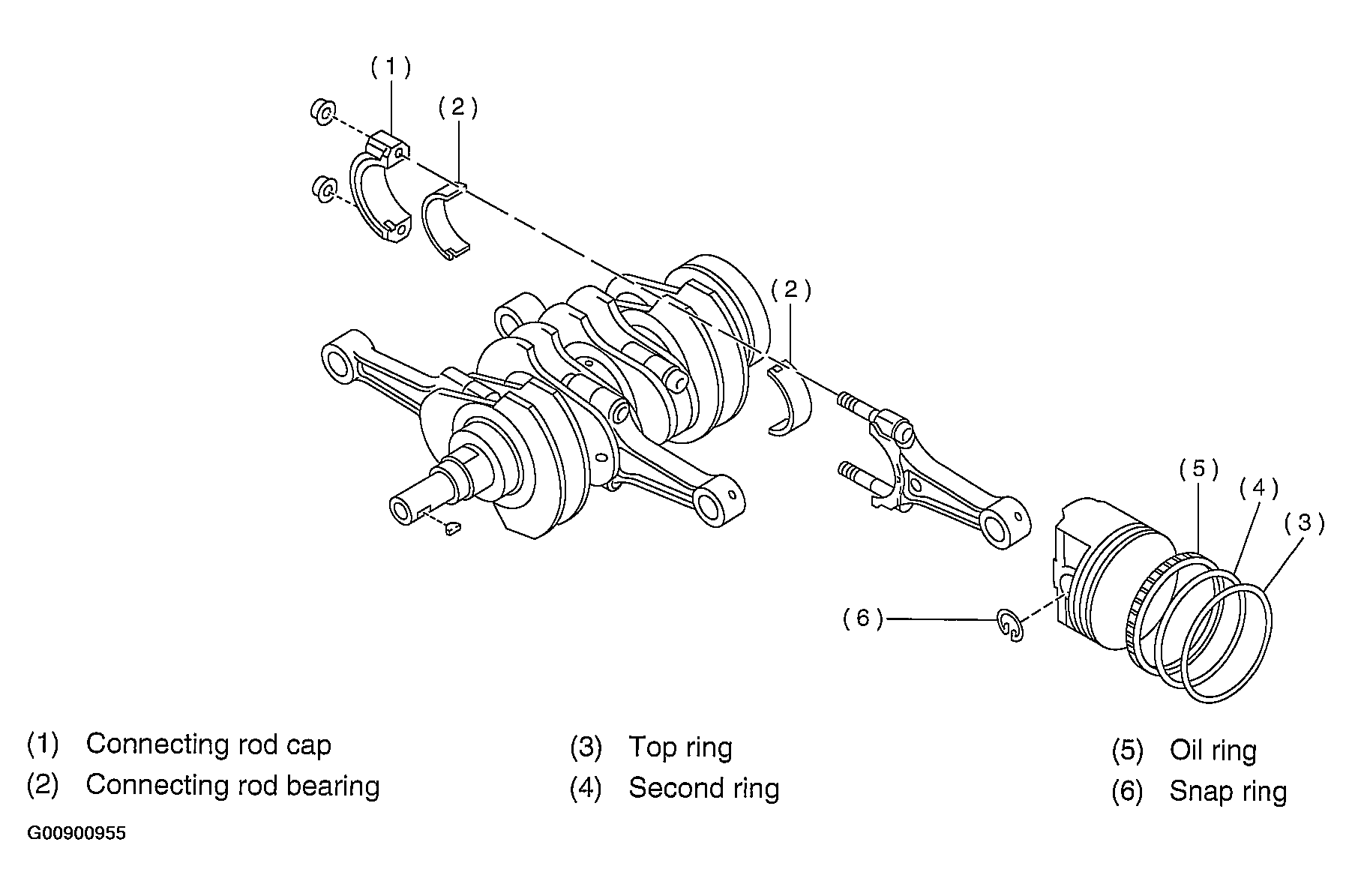

Fig 1: Disassembly View Of Connecting Rod
G00900955Courtesy of SUBARU OF AMERICA, INC.
  1. Remove connecting rod cap.
  2. Remove connecting rod bearing.
    NOTE: Arrange removed connecting rod, connecting rod cap and bearing in order to prevent confusion.
  3. Remove piston rings using the piston ring expander.
  4. Remove the oil ring by hand.
    NOTE: Arrange the removed piston rings in good order to prevent confusion.
  5. Remove snap ring.
