Belt Cover: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install front belt cover.
1. Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)
Install belt cover (LH).
1. Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)

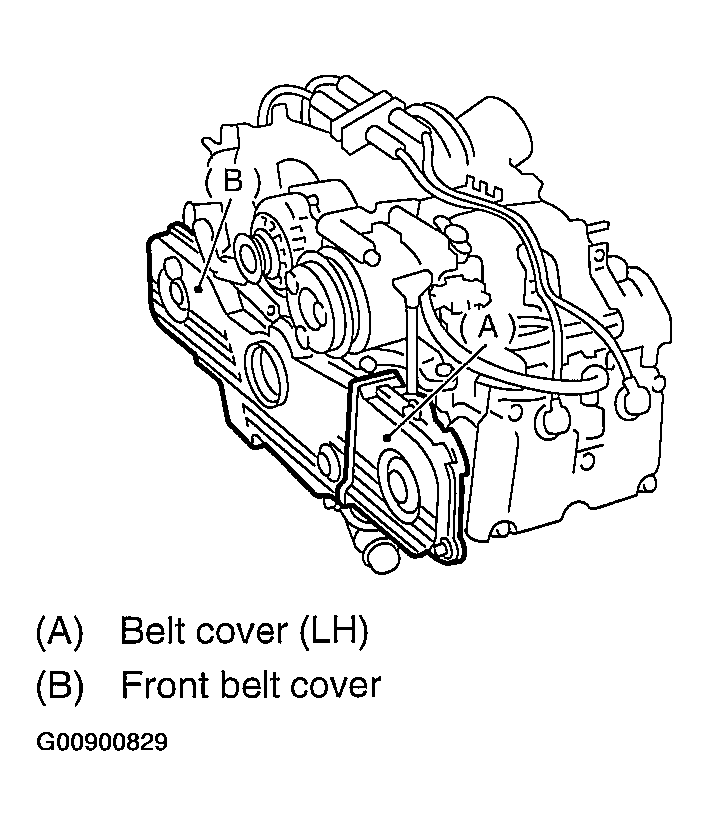

Fig 1: Installing Belt Cover (LH)
Courtesy of SUBARU OF AMERICA, INC.
Install crankshaft pulley. Refer to INSTALLATION , CRANKSHAFT PULLEY.
Install V-belt. Refer to INSTALLATION , V-BELT.
