Heater Unit

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

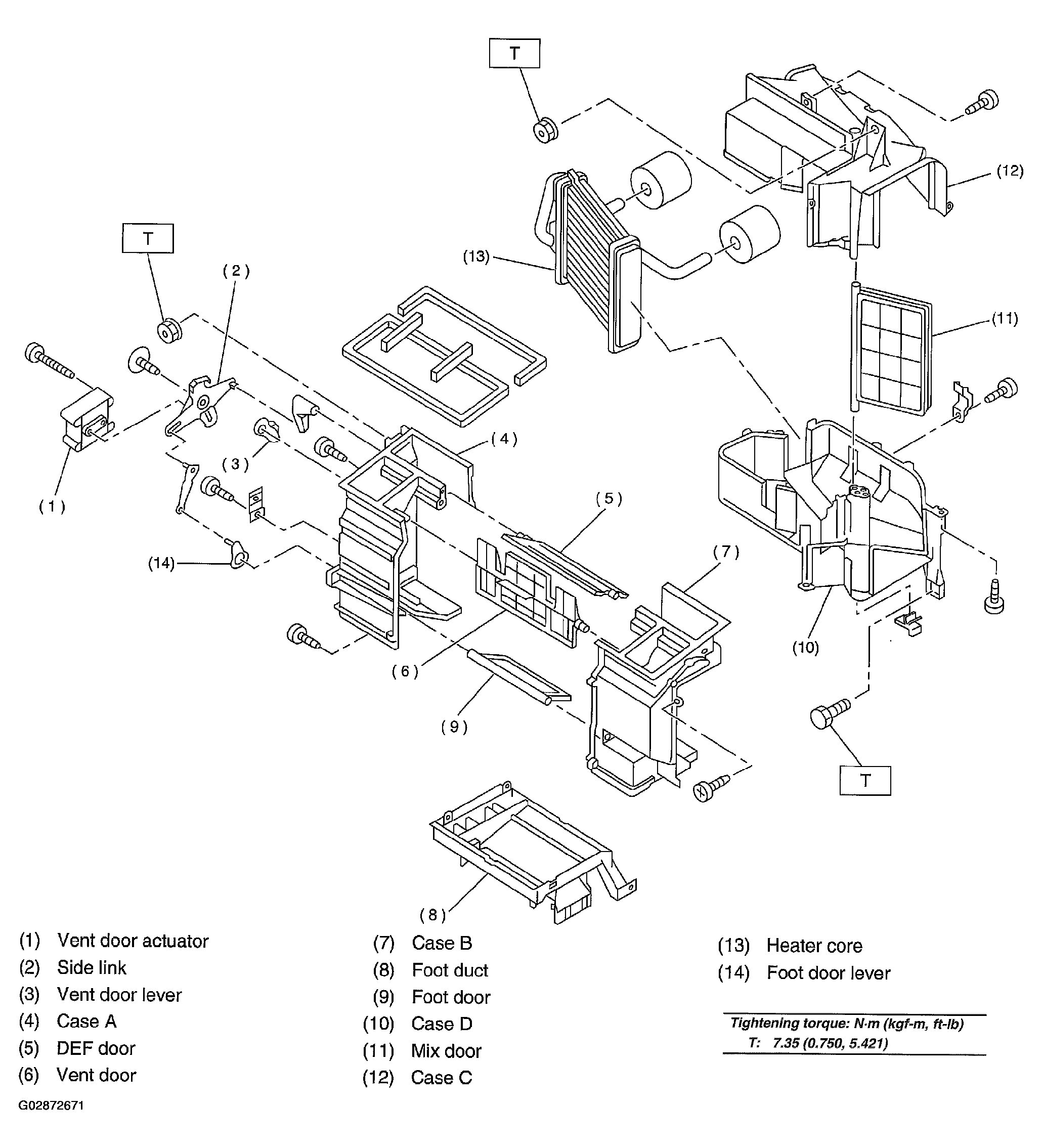

Fig 1: Exploded View Of Heater Unit
G02872671Courtesy of SUBARU OF AMERICA, INC.
