Section 158 (Automatic HVAC - Diagnostics): General Description: Inspection: Battery

WARNING: This page is about a different car, the 2003 Subaru Outback and 2003 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure battery voltage and specific gravity of electrolyte.
    1. Standard voltage:  12 V
    2. Specific gravity:  Above 1.260
  2. Check the condition of the fuses for A/C, heater and other fuses.

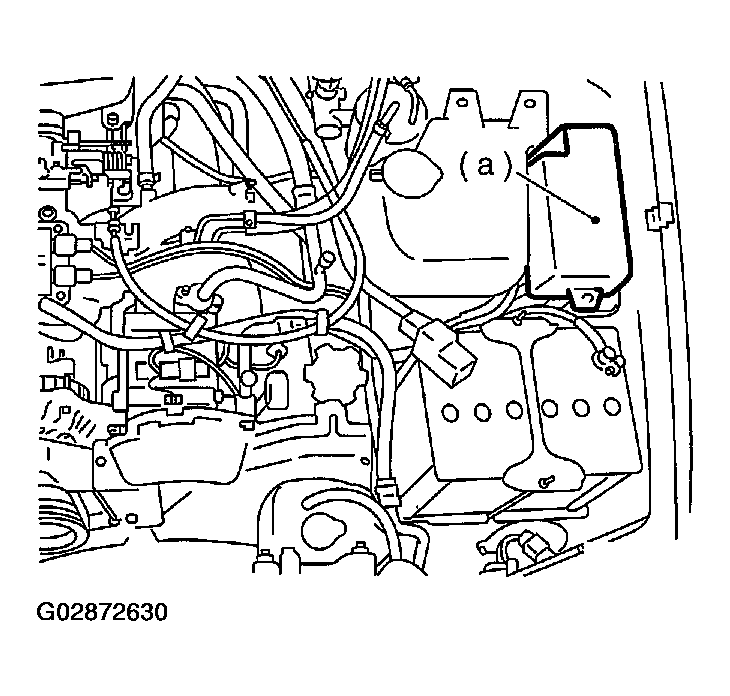

    Fig 1: Checking Condition Of Fuses
    G02872630Courtesy of SUBARU OF AMERICA, INC.
  3. Check the condition of the harnesses and harness connectors connection.
