Reduction Driven Gear: Disassembly

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove snap ring from reduction driven gear.
    Fig 1: Removing Snap Ring From Reduction Driven Gear
    G02875934Courtesy of SUBARU OF AMERICA, INC.
  2. Using ST, remove ball bearing from reduction driven gear.
    1. ST 498077600 REMOVER

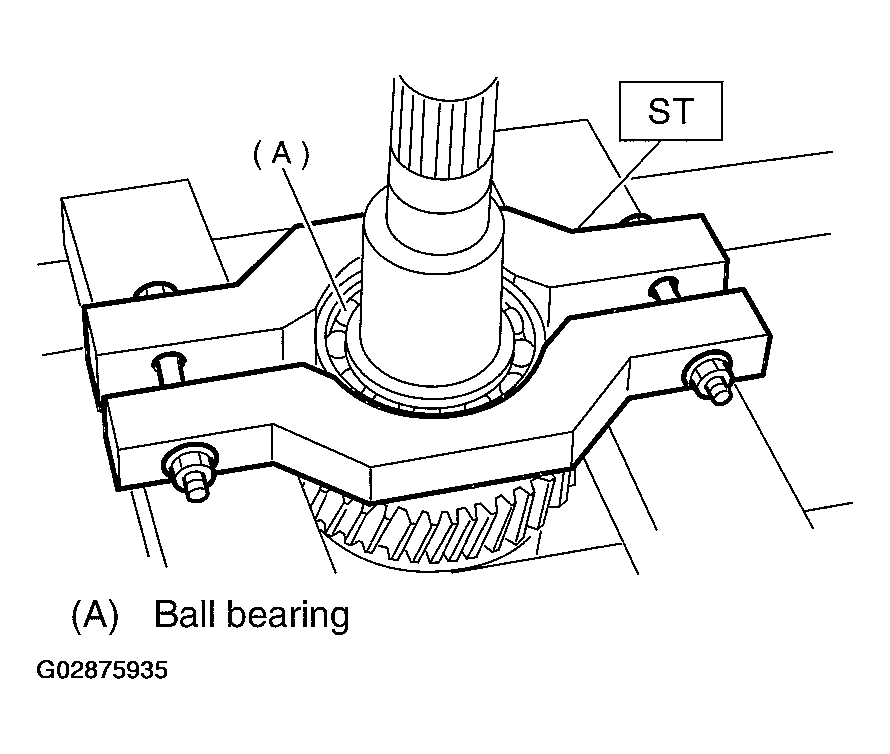

    Fig 2: Removing Ball Bearing From Reduction Driven Gear
    G02875935Courtesy of SUBARU OF AMERICA, INC.
