Reduction Drive Gear: Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reduction drive gear assembly.
    NOTE: Insert it fully into position until the bearing shoulder bottoms.

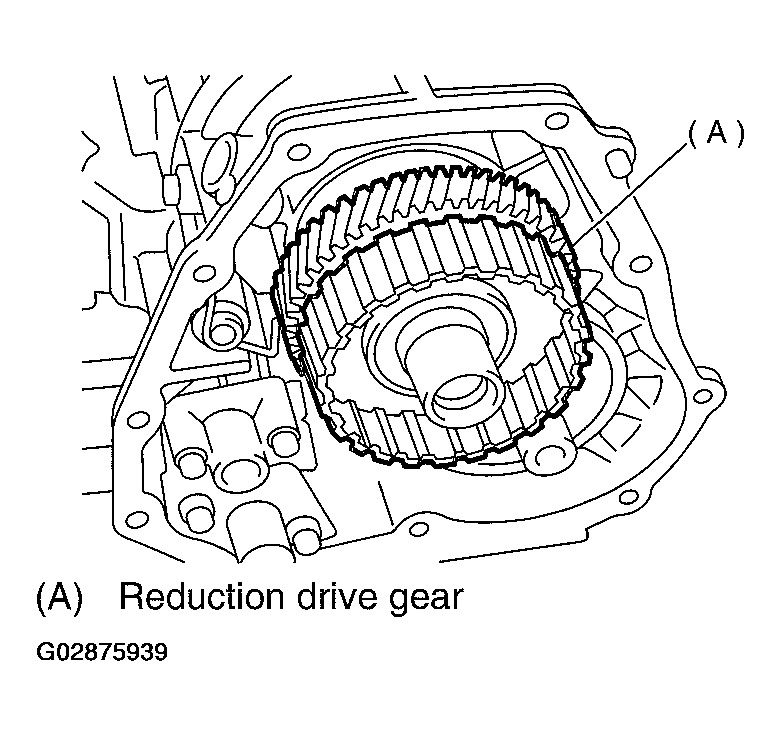

    Fig 1: Installing Reduction Drive Gear Assembly
    G02875939Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction driven gear. < Ref. to INSTALLATION , Reduction Driven Gear.>
  3. Combine the transmission case with the extension case, and install rear vehicle speed sensor.

    < Ref. to INSTALLATION , Extension Case.>

  4. Install the transmission assembly to the vehicle.

    < Ref. to INSTALLATION , Automatic Transmission Assembly.>
