Center Differential Carrier: Assembly

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thrust washer onto the intermediate shaft.
  2. Install thrust bearing onto the intermediate shaft.
  3. Install the pinion gears and washers.
  4. Insert the shaft into the center differential assembly.
  5. Install the snap ring.
  6. Using a press, install a new ball bearing into the center differential assembly.
    1. ST 498077000 Remover

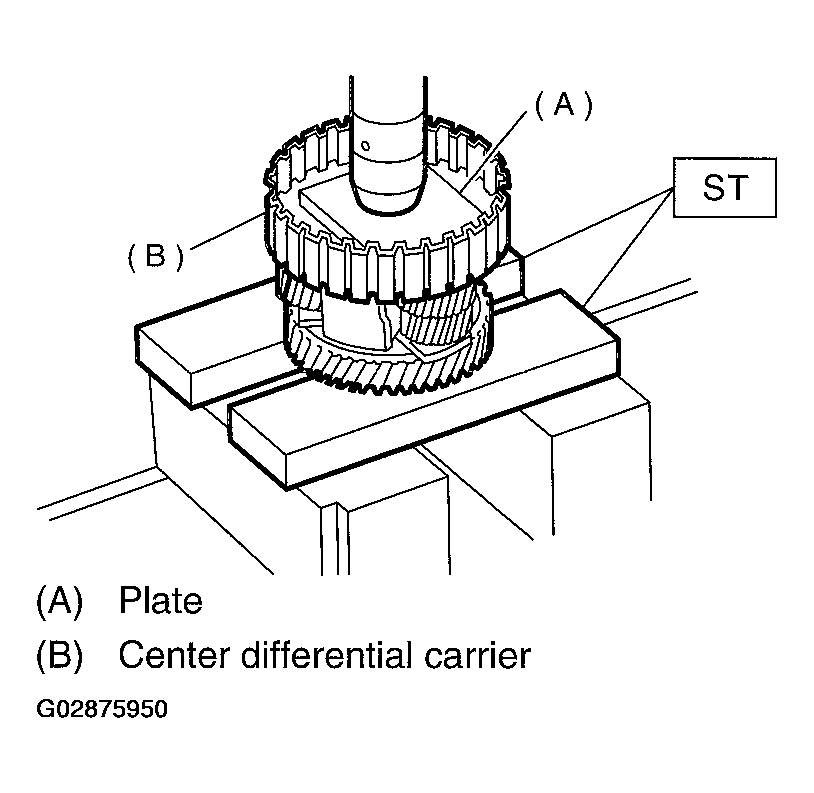

    Fig 1: Installing New Ball Bearing Into Center Differential Assembly
    G02875950Courtesy of SUBARU OF AMERICA, INC.
  7. Apply Vaseline onto the seal ring outer surface and shaft grooves.
  8. Install new seal rings.
