2-4 Brake: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Extract the torque converter clutch assembly.

    < Ref. to REMOVAL , Torque Converter Clutch Assembly.>

  3. Remove the input shaft.

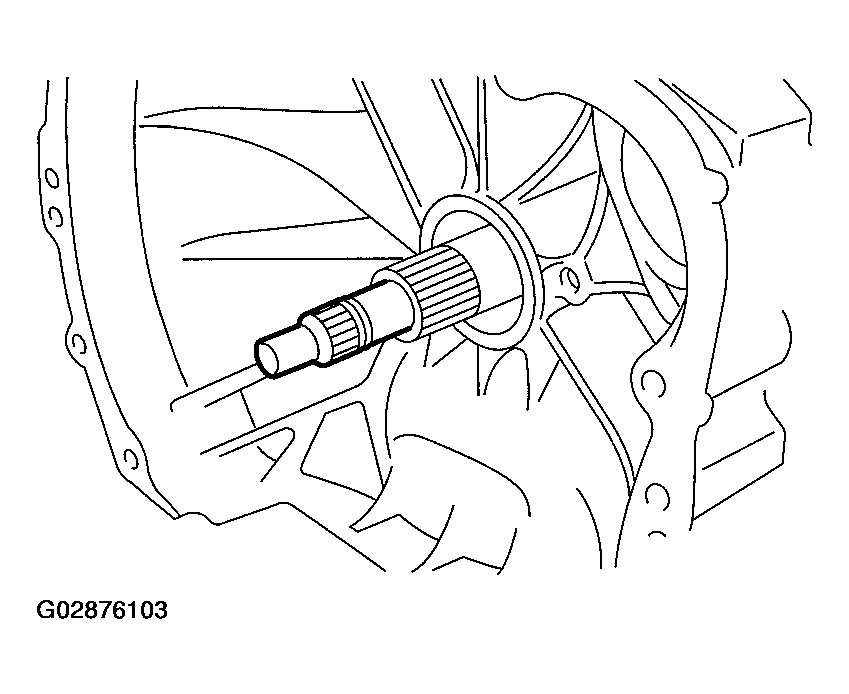

    Fig 1: Removing Input Shaft
    G02876103Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the air breather hose. < Ref. to REMOVAL , Air Breather Hose.>
  5. Lift-up lever behind the transmission harness connector and disconnect it from stay.
  6. Disconnect inhibitor switch connector from stay.
  7. Remove the oil charger pipe. < Ref. to REMOVAL , Oil Charger Pipe.>
  8. Remove the oil cooler inlet and outlet pipes with washers. < Ref. to REMOVAL , ATF Cooler Pipe and Hose.>
  9. Remove rear vehicle speed sensor, and separate the transmission case and extension case. < Ref. to REMOVAL , Extension Case.>
  10. Remove the reduction drive gear. (MPT model)

    < Ref. to REMOVAL , Reduction Drive Gear.>

  11. Remove the center differential carrier. (VTD model) < Ref. to REMOVAL , Center Differential Carrier.>
  12. Remove reduction driven gear.

    < Ref. to REMOVAL , Reduction Driven Gear.>

  13. Separation of torque converter clutch case and transmission case < Ref. to REMOVAL , Torque Converter Clutch Case.>
  14. Remove the oil pan and control valve body.

    < Ref. to REMOVAL , Control Valve Body.>

  15. Remove the oil pump housing. < Ref. to REMOVAL , Oil Pump.>
  16. Remove 2-4 brake seal.

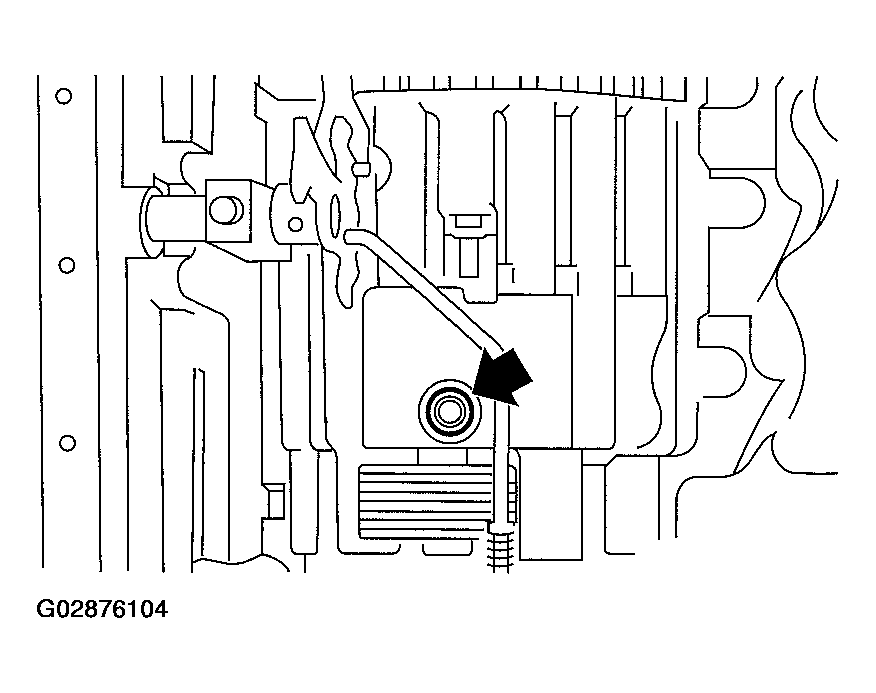

    Fig 2: Removing 2-4 Brake Seal
    G02876104Courtesy of SUBARU OF AMERICA, INC.
  17. Take out the high clutch and reverse clutch assembly. < Ref. to REMOVAL , High Clutch and Reverse Clutch.>
  18. Take out the thrust needle bearing, planetary gear assembly and the low clutch assembly. < Ref. to REMOVAL , Planetary Gear and Low Clutch.>
  19. Remove snap ring.

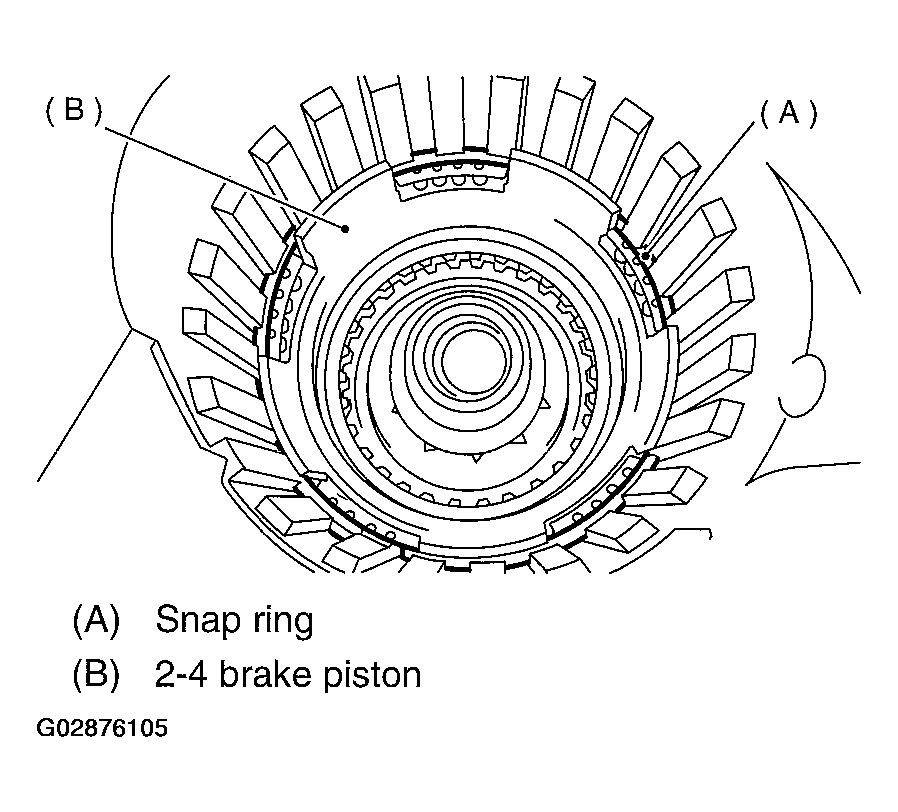

    Fig 3: Removing Snap Ring
    G02876105Courtesy of SUBARU OF AMERICA, INC.
  20. Take out 2-4 brake return spring.

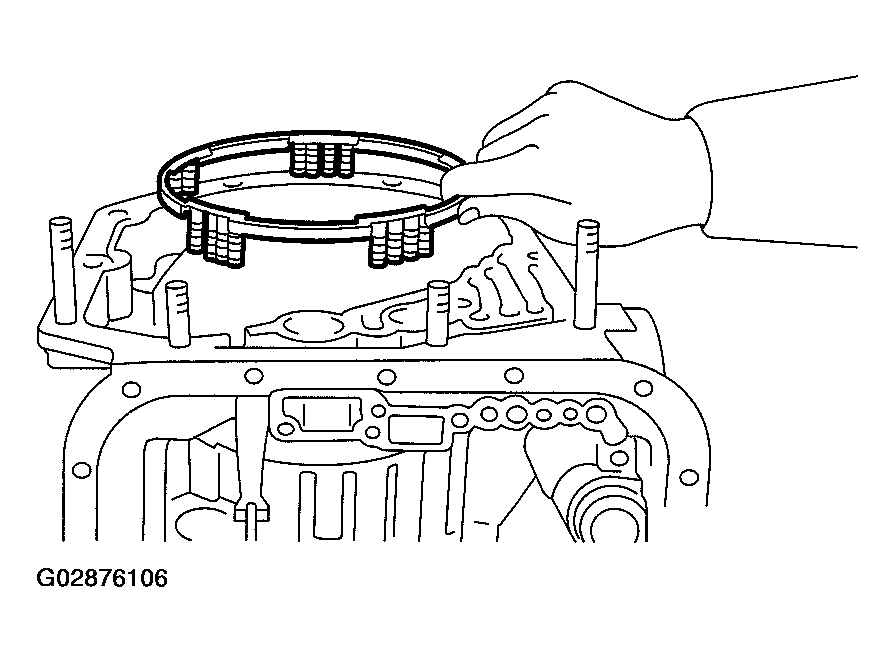

    Fig 4: Removing 2-4 Brake Return Spring
    G02876106Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the 2-4 brake piston and piston retainer without damaging.

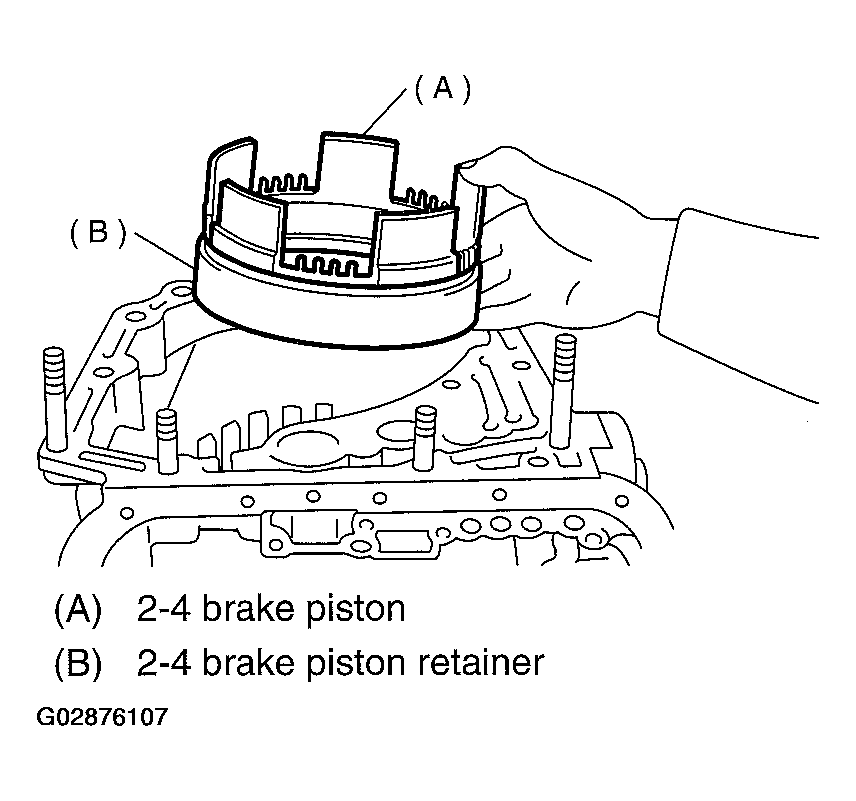

    Fig 5: Removing 2-4 Brake Piston & Piston Retainer
    G02876107Courtesy of SUBARU OF AMERICA, INC.
  22. Separate 2-4 brake piston and piston retainer.
    Fig 6: Separating 2-4 Brake Piston & Piston Retainer
    G02876108Courtesy of SUBARU OF AMERICA, INC.
