Oil Pump: Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal. Do the following:

Apply fluid gasket to matching surfaces of oil pump.
Fluid gasket:
1. Part No. 004403007
2. THREE BOND 1215 or equivalent
Replace O-ring (A) with a new one.

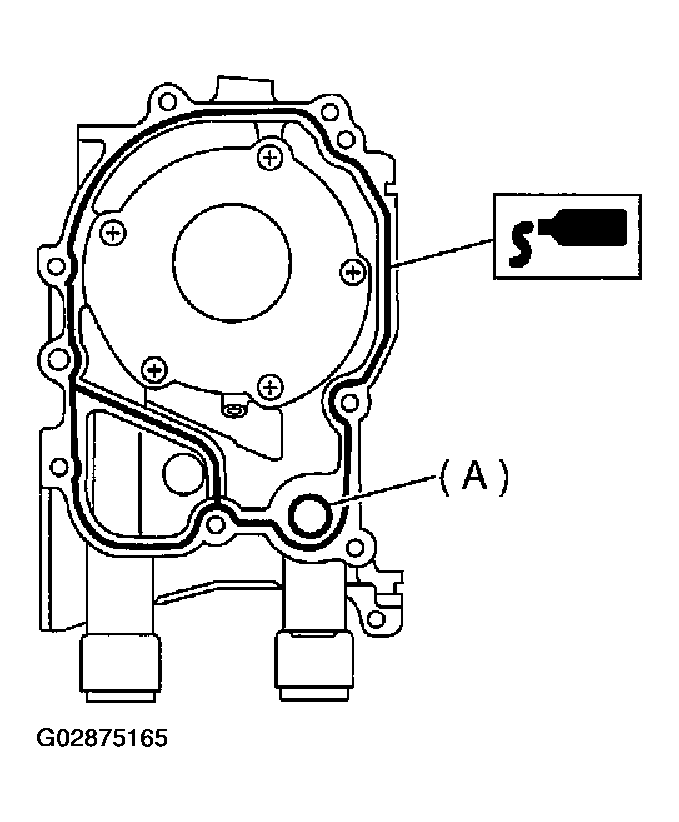

Fig 1: Replace O-Ring (A) With A New One
Courtesy of SUBARU OF AMERICA, INC.
Apply engine oil to the inside of the oil seal.

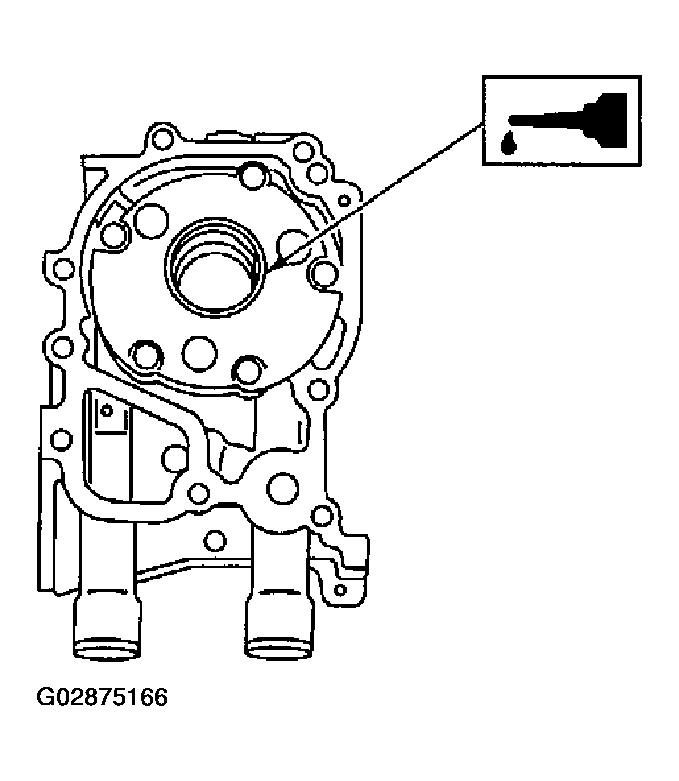

Fig 2: Applying Engine Oil Inside Of Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Be careful not to scratch oil seal when installing oil pump on cylinder block.
Position the oil pump, aligning the notched area with the crankshaft, and push the oil pump straight.
CAUTION: Make sure the oil seal lip is not folded.
Install oil pump.
1. Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

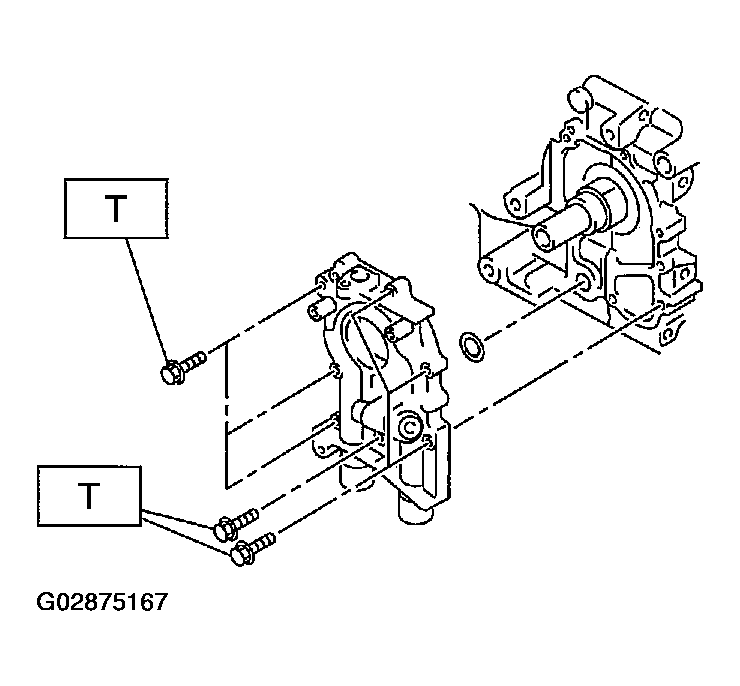

Fig 3: Installing Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
