Oil Pump: Assembly

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

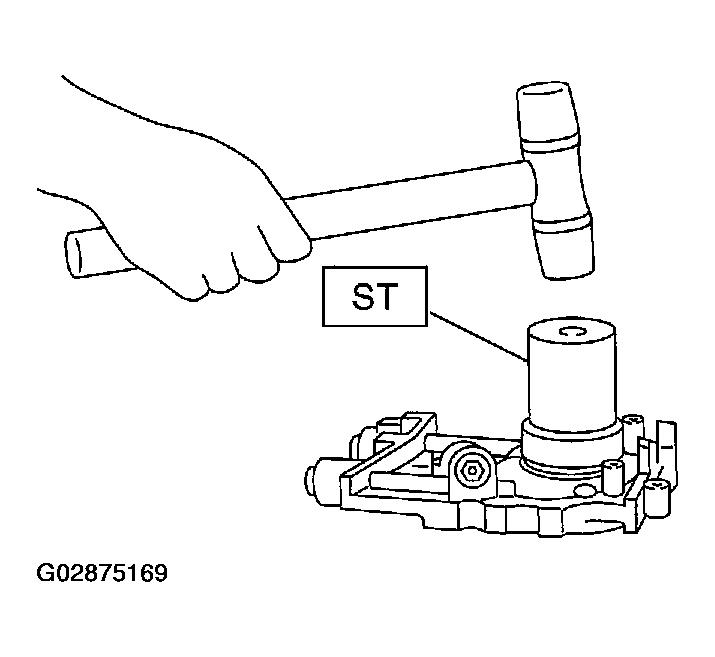

Install front oil seal by using ST.
1. ST 499587100 OIL SEAL INSTALLER
NOTE: Use a new oil seal.

Fig 1: Install Front Oil Seal Using ST
Courtesy of SUBARU OF AMERICA, INC.
Apply engine oil to inner and outer rotors.
Install inner and outer rotors in their original positions.
Install oil relief valve and relief valve spring.

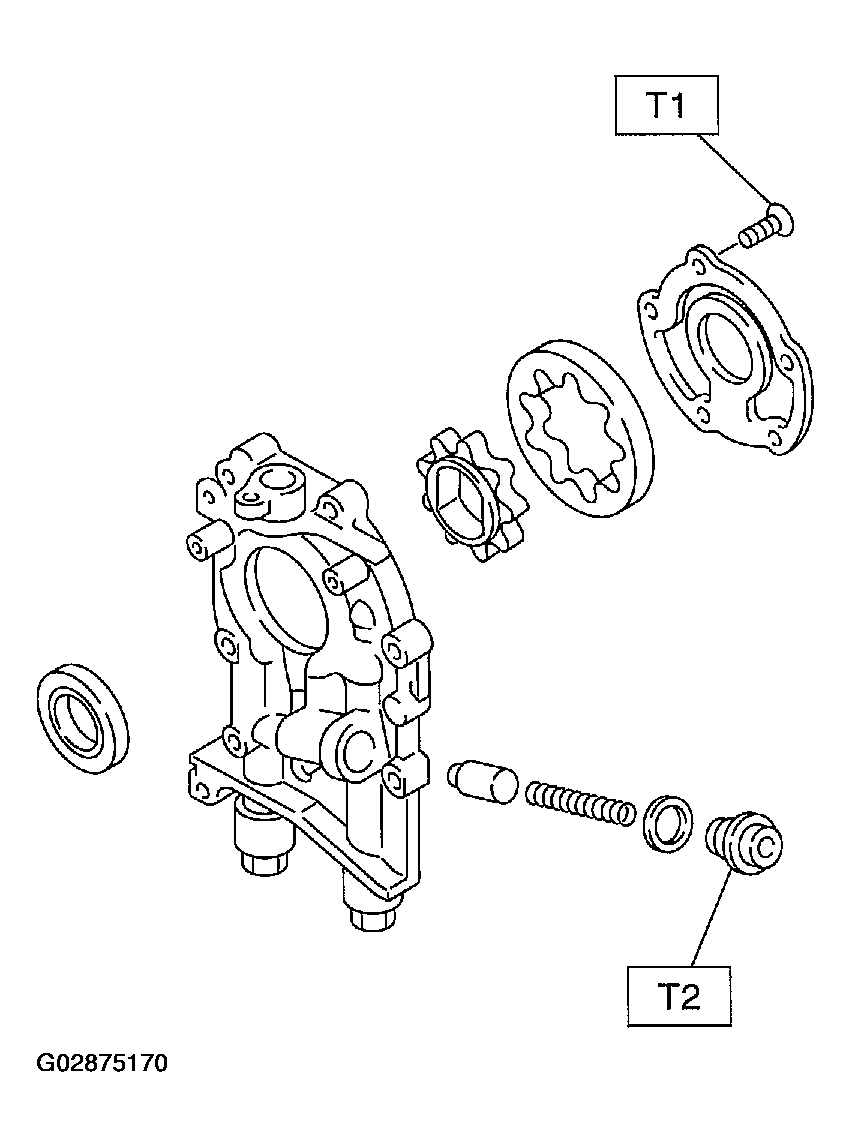

Install oil pump cover.

Tightening torque:

T1: 5 N.m (0.5 kgf-m, 3.6 ft-lb)
T2: 44 N.m (4.5 kgf-m, 33 ft-lb)

Fig 2: Installing Oil Pump Cover
Courtesy of SUBARU OF AMERICA, INC.
