Section 139 (Cooling (H4SO)): Radiator: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove under cover.

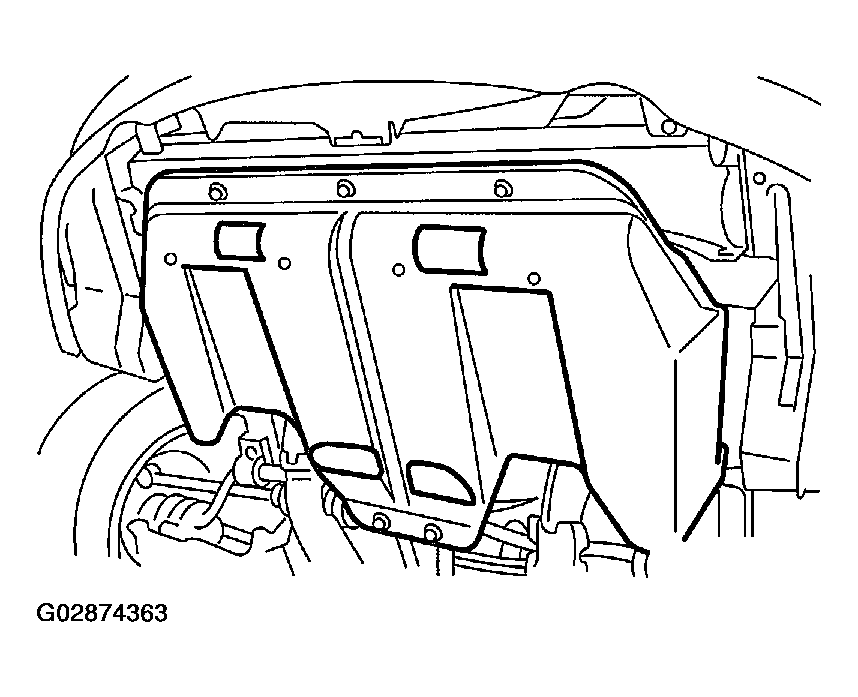

Fig 2: Removing Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Drain engine coolant completely. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.>
Disconnect connectors of radiator main fan (A) and sub fan (B) motor.

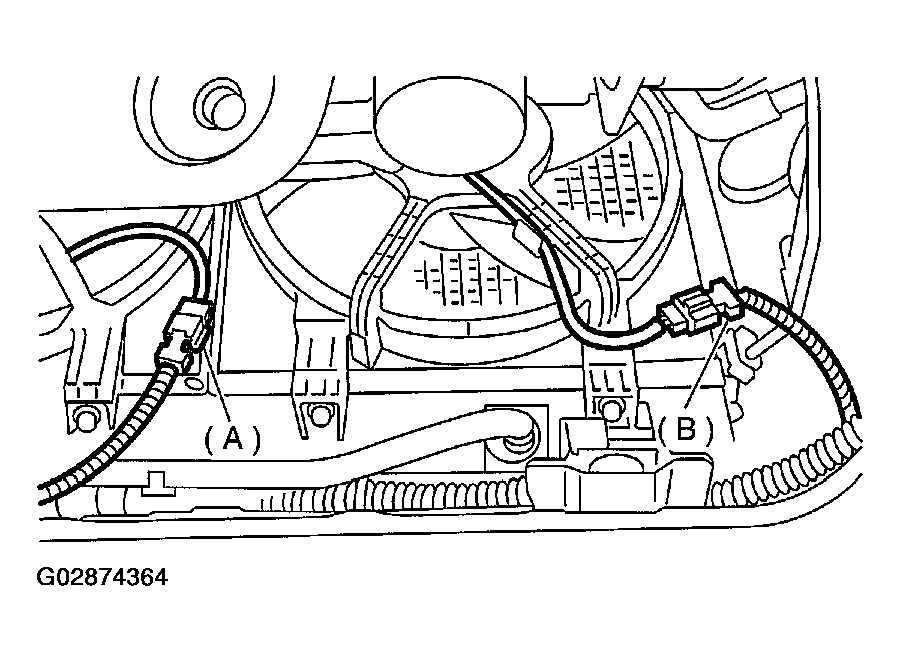

Fig 3: Disconnecting Connectors Of Radiator Main Fan & Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect radiator outlet hose from thermostat cover.

Fig 4: Disconnecting Radiator Outlet Hose From Thermostat Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ATF cooler hoses from radiator. (AT vehicles only)

Fig 5: Disconnecting ATF Cooler Hoses From Radiator (AT Vehicles Only)
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.

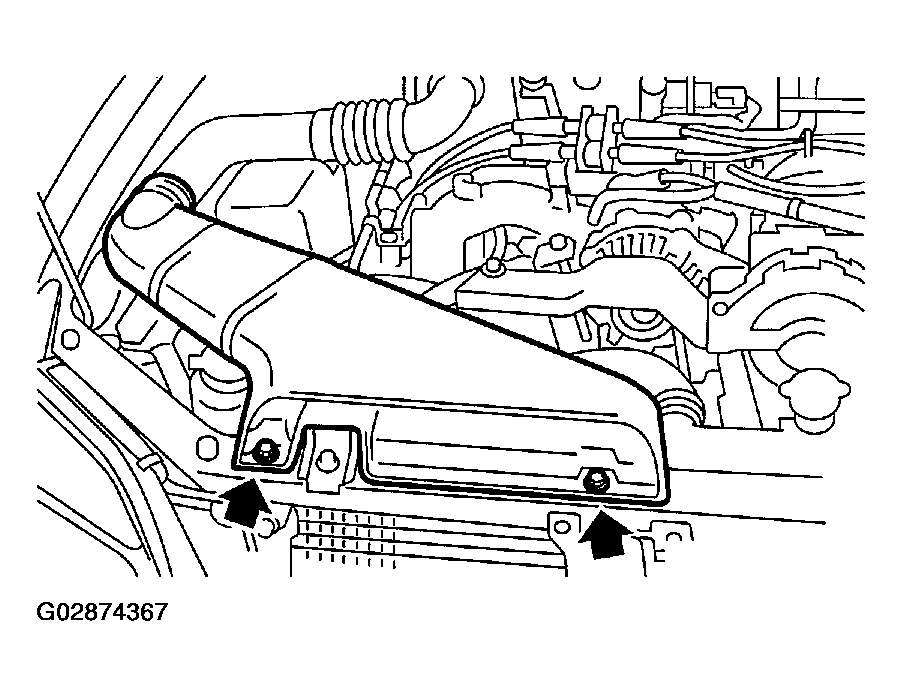

Remove air intake duct.

Fig 6: Removing Air Intake Duct
Courtesy of SUBARU OF AMERICA, INC.

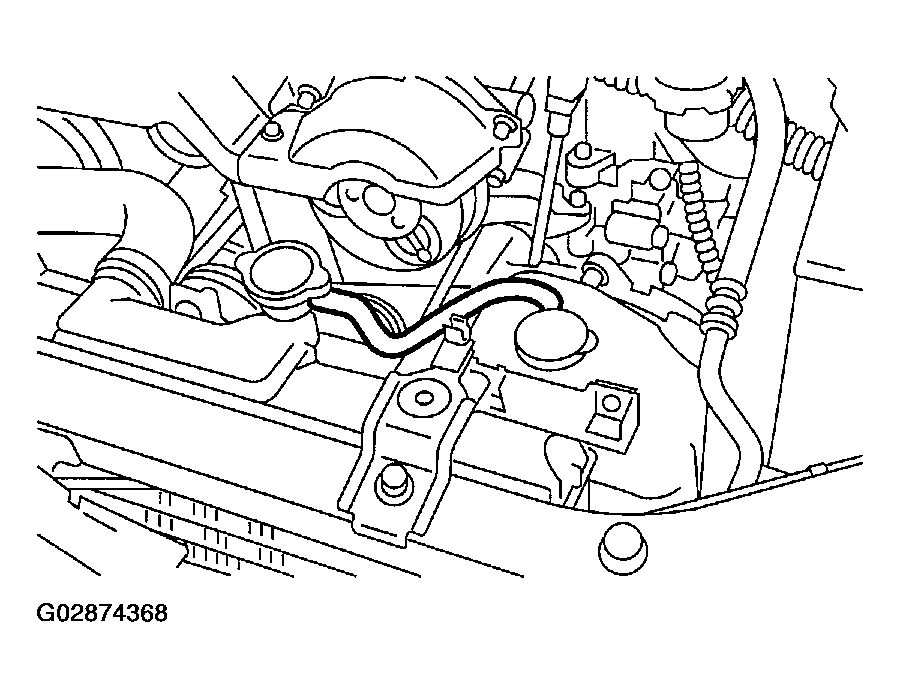

Disconnect overflow hose.

Fig 7: Disconnecting Overflow Hose
Courtesy of SUBARU OF AMERICA, INC.

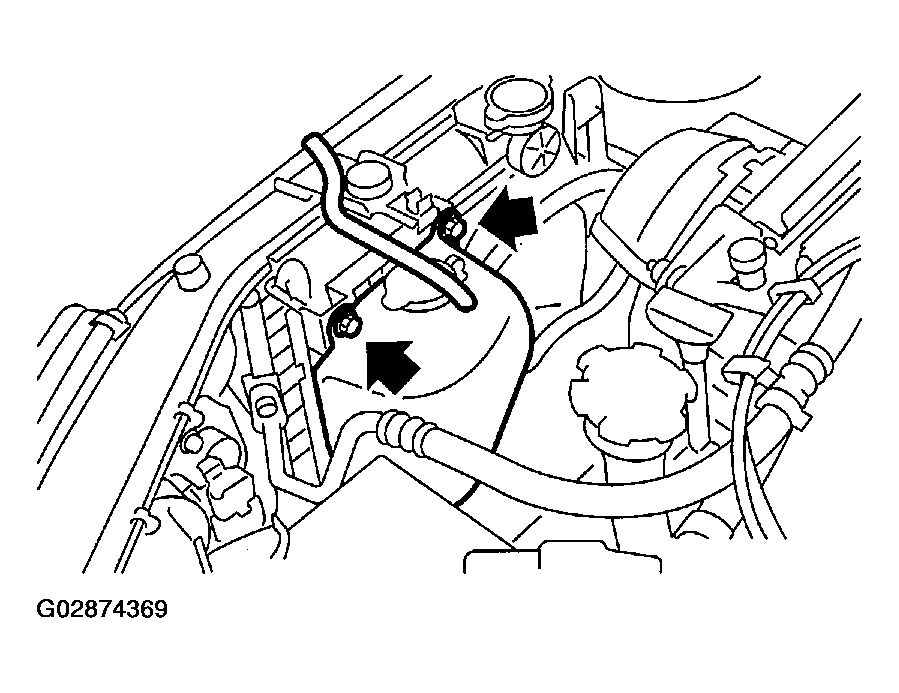

Remove reservoir tank.

Fig 8: Removing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.

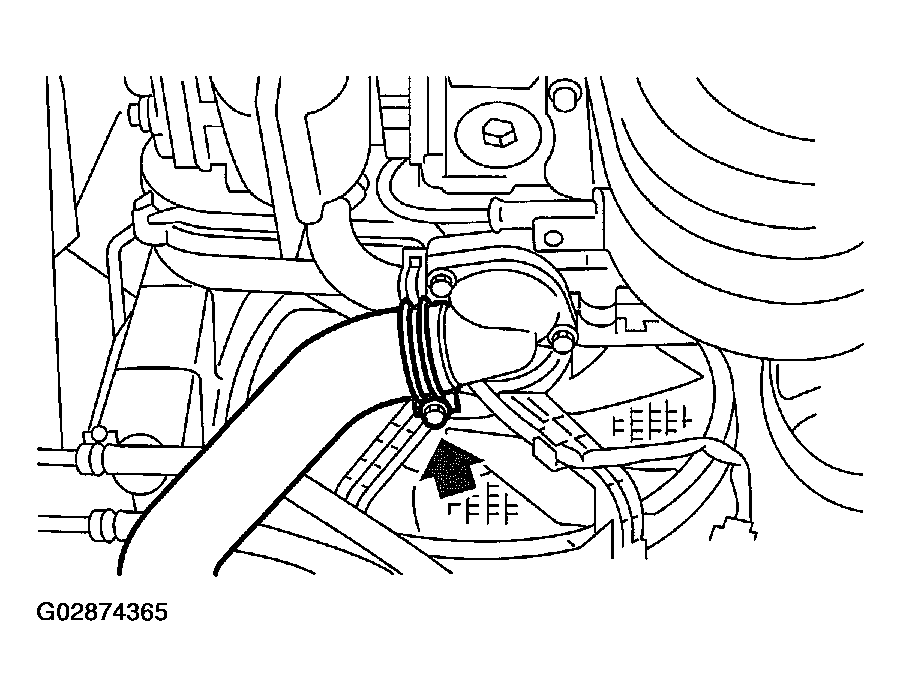

Disconnect radiator inlet hose from engine.

Fig 9: Disconnecting Radiator Inlet Hose From Engine
Courtesy of SUBARU OF AMERICA, INC.

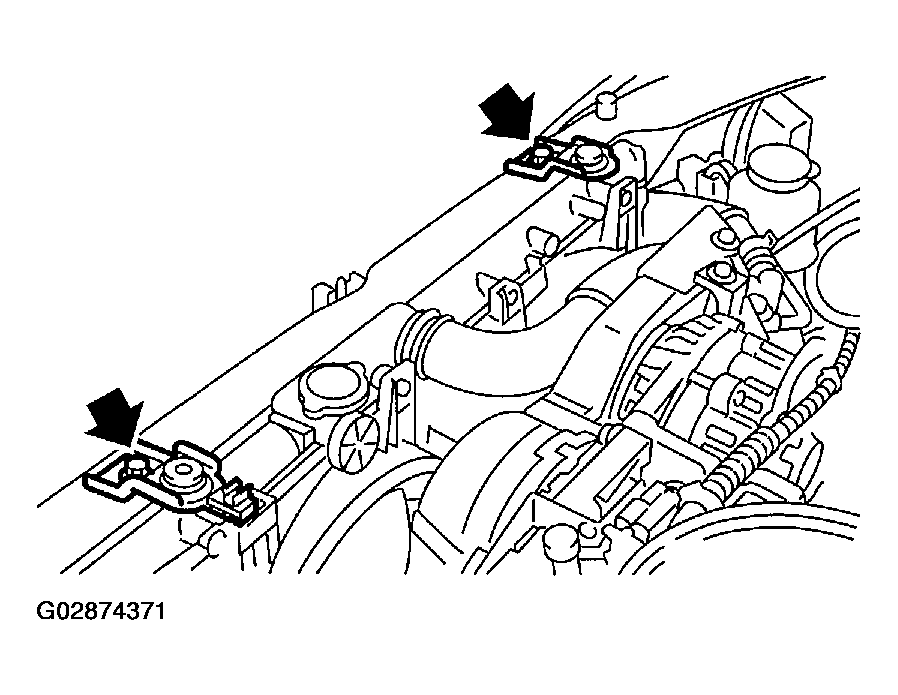

Remove radiator upper brackets.

Fig 10: Removing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.

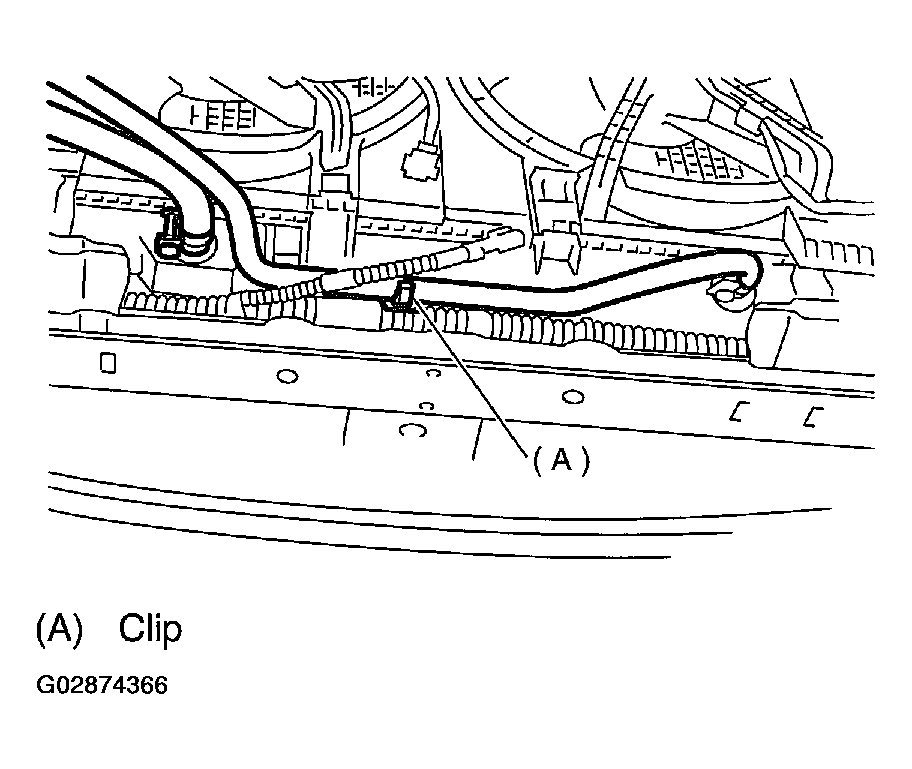

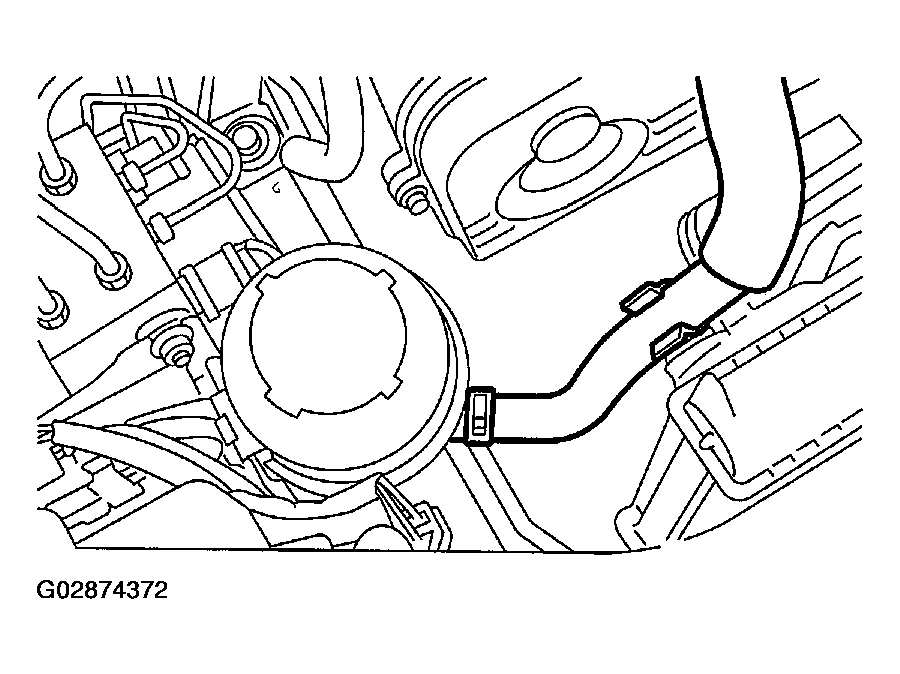

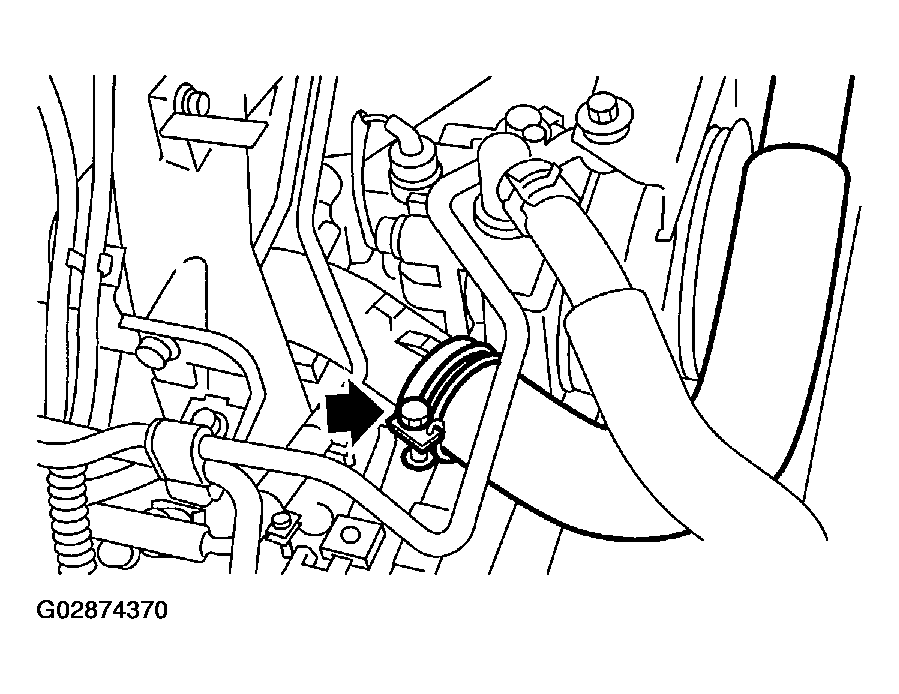

Detach power steering hose from the clip on the radiator.

Fig 11: Detaching Power Steering Hose From Clip On Radiator
Courtesy of SUBARU OF AMERICA, INC.
While slightly lifting radiator, slide it to left.

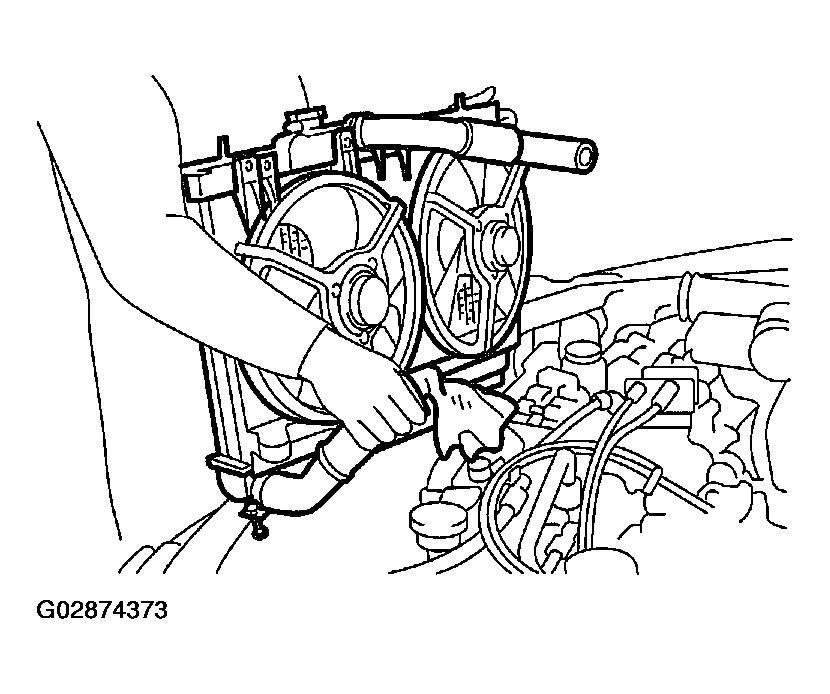

Lift radiator up and away from vehicle.

Fig 12: Lifting Radiator Away From Vehicle
Courtesy of SUBARU OF AMERICA, INC.
