Engine Noise: Inspection

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

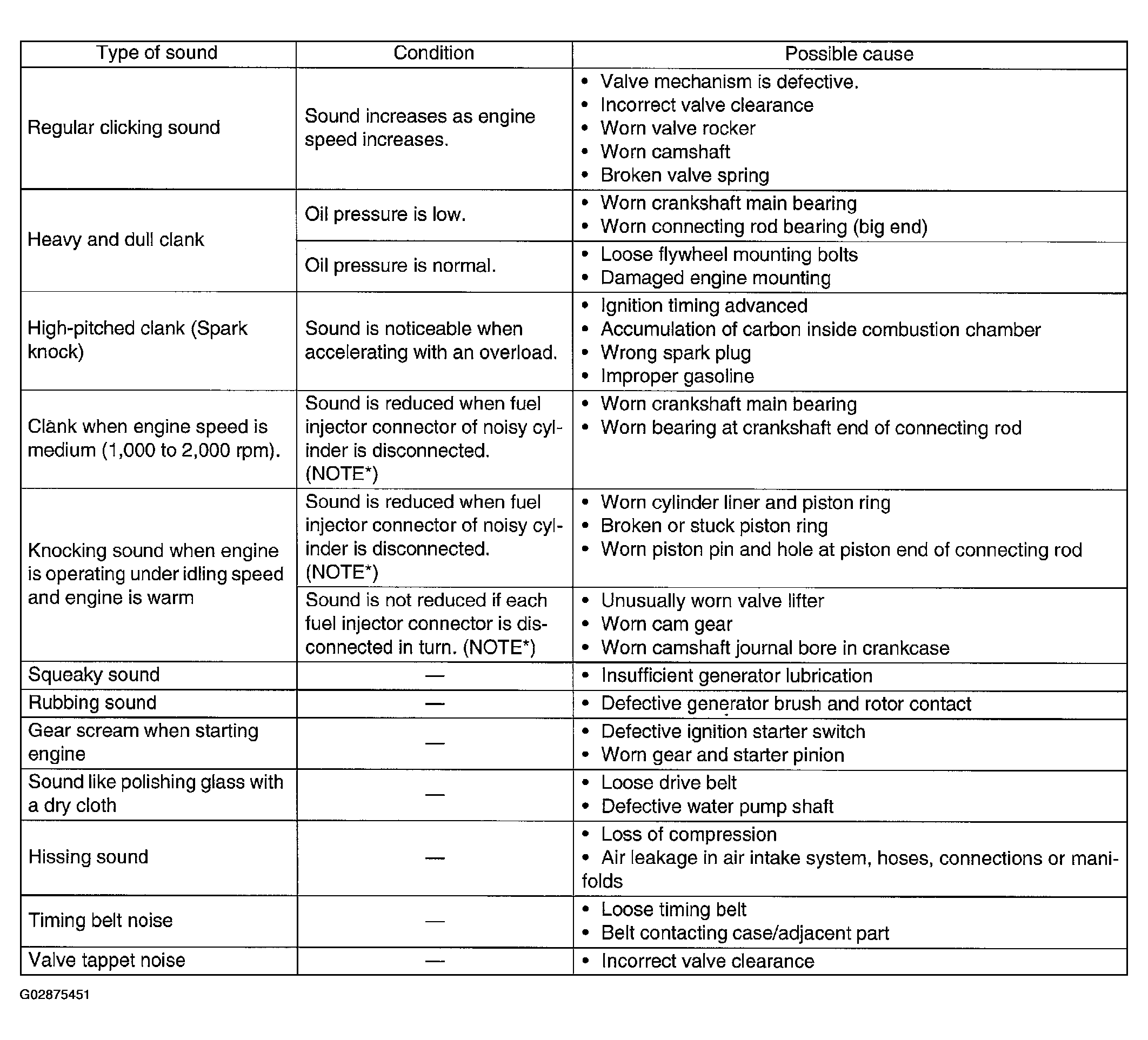

Fig 1: Engine Noise Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE: When disconnecting fuel injector connector, Malfunction Indicator Light (CHECK ENGINE light) illuminates and trouble code is stored in ECM memory.
Therefore, carry out the CLEAR MEMORY MODE See SELF-DIAGNOSTICS - 2.5L .
