Cylinder Head Assembly: Assembly

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

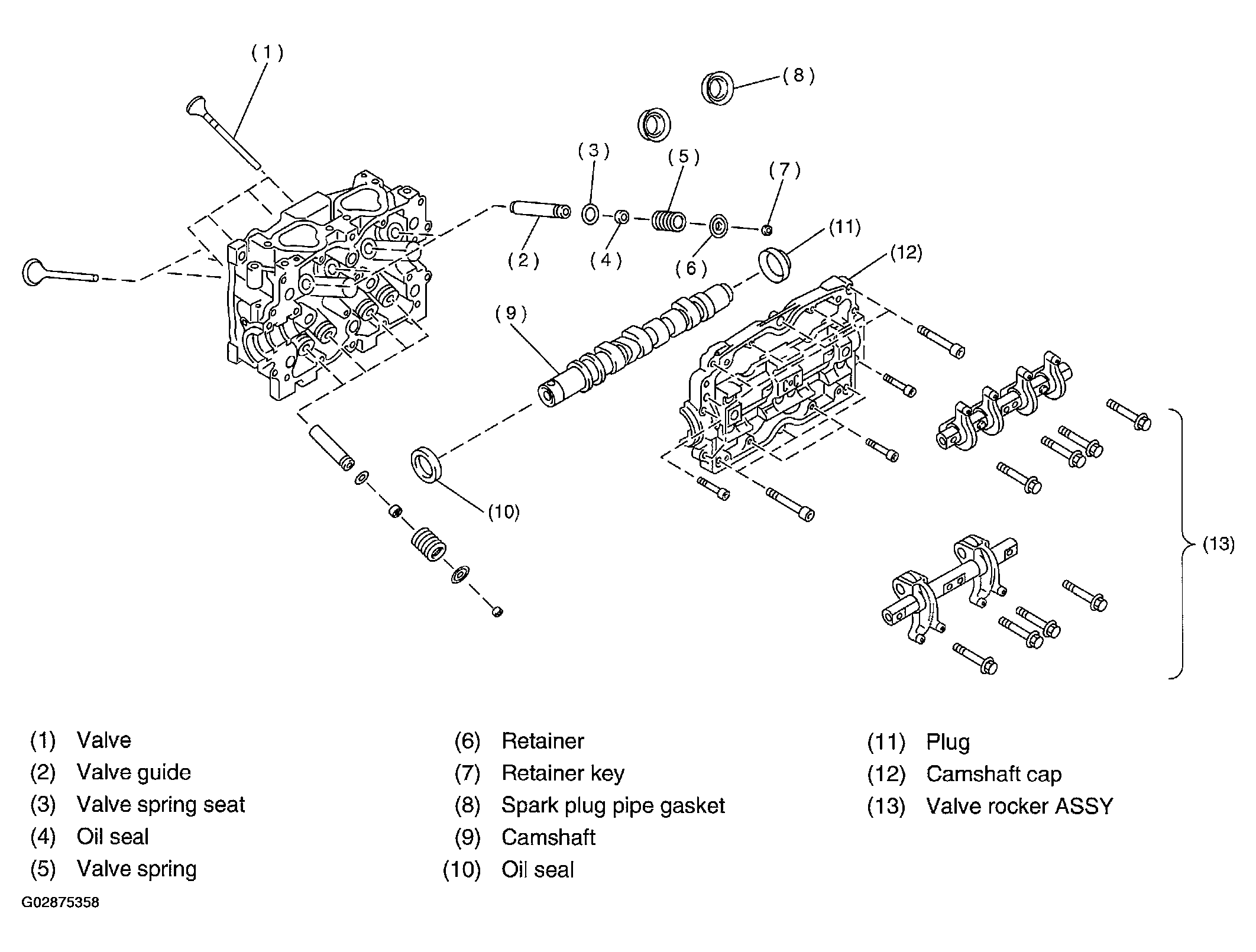

Fig 1: Exploded View Of Cylinder Head Assembly
G02875358Courtesy of SUBARU OF AMERICA, INC.
  1. Installation of valve spring and valve
    1. Place cylinder head on ST.
      1. ST 498267800 CYLINDER HEAD TABLE
    2. Coat stem of each valve with engine oil and insert valve into valve guide.
      NOTE: When inserting valve into valve guide, use special care not to damage the oil seal lip.
    3. Install valve spring and retainer.
      NOTE: Be sure to install the valve springs with their close-coiled end facing the seat on the cylinder head.
    4. Set ST on valve spring.
      1. ST 499718000 VALVE SPRING REMOVER

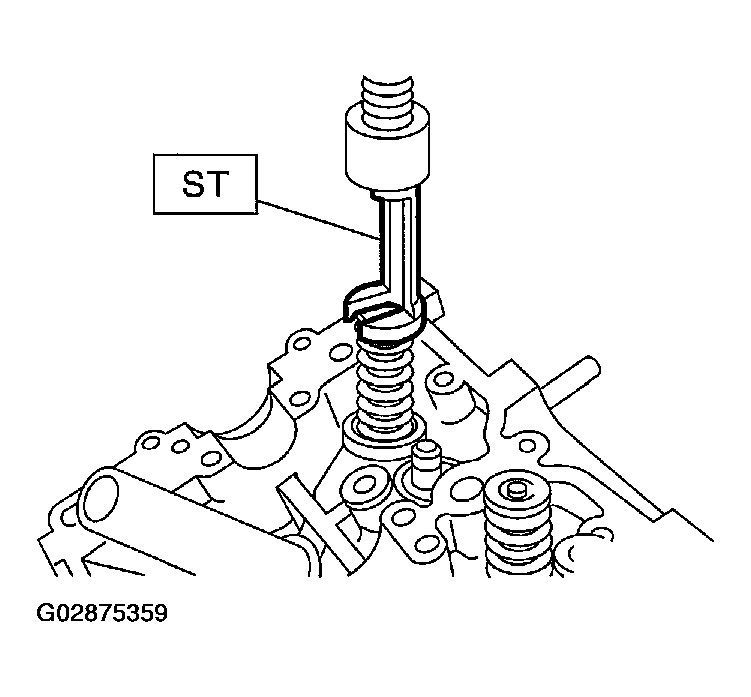

      Fig 2: Setting ST On Valve Spring
      G02875359Courtesy of SUBARU OF AMERICA, INC.
    5. Compress valve spring and fit valve spring retainer key.

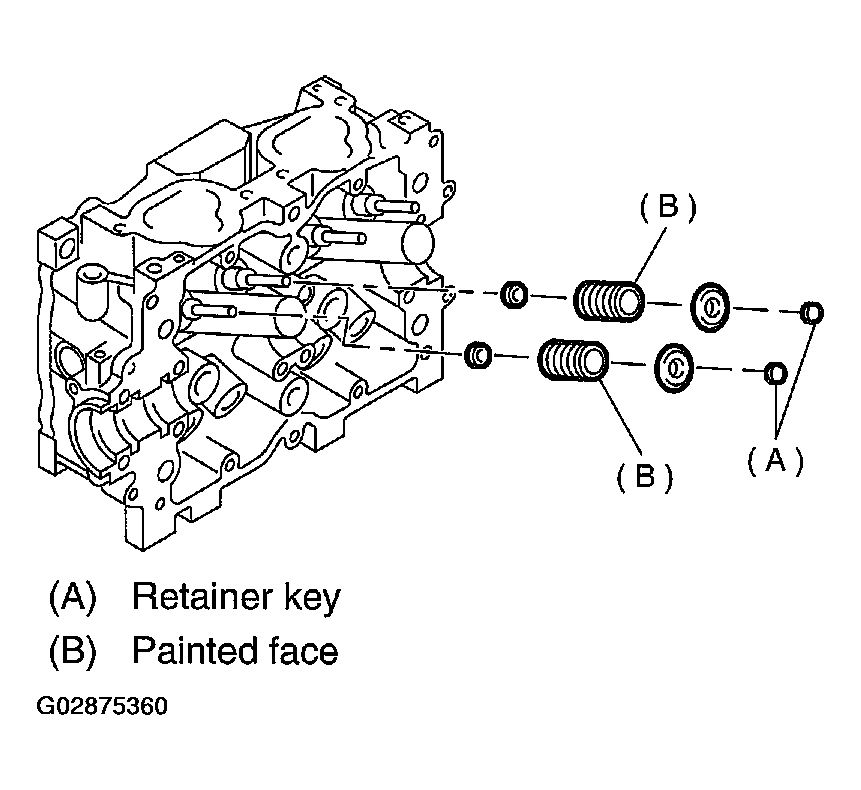

      Fig 3: Compressing Valve Spring & Fitting Valve Spring Retainer Key
      G02875360Courtesy of SUBARU OF AMERICA, INC.
    6. After installing, tap valve spring retainers lightly with wooden hammer for better seating.
