Belt Cover: Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install front belt cover.
    1. Tightening torque:  5 N.m (0.5 kgf-m, 3.6 ft-lb)
  2. Install belt cover (LH).
    1. Tightening torque:  5 N.m (0.5 kgf-m, 3.6 ft-lb)

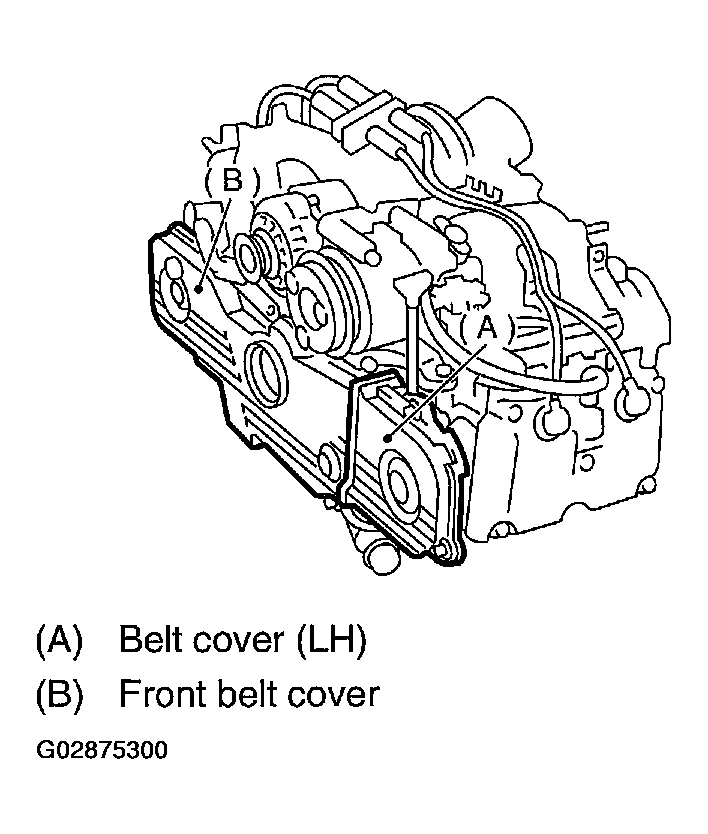

    Fig 1: Installing Belt Cover (LH)
    G02875300Courtesy of SUBARU OF AMERICA, INC.
  3. Install crankshaft pulley. See INSTALLATION , Crankshaft Pulley>
  4. Install V-belt. See INSTALLATION , V-belt.
