Resonator Chamber: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air intake duct. < Ref. to REMOVAL , Air Intake Duct.>
  2. Remove resonator chamber.

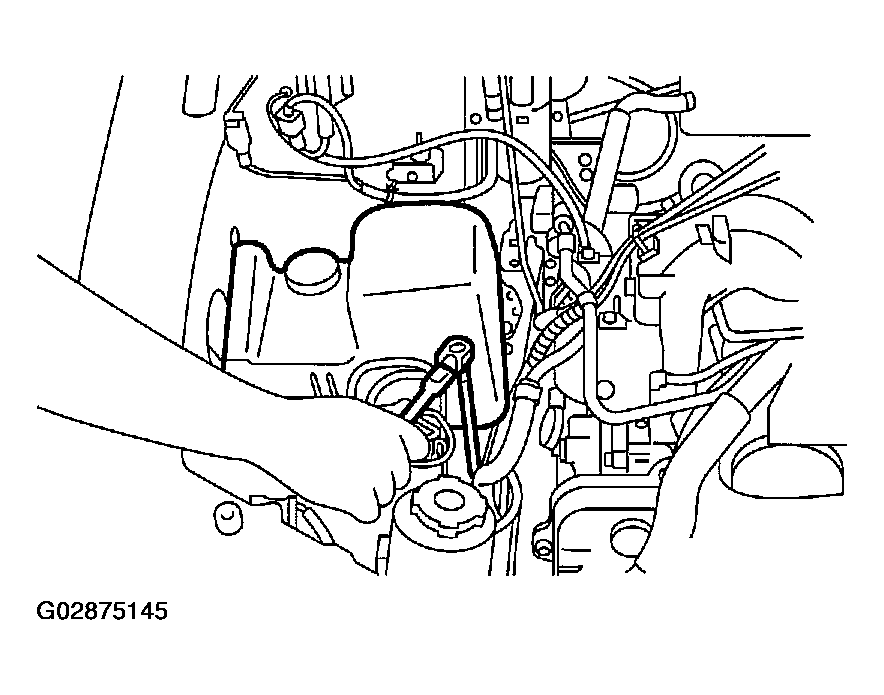

    Fig 1: Removing Resonator Chamber
    G02875145Courtesy of SUBARU OF AMERICA, INC.
