Radiator Main Fan And Fan Motor: Assembly

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Assemble in the reverse order of disassembly.

Tightening torque: 4.4 N.m (0.45 kgf.m, 3.3 ft.lb)

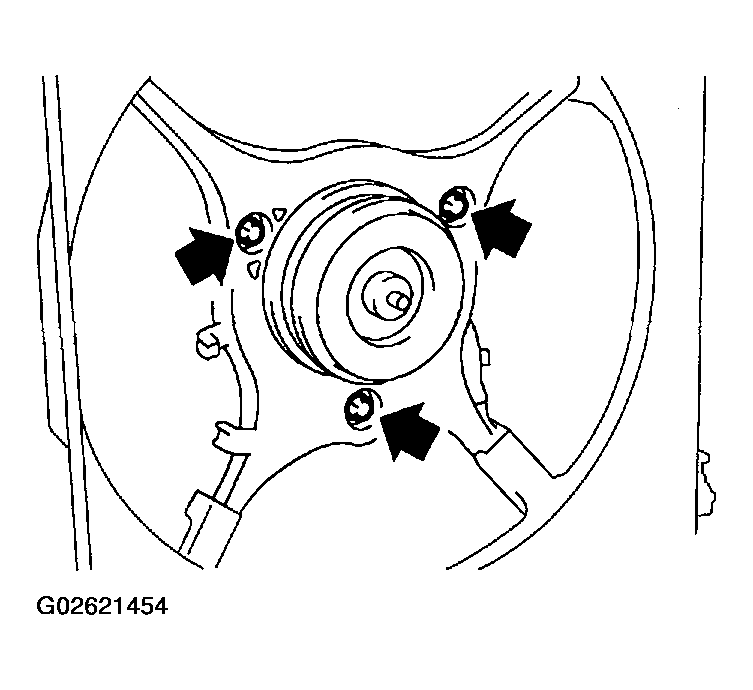

Fig 1: Installing Fan Motor Onto Fan Shroud

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 3.4 N.m (0.35 kgf.m, 2.5 ft.lb)

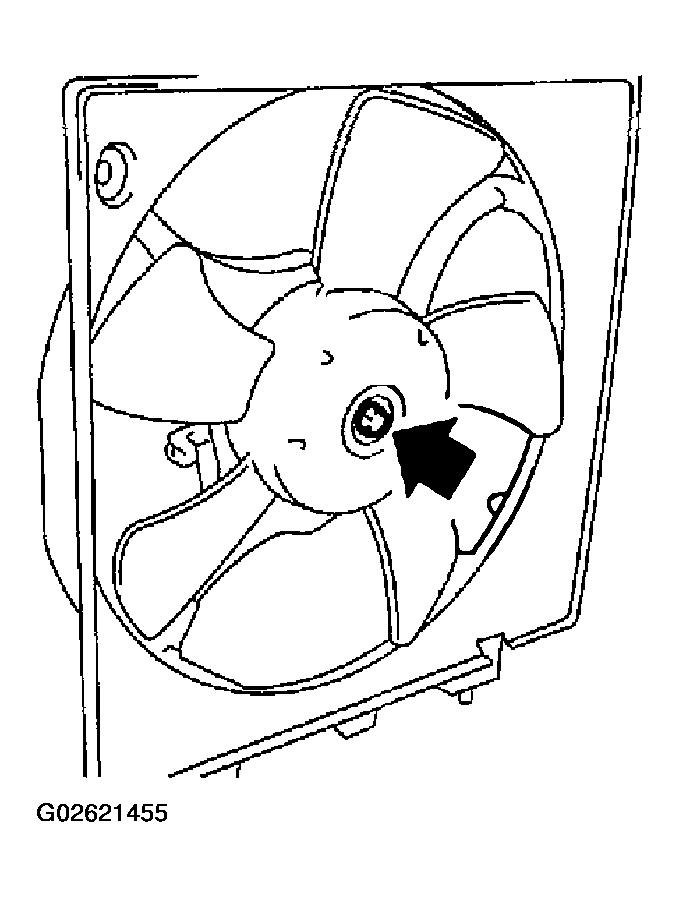

Fig 2: Installing Nut Holding Fan Onto Fan Motor

Courtesy of SUBARU OF AMERICA, INC.
