Section 108 (HVAC): Condenser: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Using the refrigerant recovery system, discharge refrigerant. See OPERATION , Refrigerant Recovery Procedure.
Disconnect the ground terminal from battery.
Disconnect the pressure hose and pipe from condenser.

Fig 1: Disconnecting Pressure Hose & Pipe From Condenser
Courtesy of SUBARU OF AMERICA, INC.

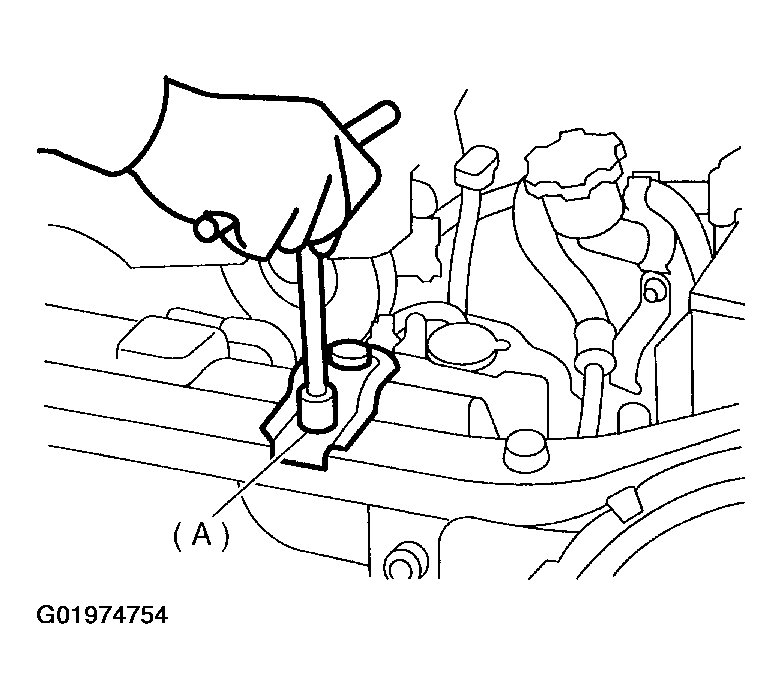

Remove the radiator bracket (A).

Fig 2: Removing Radiator Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove two bolts. While lifting condenser, pull it out through space between the radiator and the radiator panel.

Fig 3: Removing Bolts Lifting Up Condenser
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Be careful not to damage the condenser fins. If a damaged fin is found, repair it using a thin screwdriver.
If the condenser is replaced, add appropriate amount of compressor oil to the compressor. See REPLACEMENT , Compressor Oil.
