Section 101 (HVAC): Condenser: Removal
WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect battery negative terminal.
- Discharge refrigerant using refrigerant recovery system. See OPERATION , Refrigerant Recovery Procedure.

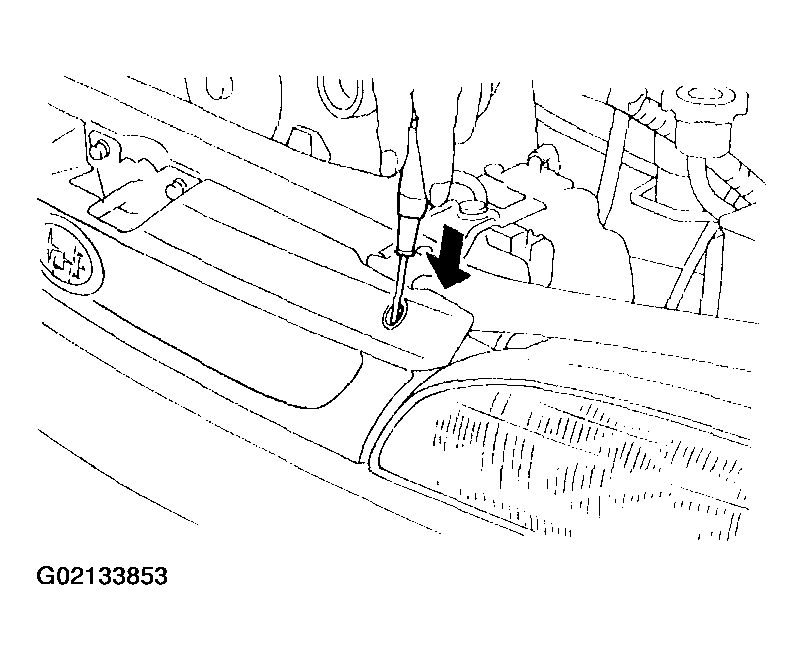

- Remove front grille.
- Remove the radiator bracket.

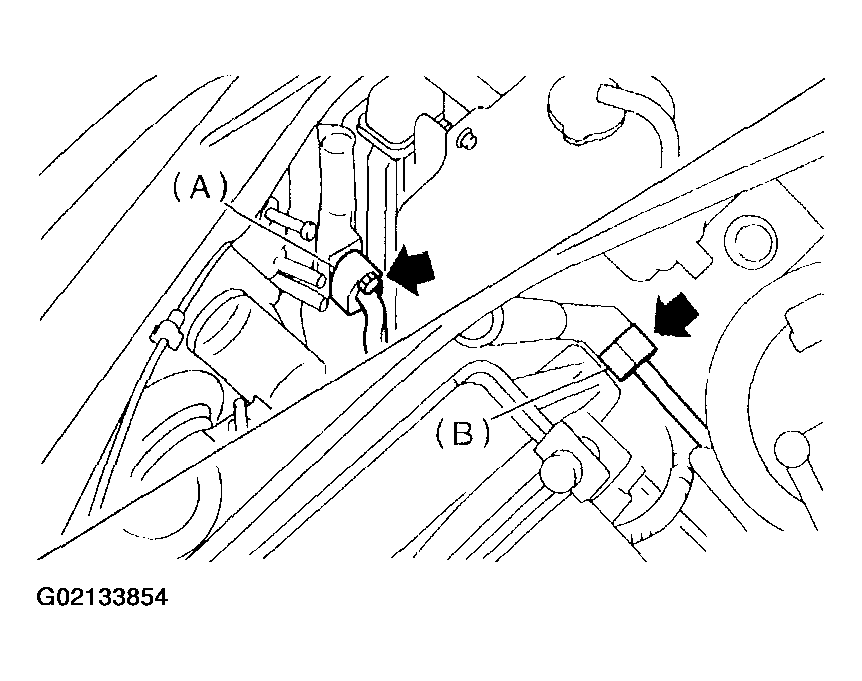

- Disconnect high-pressure hose (A) and high pressure pipe (B) from condenser.

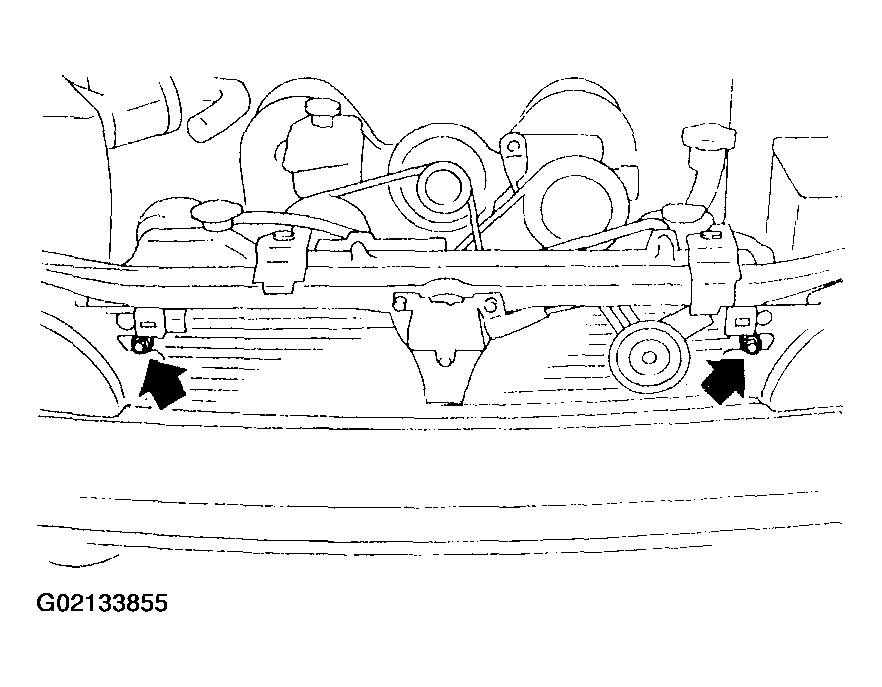

- Remove the two bolts which secure condenser. While lifting condenser, remove it through space between radiator and radiator panel.
