Home >> Subaru >> 2001 >> Outback Base, Standard >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Lubrication (H4SO) >> General Description >> Component

Lubrication (H4SO): General Description: Component

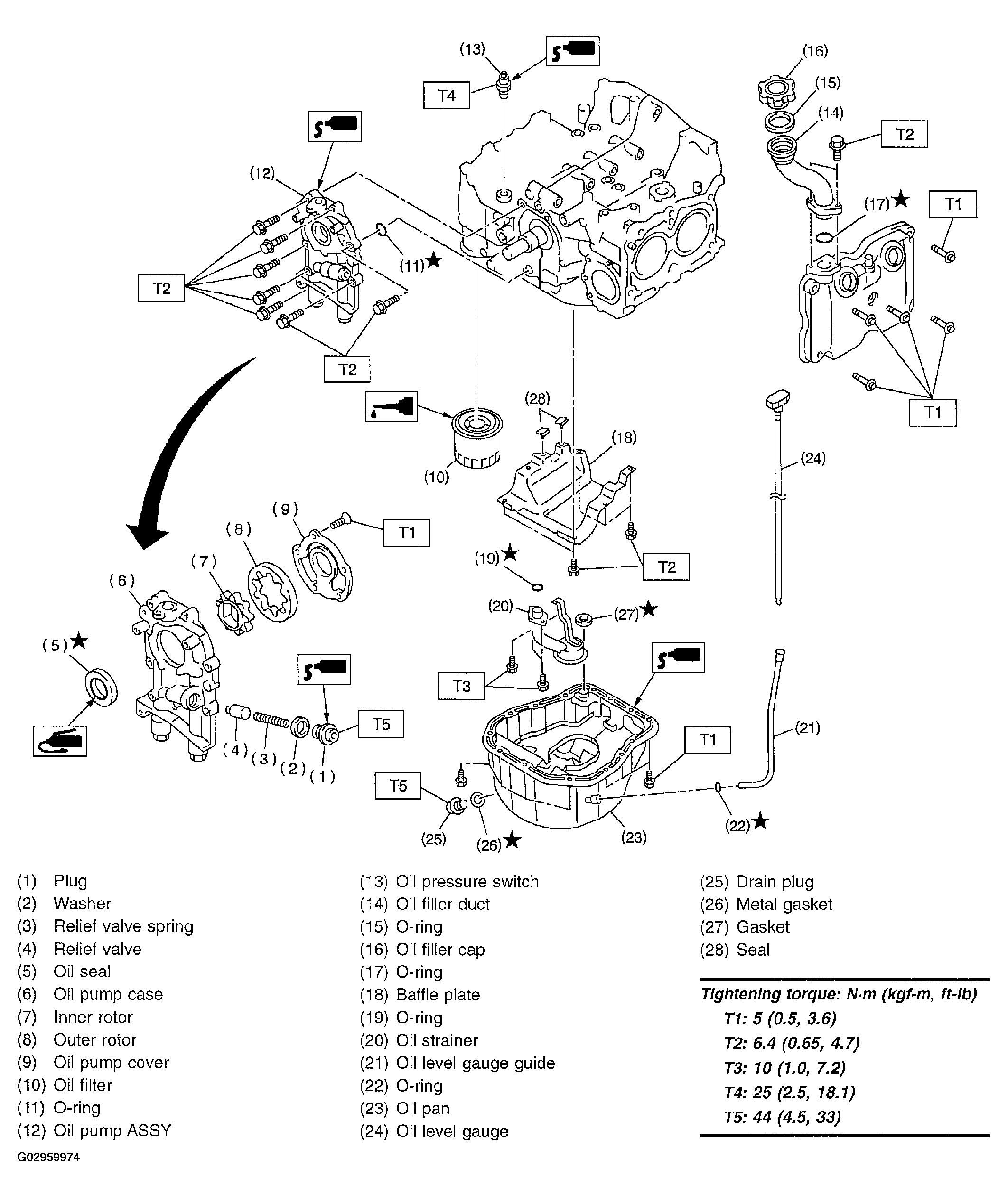

Fig 1: Identifying Lubrication Components

G02959974

Courtesy of SUBARU OF AMERICA, INC.
