Removal & Installation: Starter: Removal

  1. Disconnect battery ground cable.
    Fig 1: Disconnecting Battery Ground Cable
    G02019818
  2. Remove air cleaner case, see AIR CLEANER
  3. Disconnect connector and terminal from starter.

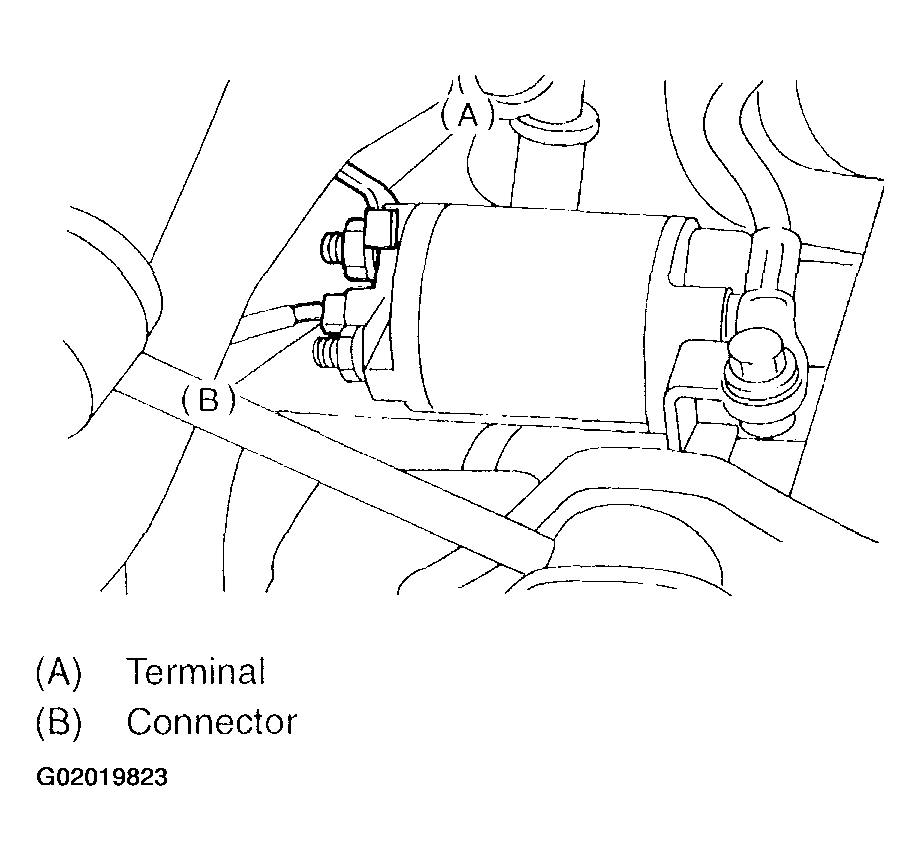

    Fig 2: Disconnecting Connector And Terminal From Starter
    G02019823
  4. Remove starter from transmission.

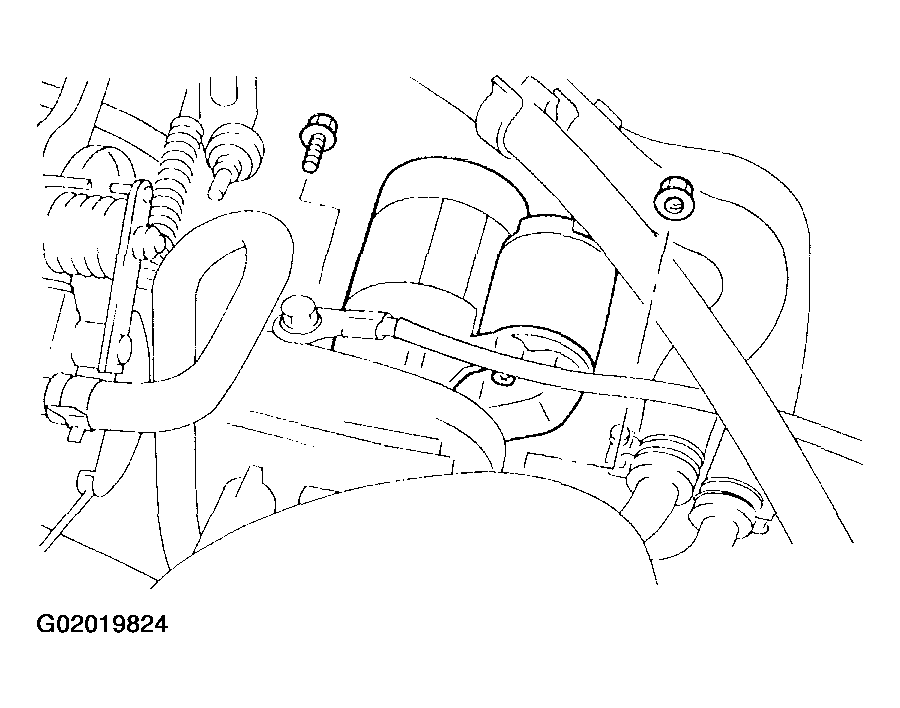

    Fig 3: Removing Starter From Transmission
    G02019824
