With SUBARU Select Monitor

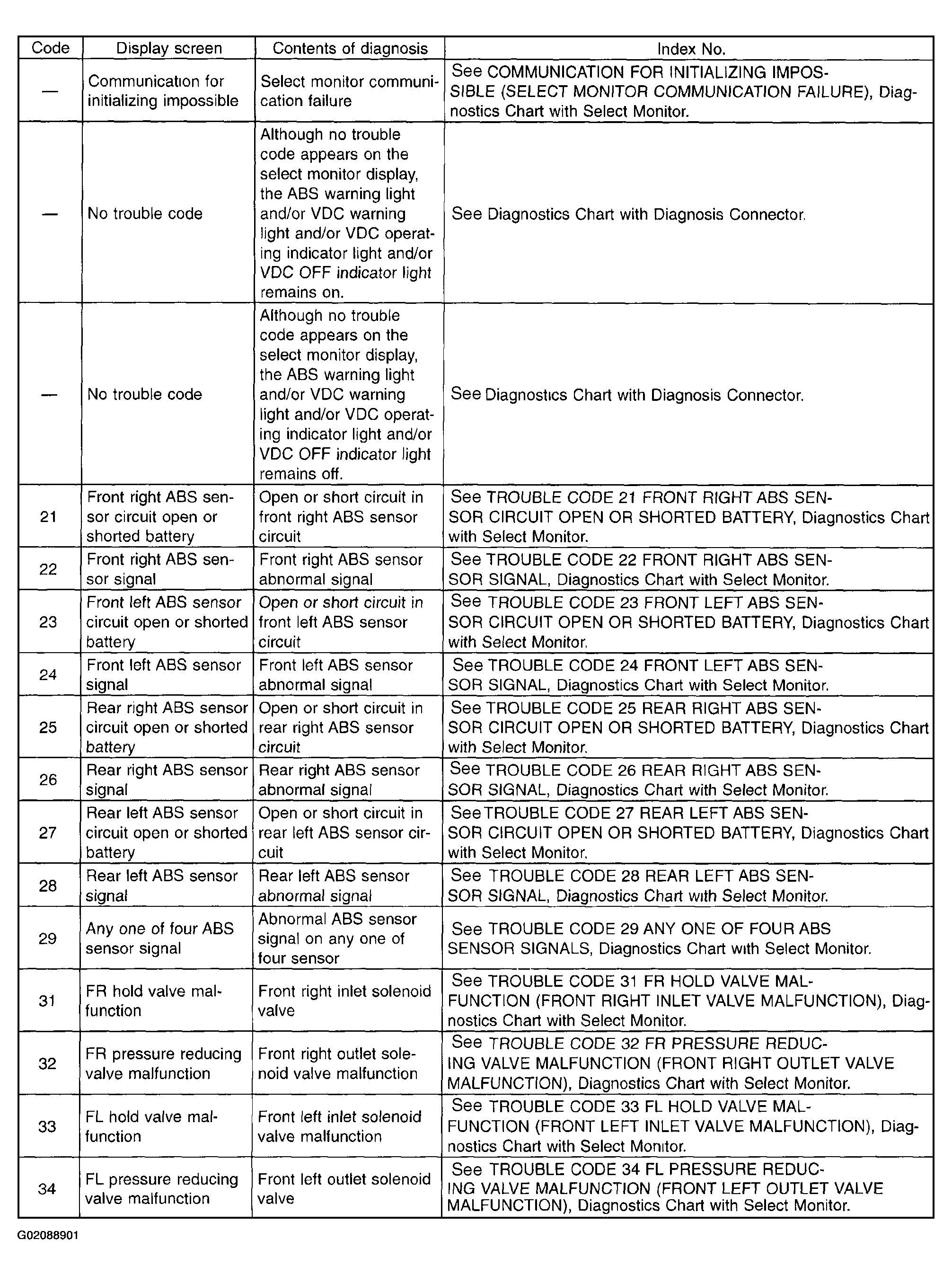

Fig 1: Diagnostic Trouble Code Chart - (With Subaru Select Monitor) - (1 Of 5)
G02088901

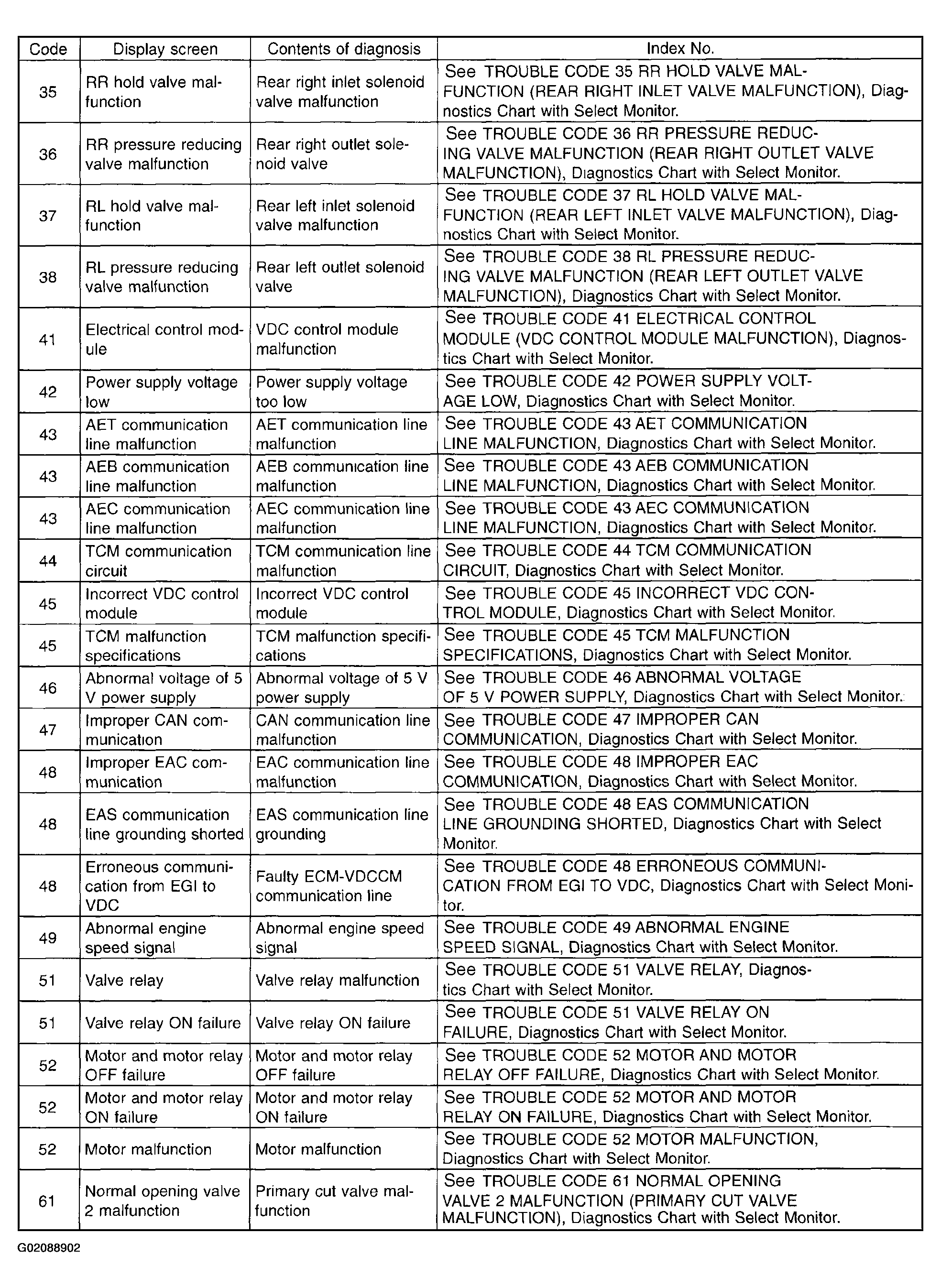

Fig 2: Diagnostic Trouble Code Chart - (With Subaru Select Monitor) - (2 Of 5)
G02088902

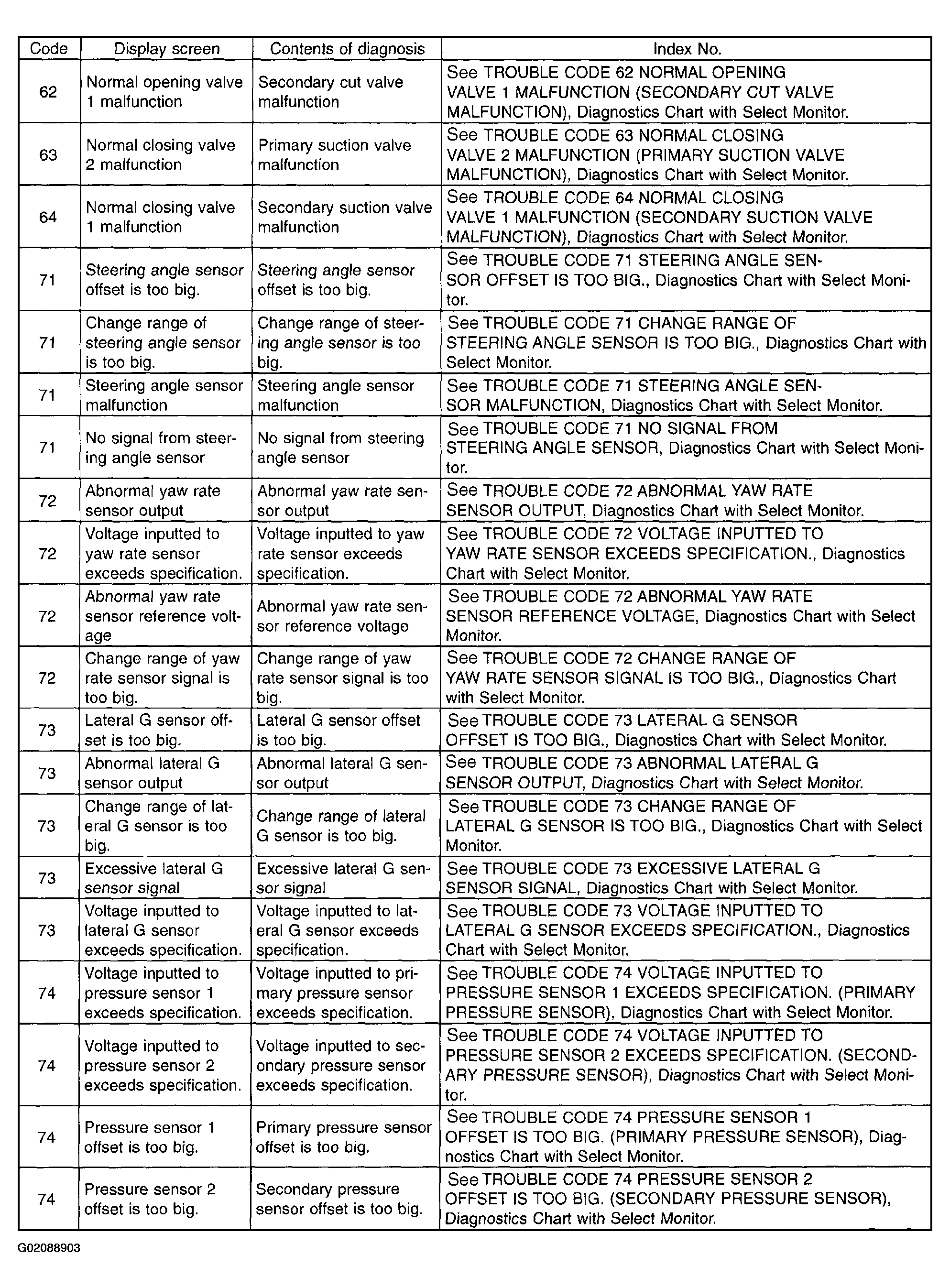

Fig 3: Diagnostic Trouble Code Chart - (With Subaru Select Monitor) - (3 Of 5)
G02088903

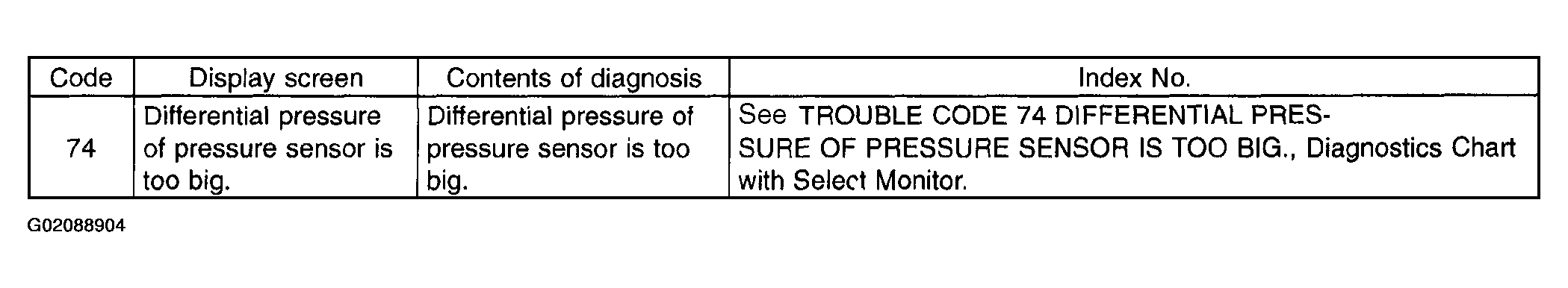

Fig 4: Diagnostic Trouble Code Chart - (With Subaru Select Monitor) - (4 Of 5)
G02088904

If any of the following multiple trouble codes are present in memory, check the area corresponding to the first trouble code. If no problem is detected, check the areas corresponding to the other trouble codes in order of their appearance.

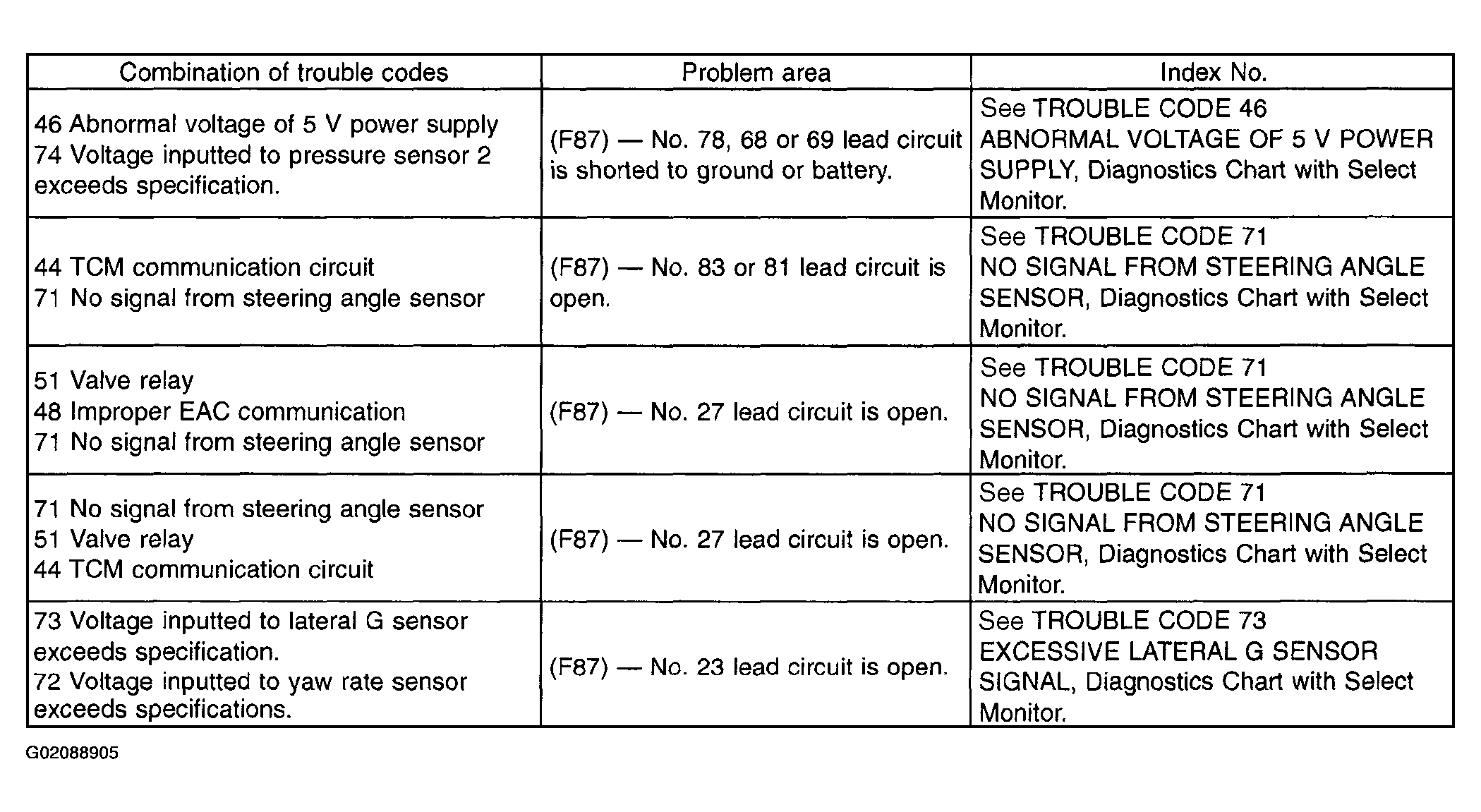

Fig 5: Diagnostic Trouble Code Chart - (With Subaru Select Monitor) - (5 Of 5)
G02088905
