Home >> Subaru >> 2001 >> Outback Base, Standard >> Repair and Diagnosis (Single Page) >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> HVAC System (Auto A/C) (Diagnostics) >> A/C Control Module I/O Signal >> Schematic >> Air Conditioner Auto A/C

Air Conditioner Auto A/C

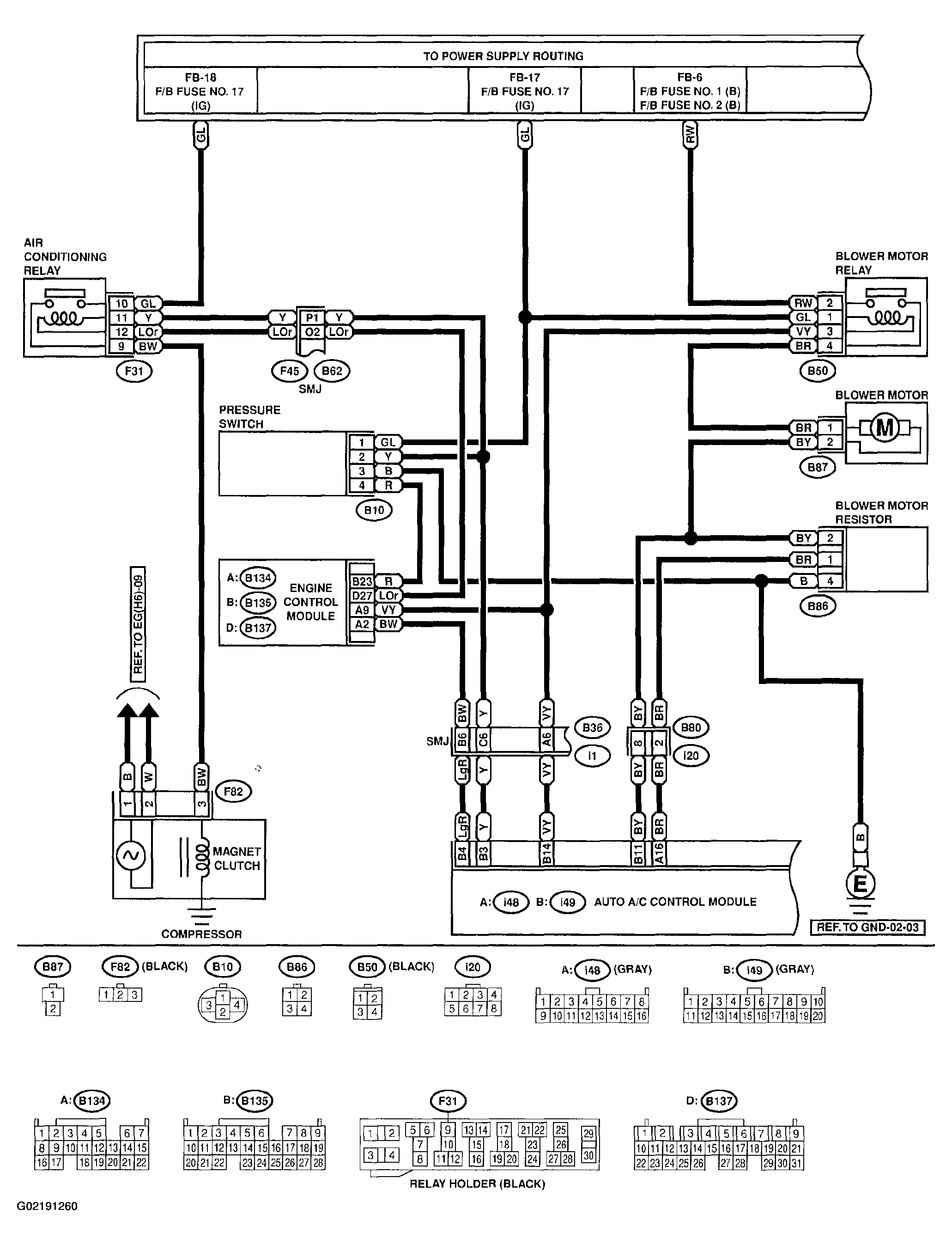

Fig 1: Air Conditioner Auto A/C Schematic (1 Of 4)
G02191260

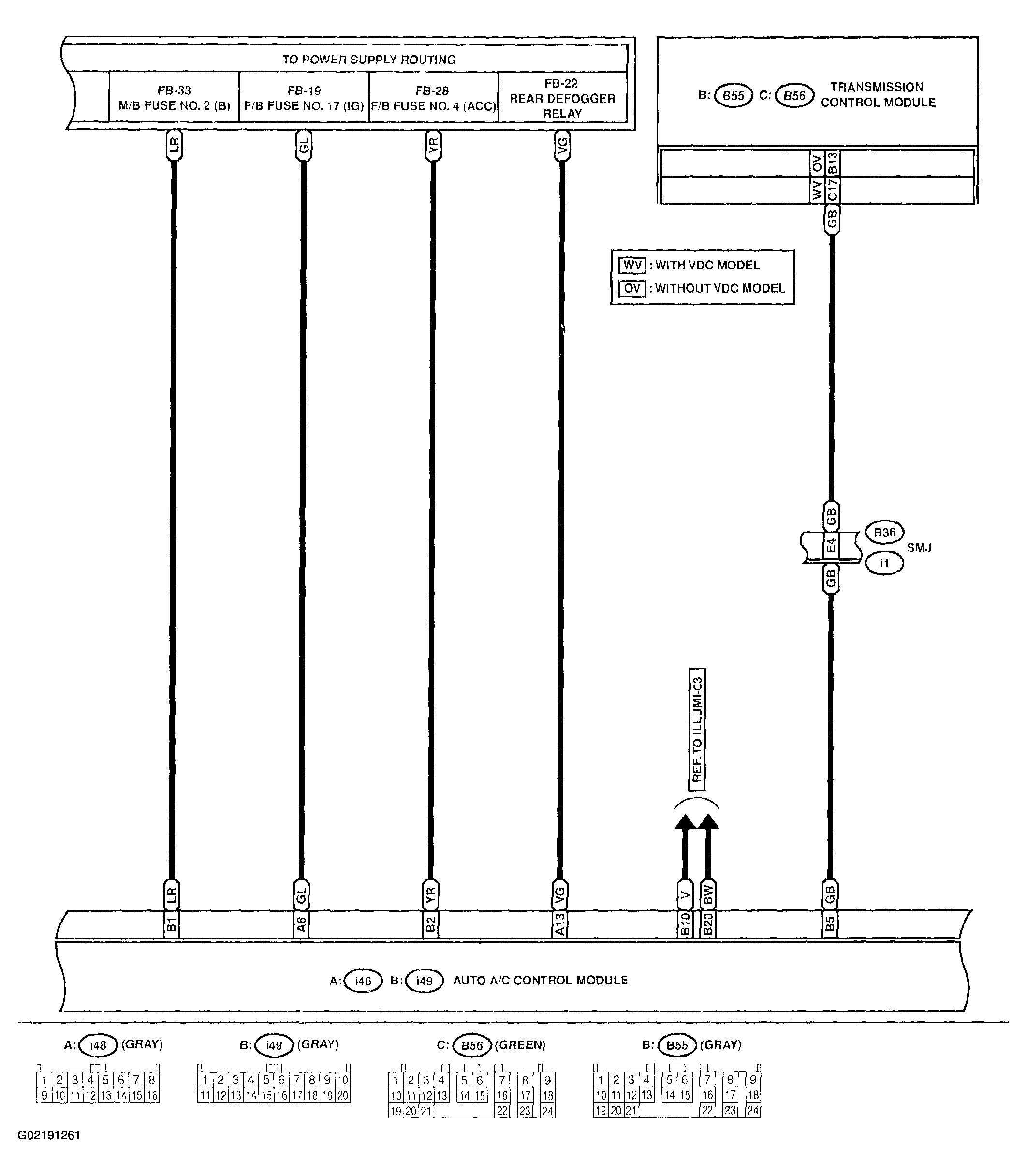

Fig 2: Air Conditioner Auto A/C Schematic (2 Of 4)
G02191261

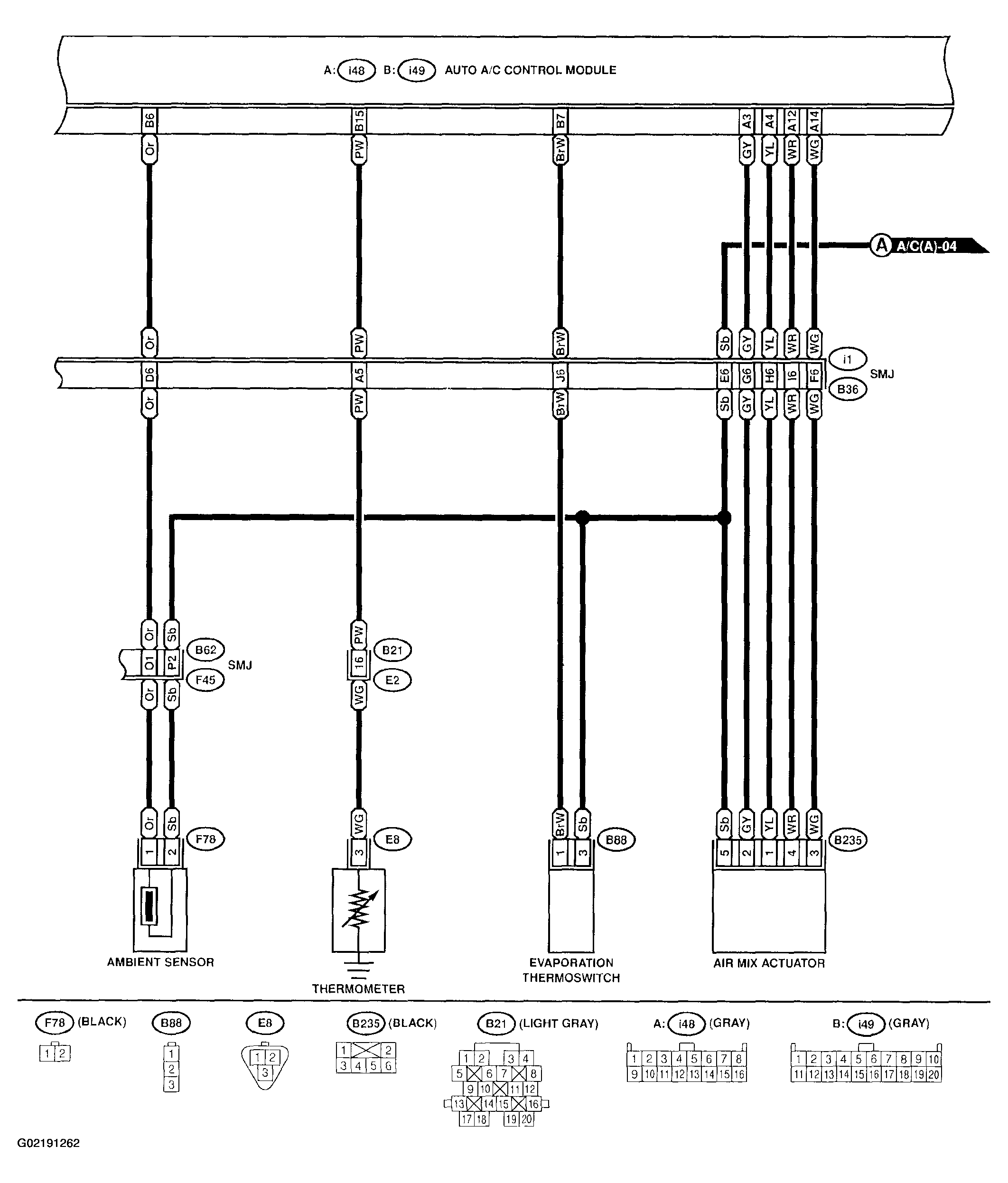

Fig 3: Air Conditioner Auto A/C Schematic (3 Of 4)
G02191262

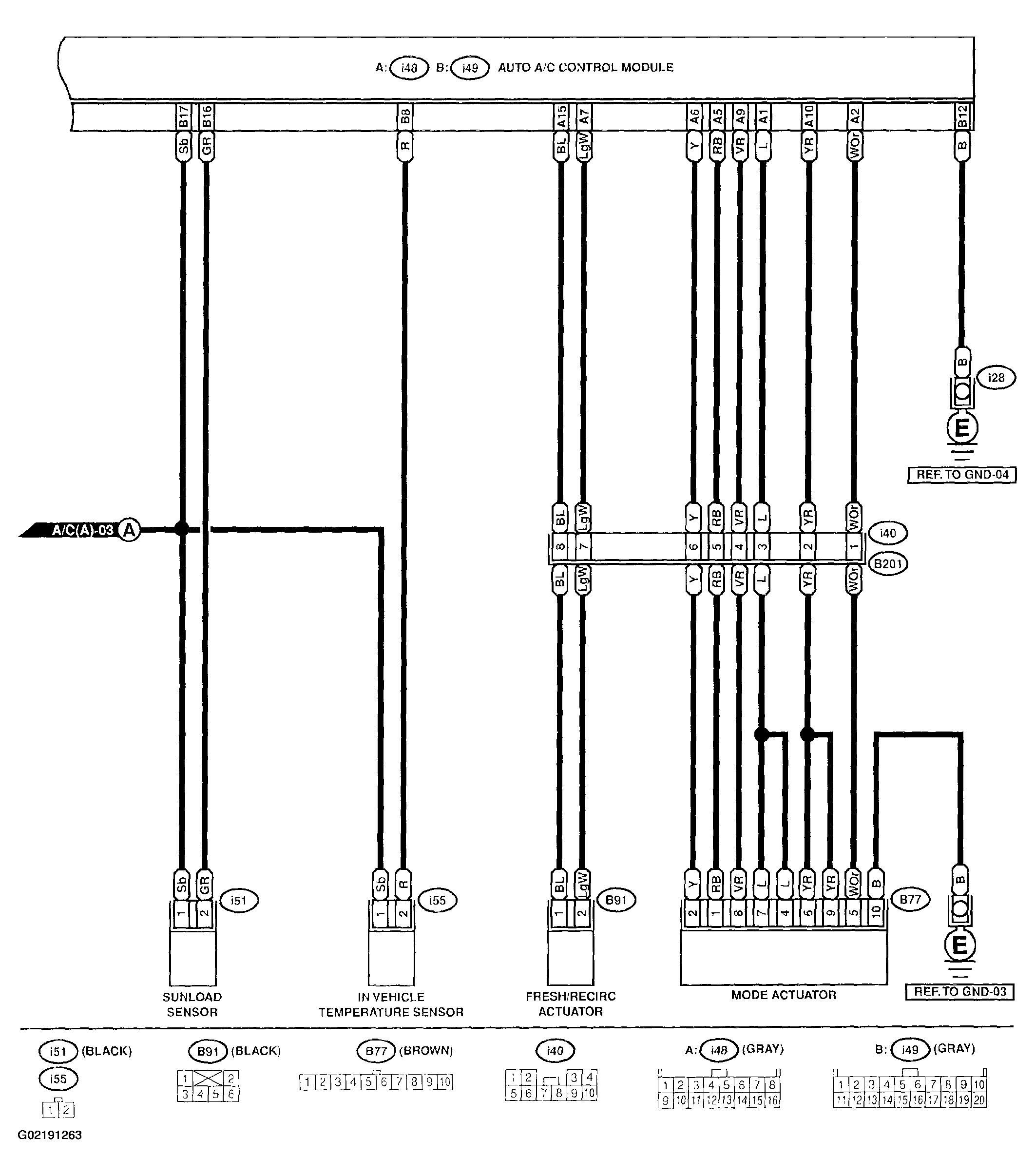

Fig 4: Air Conditioner Auto A/C Schematic (4 Of 4)
G02191263
