Trouble Code 74 Pressure Sensor 2 Offset Is Too Big (Secondary Pressure Sensor): Wiring Diagram

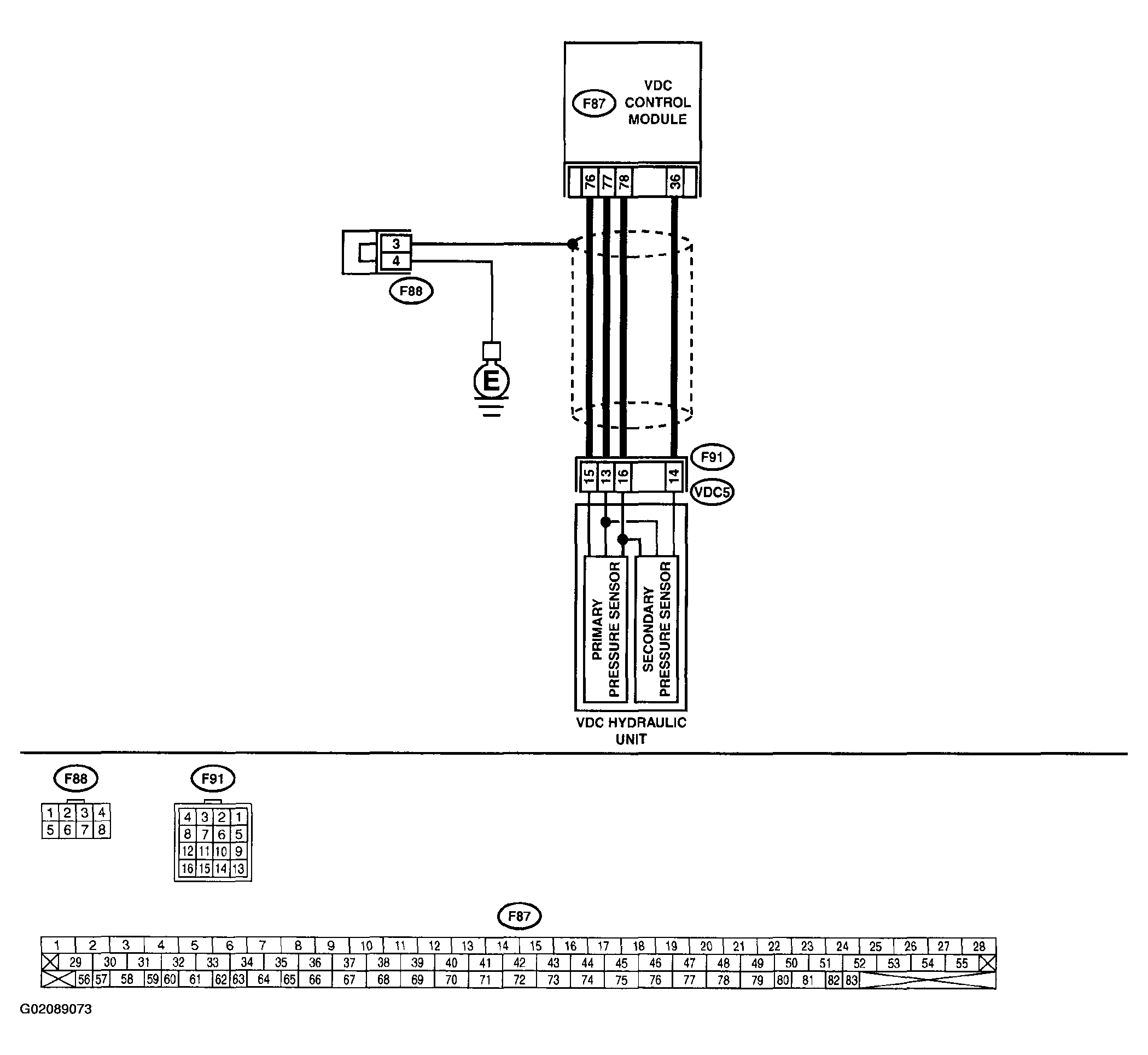

Fig 1: Wiring Diagram - Trouble Code 74 - With Select Monitor (Pressure Sensor 1 or 2 Offset Is Too Big)
