Trouble Code 74 Differential Pressure Of Pressure Sensor Is Too Big
>>
Wiring Diagram
Trouble Code 74 Differential Pressure Of Pressure Sensor Is Too Big: Wiring Diagram

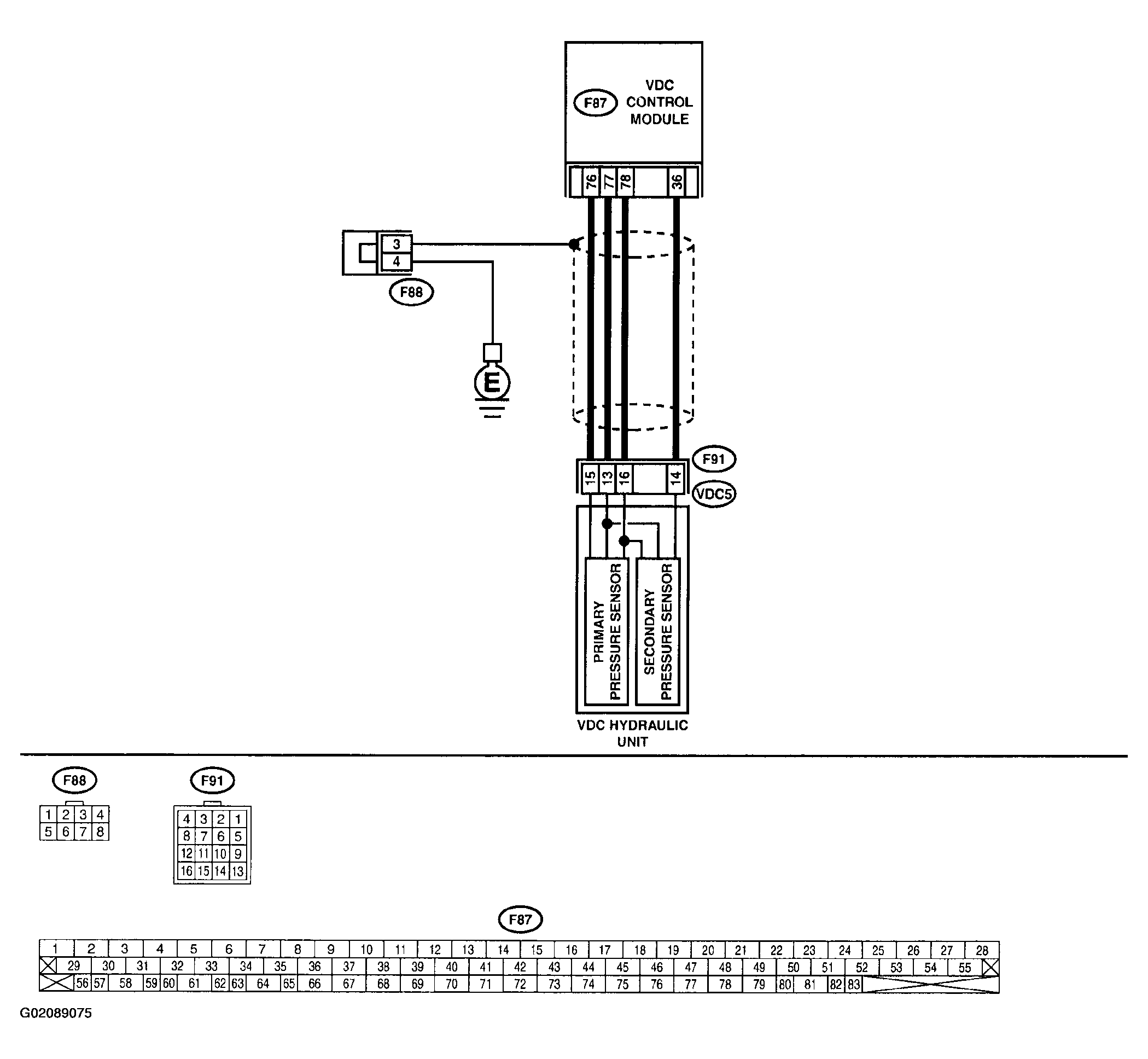

Fig 1: Wiring Diagram - Trouble Code 74 - With Select Monitor (Differential Pressure Of Pressure Sensor Is Too Big)
