Diagnostic Chart

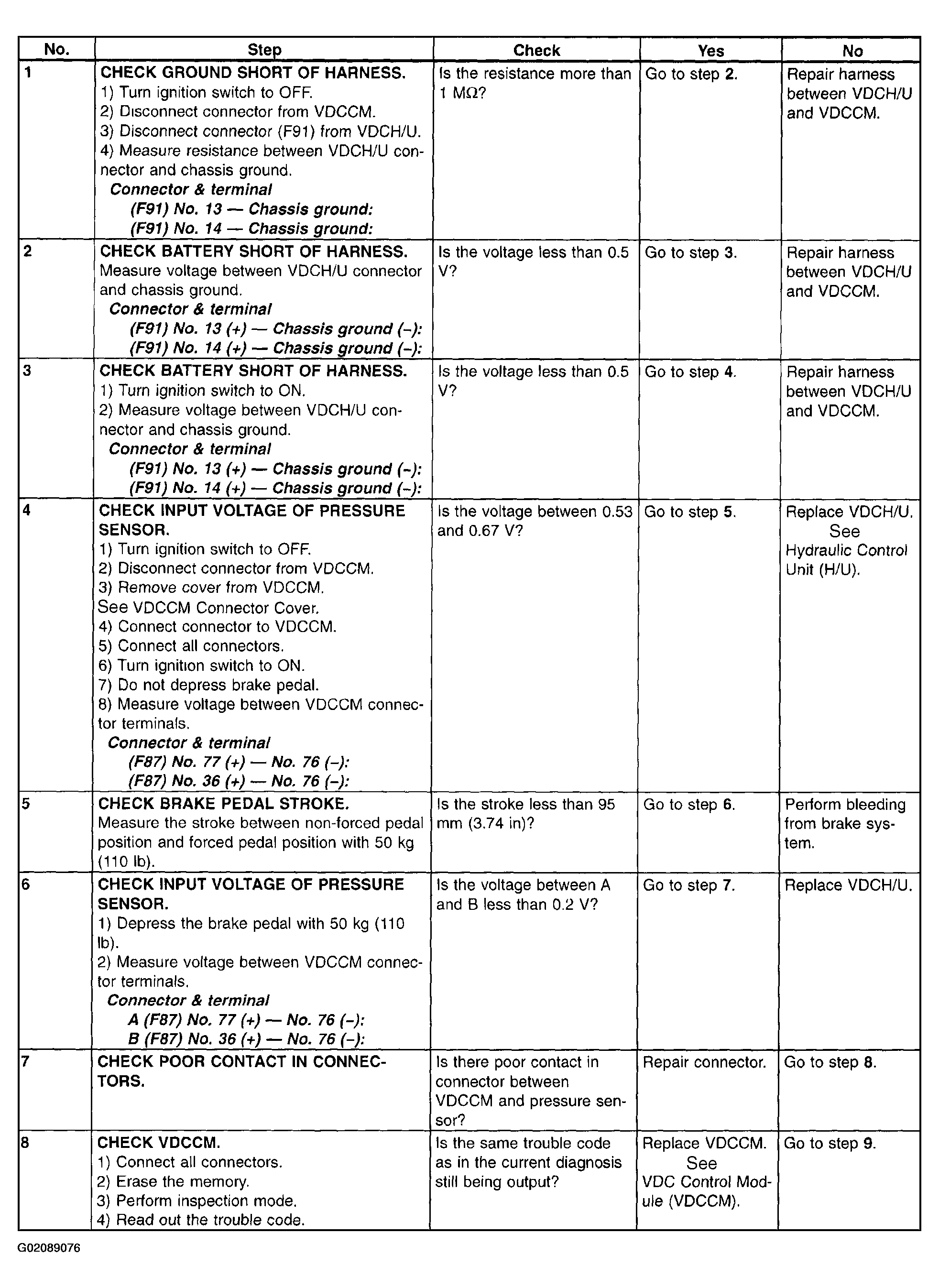

Fig 1: Diagnostic Chart - Trouble Code 74 - With Select Monitor (Differential Pressure Of Pressure Sensor Is Too Big) - (1 Of 2)
G02089076

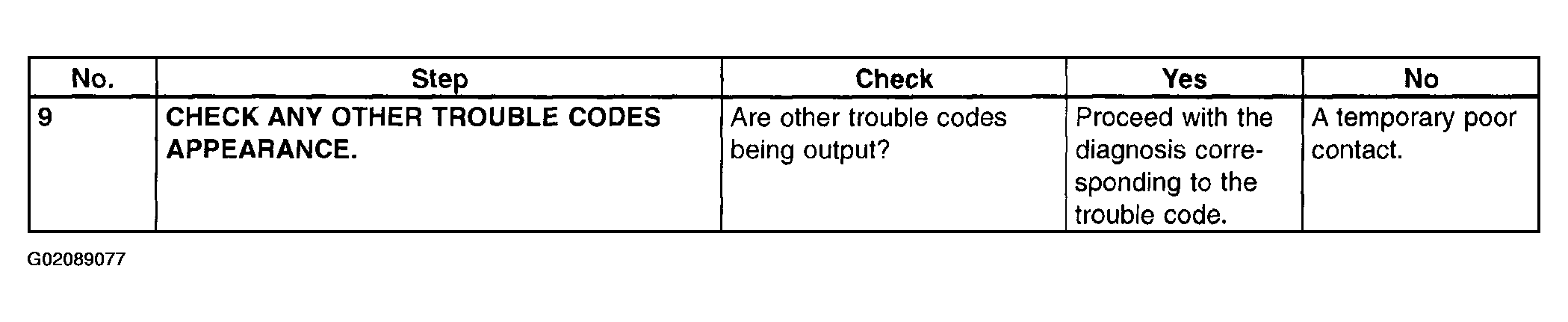

Fig 2: Diagnostic Chart - Trouble Code 74 - With Select Monitor (Differential Pressure Of Pressure Sensor Is Too Big) - (2 Of 2)
G02089077
