Trouble Code 73 Excessive Lateral G Sensor Signal: Wiring Diagram

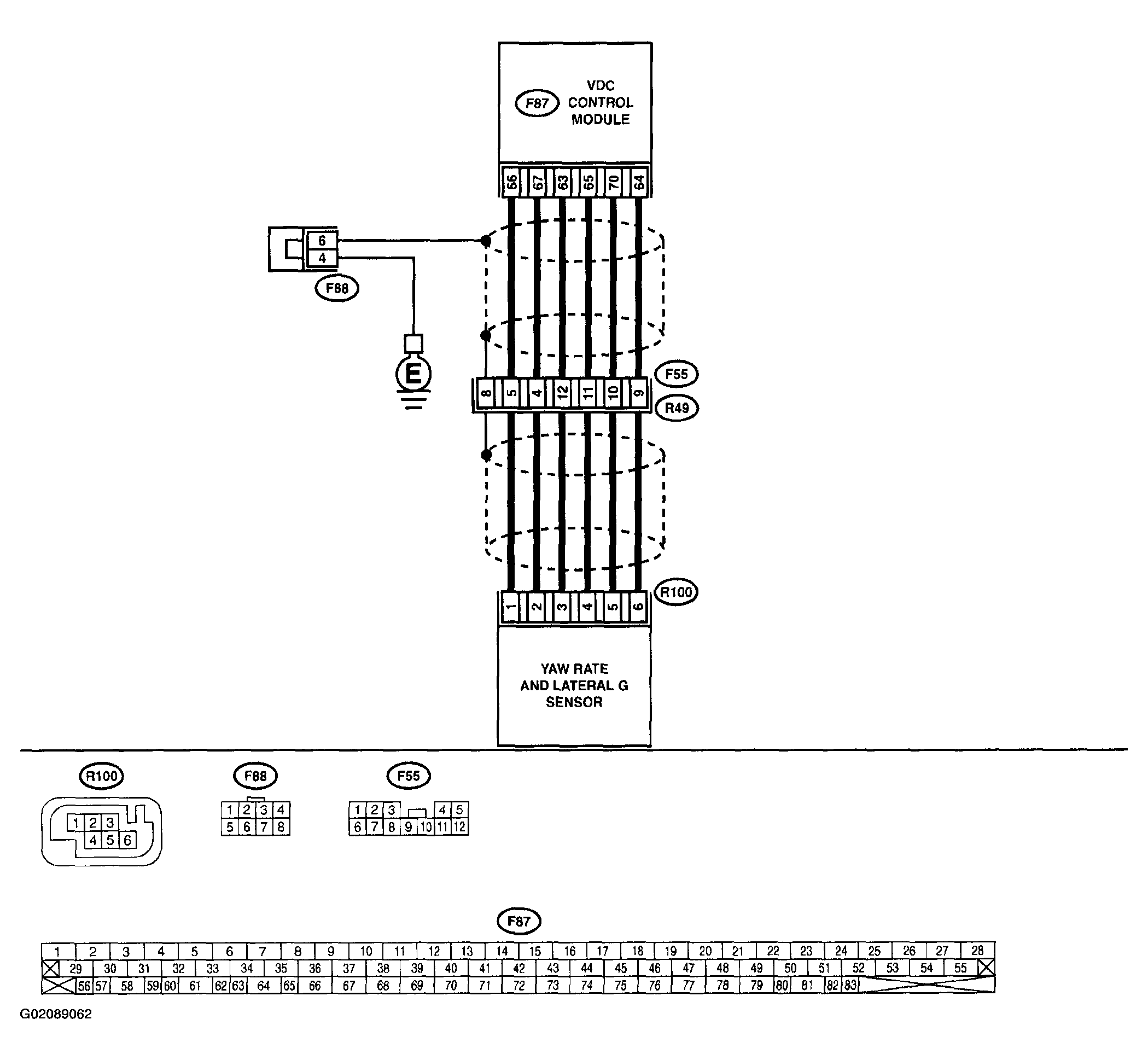

Fig 1: Wiring Diagram - Trouble Code 73 - With Select Monitor (Excessive Lateral G Sensor Signal)
G02089062

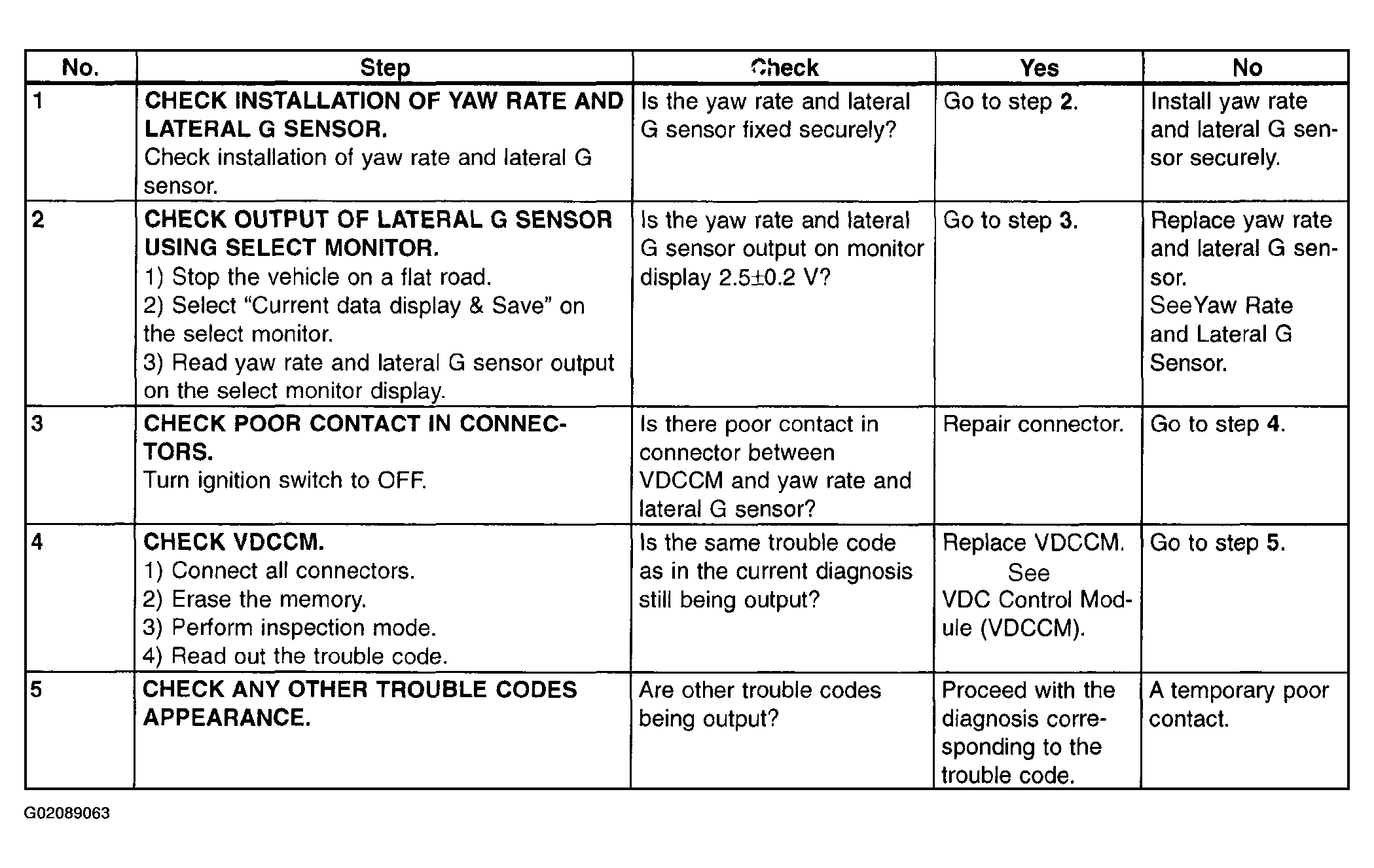

Fig 2: Diagnostic Chart - Trouble Code 73 - With Select Monitor (Excessive Lateral G Sensor Signal)
G02089063
