Trouble Code 71 Steering Angle Sensor Offset Is Too Big: Wiring Diagram

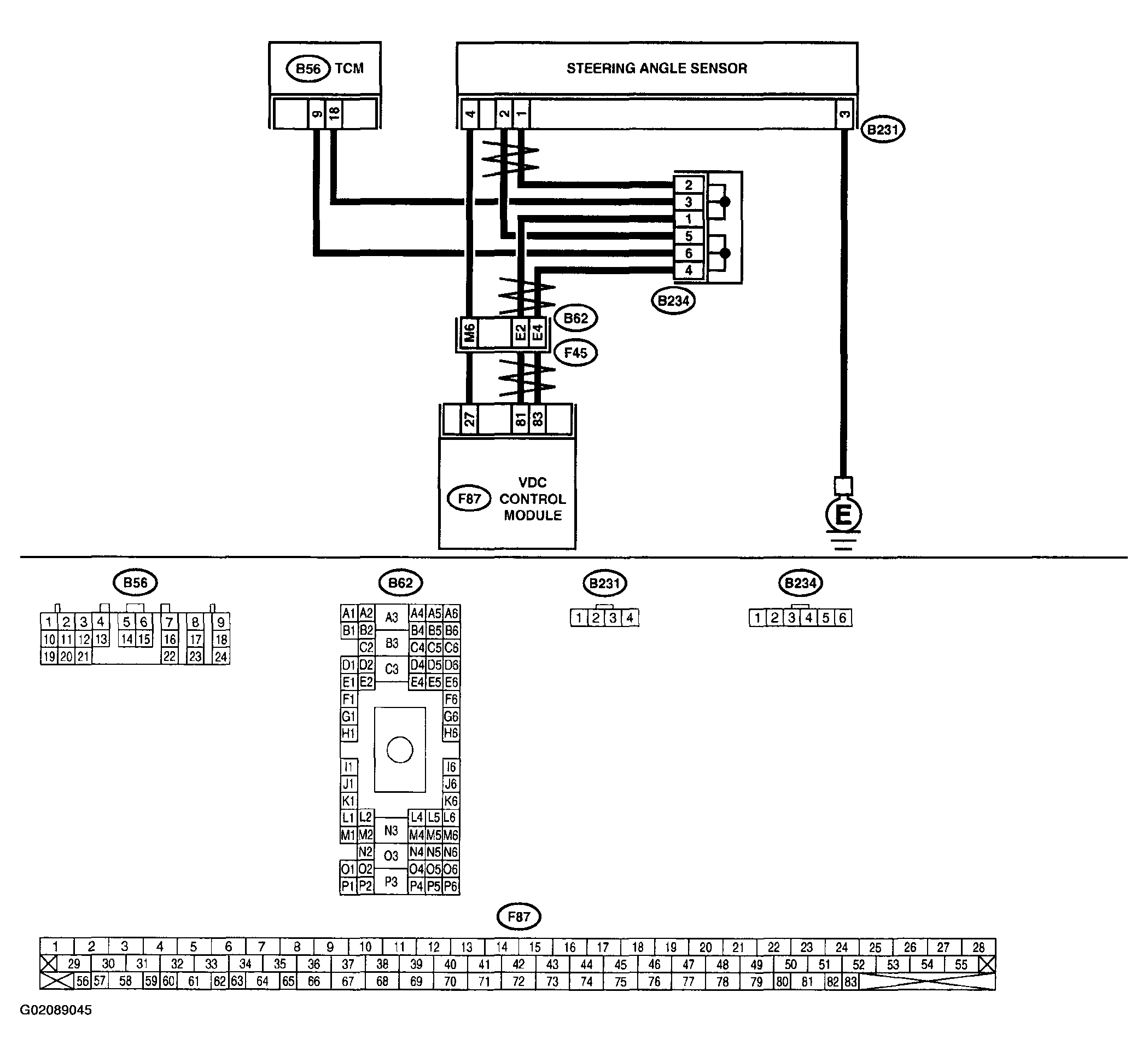

Fig 1: Wiring Diagram - Trouble Code 71 - With Select Monitor (Steering Angle Sensor Offset Is Too Big)

G02089045
