Trouble Code 71 No Signal From Steering Angle Sensor
>>
Wiring Diagram
Trouble Code 71 No Signal From Steering Angle Sensor: Wiring Diagram

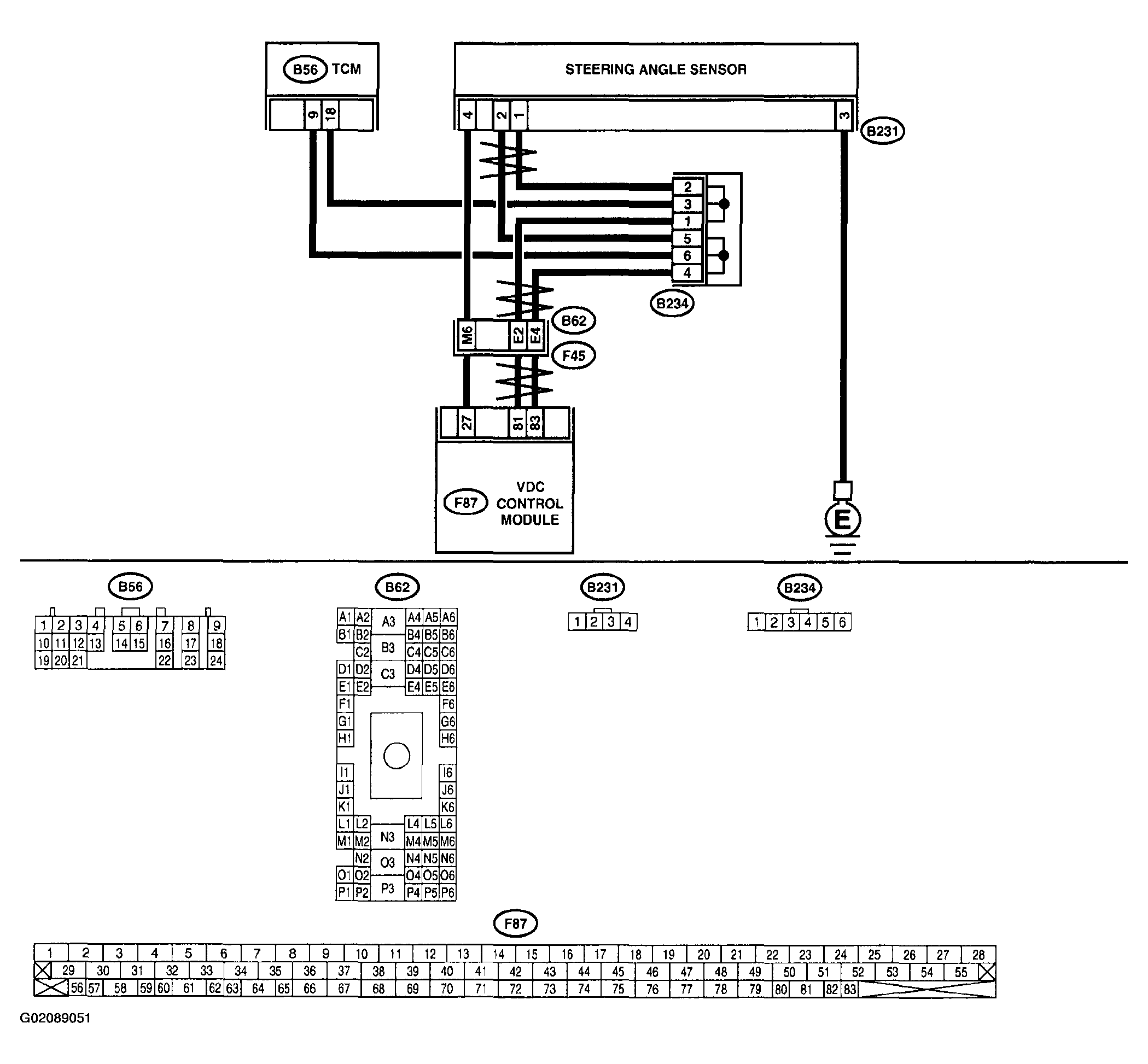

Fig 1: Wiring Diagram - Trouble Code 71 (No Signal From Steering Angle Sensor)
