Diagnostic Chart

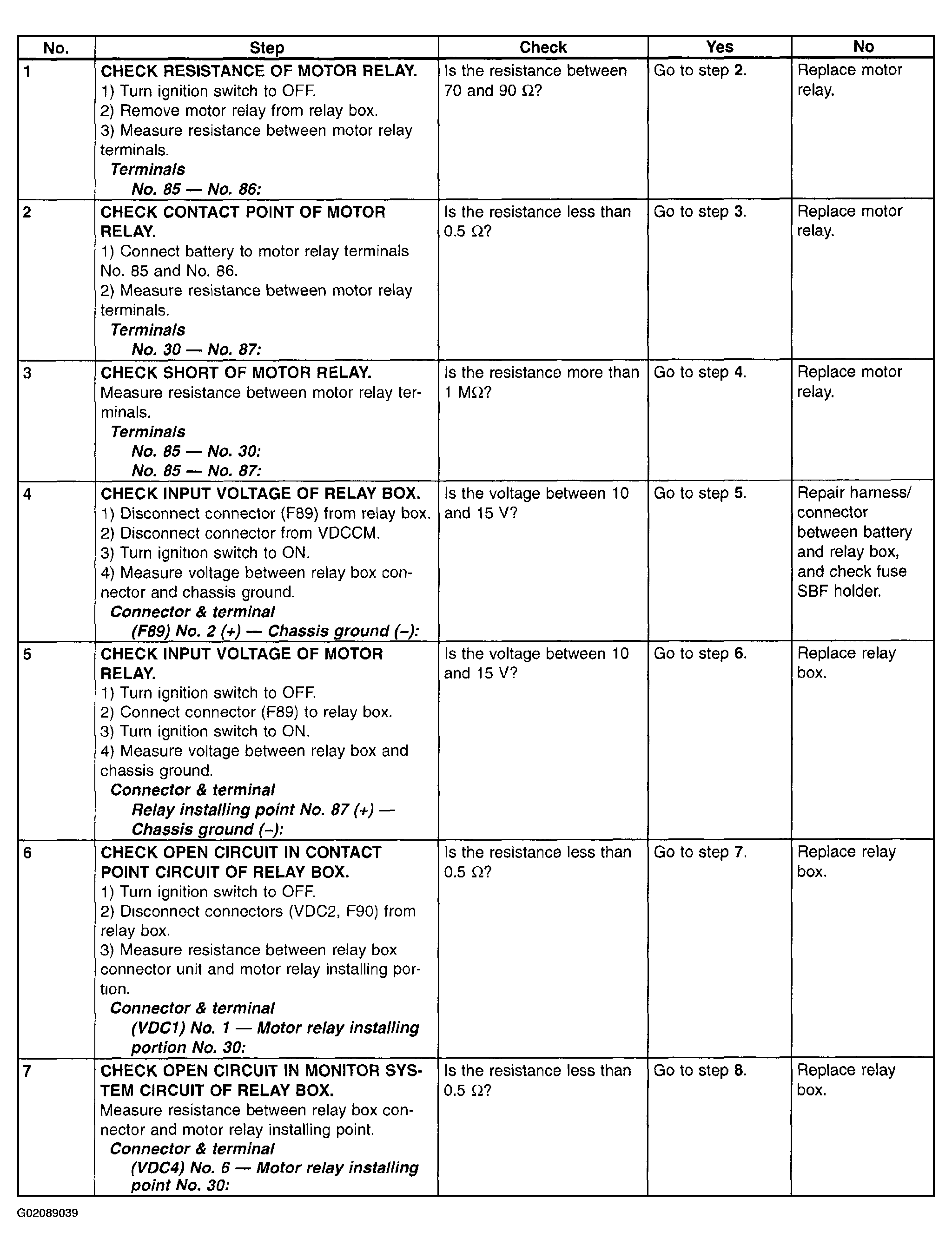

Fig 1: Diagnostic Chart - Trouble Code 52 - With Select Monitor (Motor & Motor Relay On Failure) - (1 Of 3)
G02089039

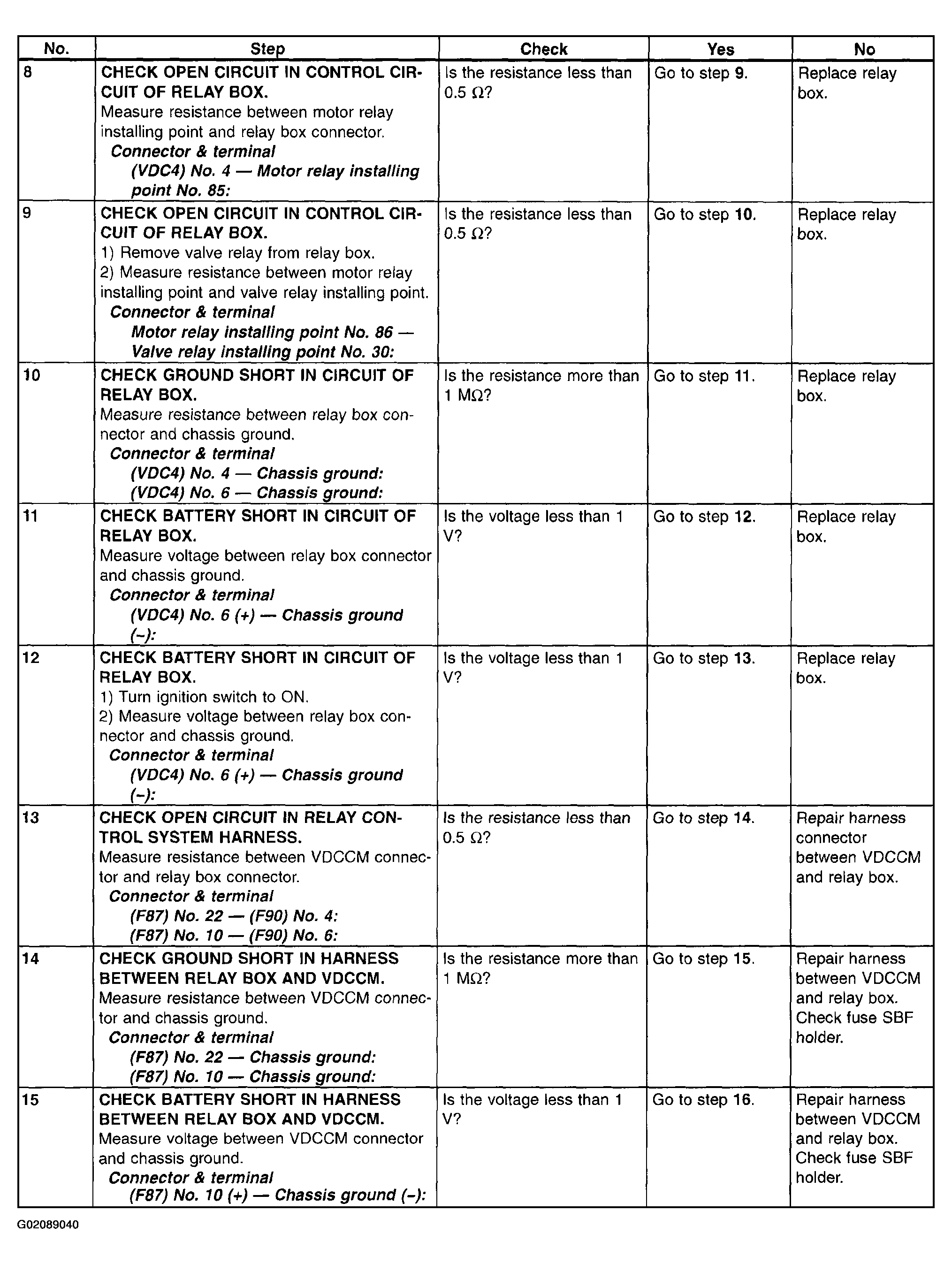

Fig 2: Diagnostic Chart - Trouble Code 52 - With Select Monitor (Motor & Motor Relay On Failure) - (2 Of 3)
G02089040

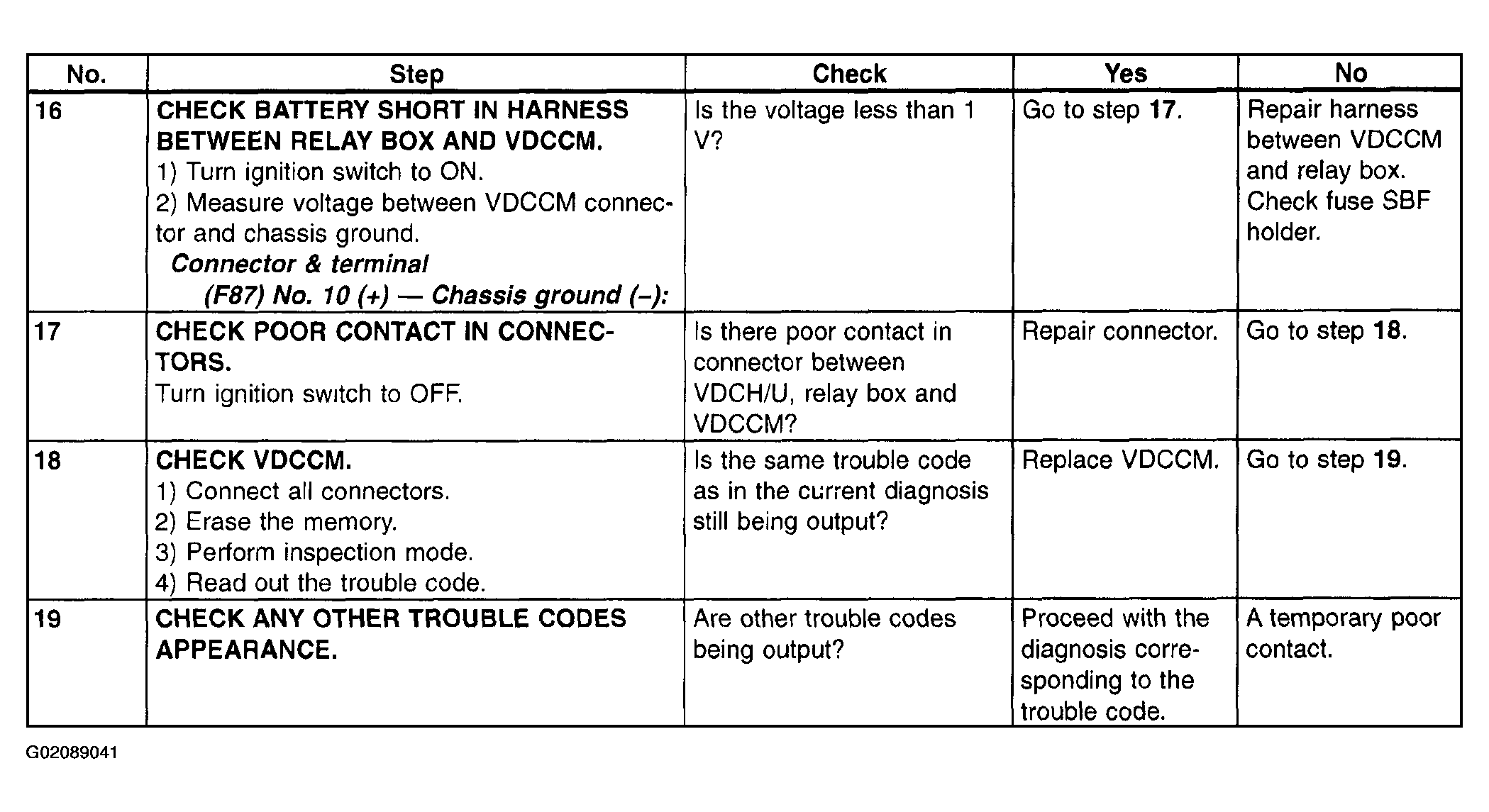

Fig 3: Diagnostic Chart - Trouble Code 52 - With Select Monitor (Motor & Motor Relay On Failure) - (3 Of 3)
G02089041
