Trouble Code 48 EAS Communication Line Grounding Shorted
>>
Wiring Diagram
Trouble Code 48 EAS Communication Line Grounding Shorted: Wiring Diagram

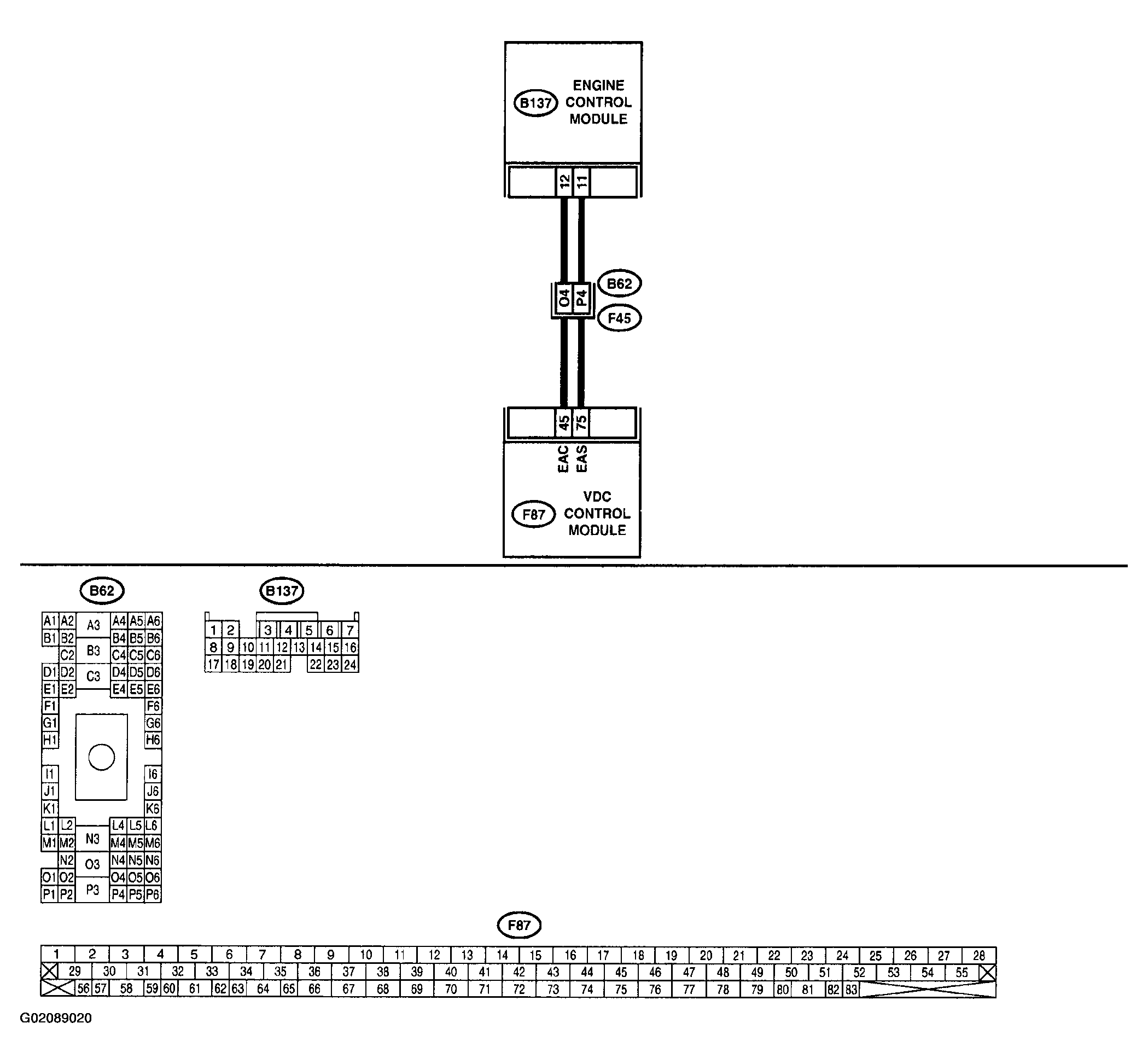

Fig 1: Wiring Diagram - Trouble Code 48 - With Select Monitor (EAS Communication Line Grounding Shorted)
