Trouble Code 47 Improper Can Communication: Wiring Diagram

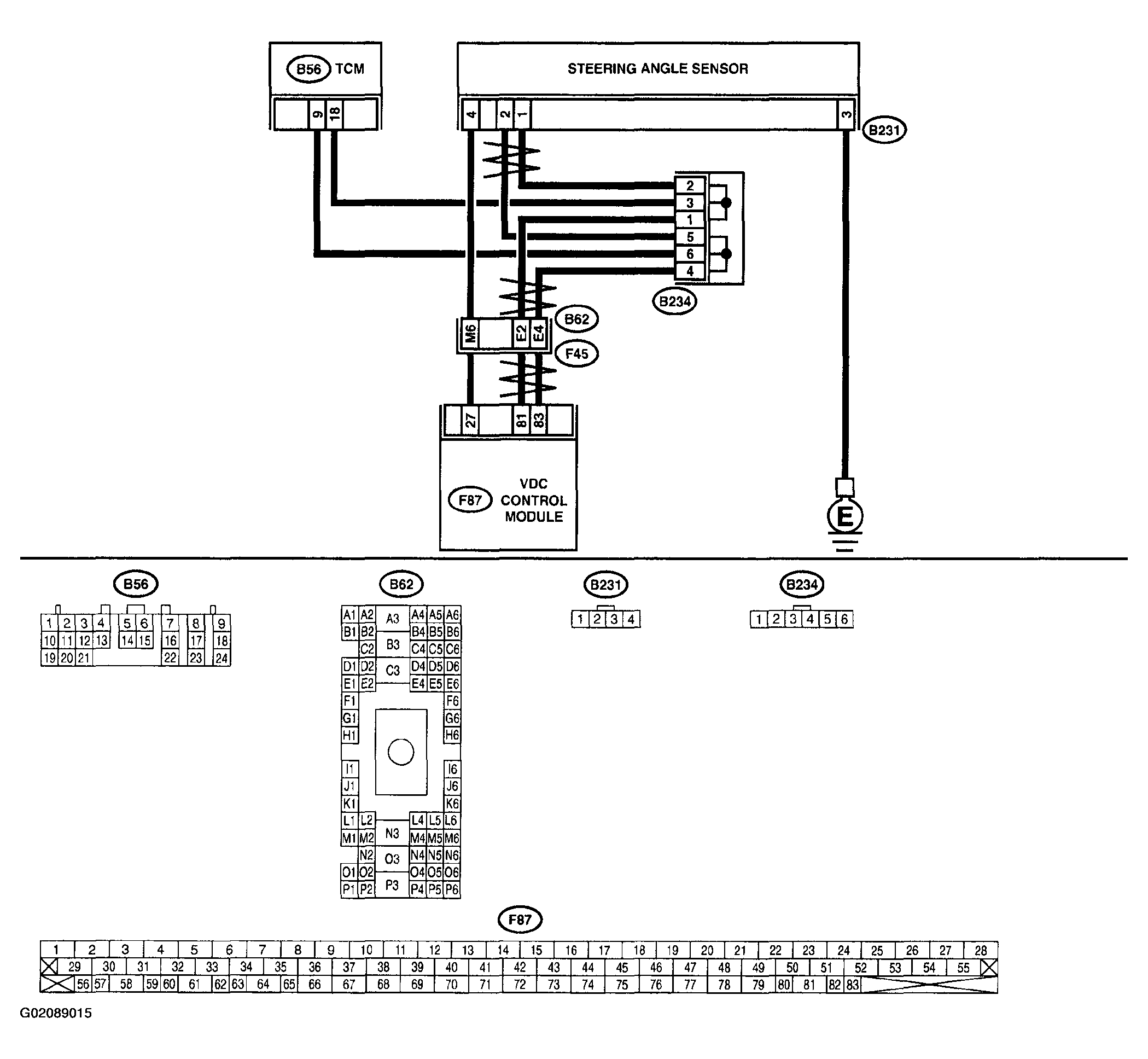

Fig 1: Wiring Diagram - Trouble Code 47 - With Select Monitor (Improper CAN Communication)

G02089015
