Trouble Code 29 Any One Of Four Abs Sensor Signal
>>
Wiring Diagram
Trouble Code 29 Any One Of Four Abs Sensor Signal: Wiring Diagram

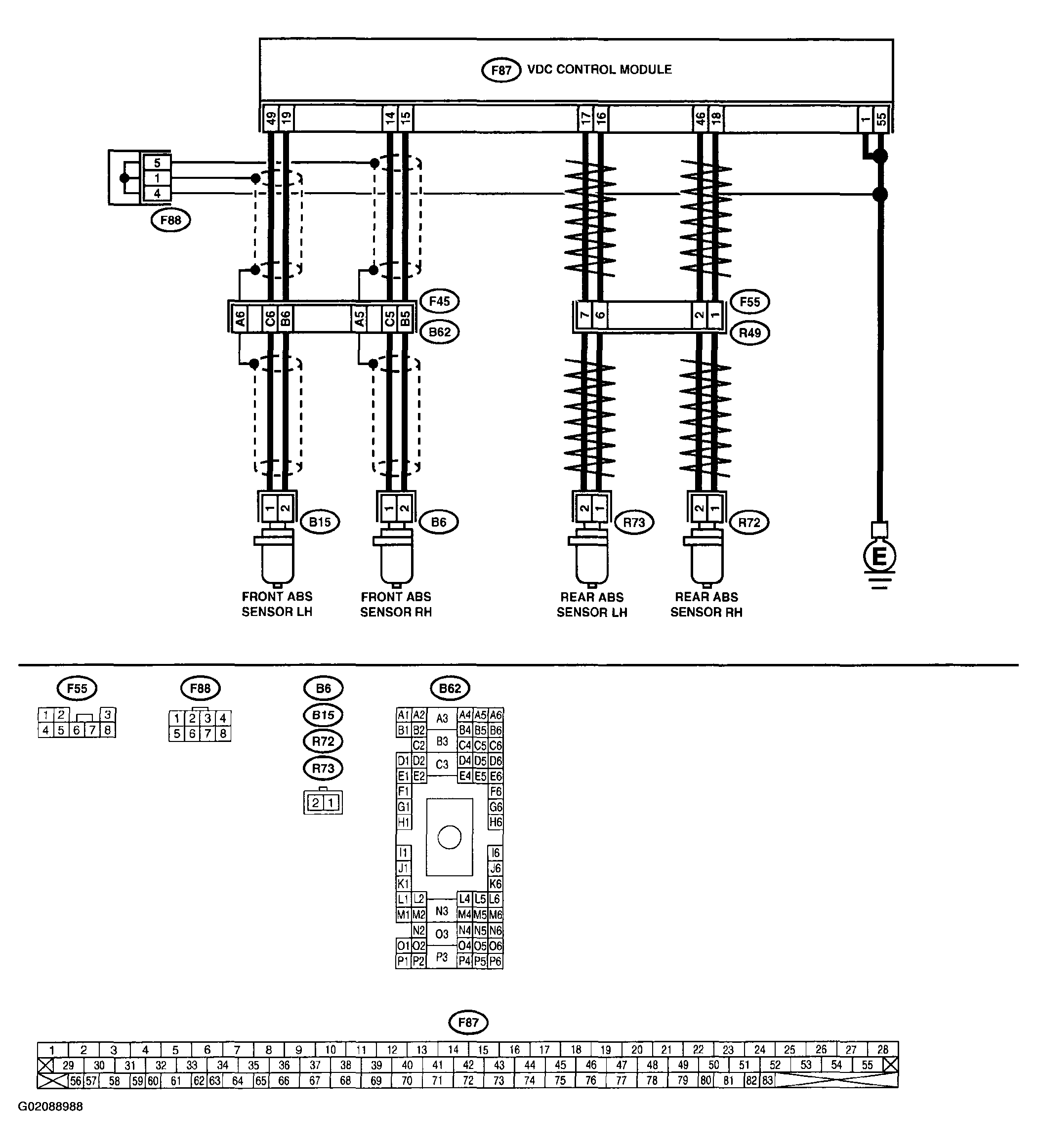

Fig 1: Wiring Diagram - Trouble Code 29 - With Select Monitor
