Trouble Code 27 Rear Left Abs Sensor Circuit Open Or Shorted Battery
>>
Wiring Diagram
Trouble Code 27 Rear Left Abs Sensor Circuit Open Or Shorted Battery: Wiring Diagram

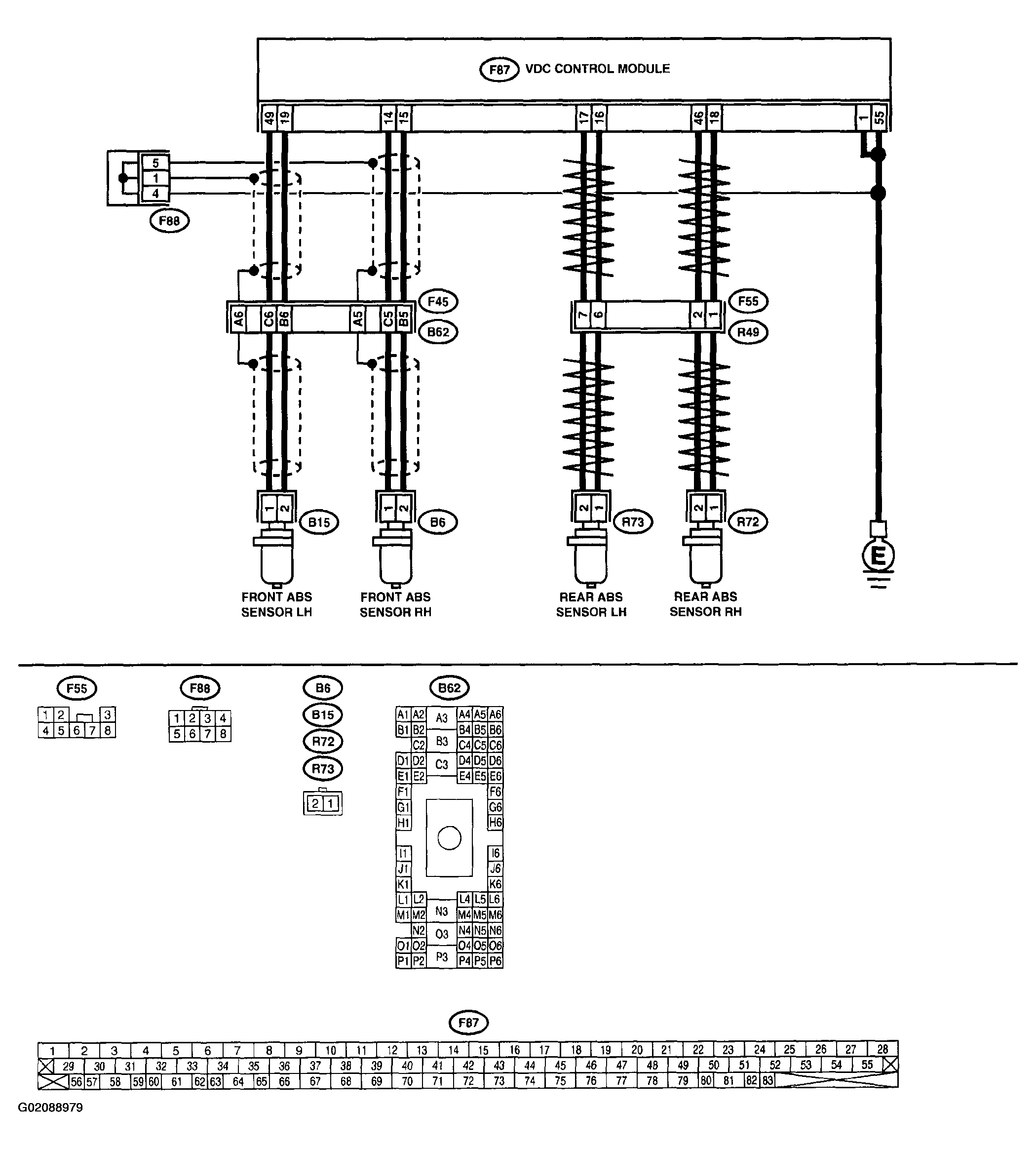

Fig 1: Wiring Diagram - Trouble Codes 21,23,25 & 27 - With Select Monitor
