Diagnostic Chart

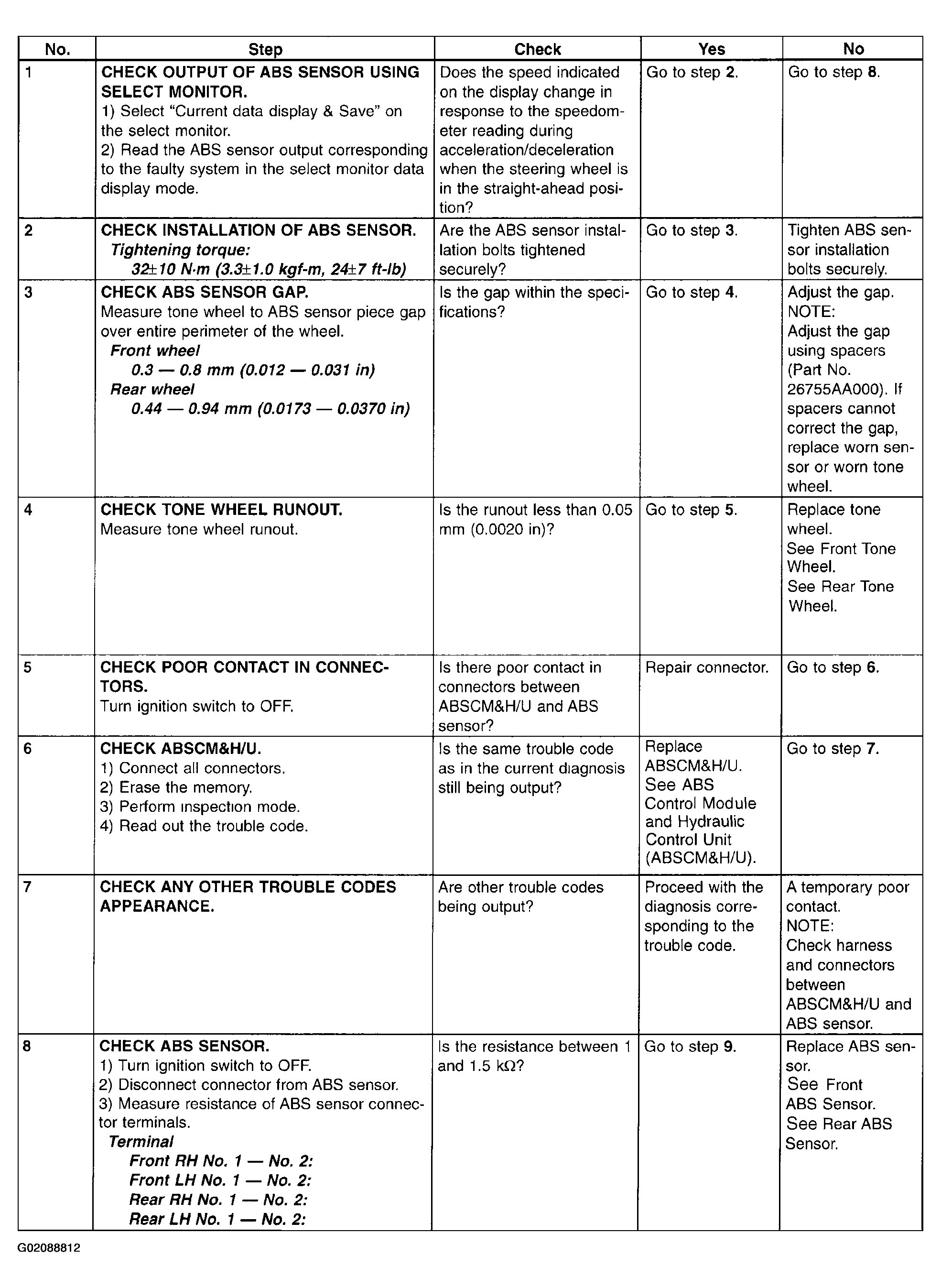

Fig 1: Trouble Code 27 - Open Or Short Circuit In Rear Left ABS Sensor Circuit - Diagnostic Chart (1 Of 4)
G02088812
Fig 2: Trouble Code 27 - Open Or Short Circuit In Rear Left ABS Sensor Circuit - Diagnostic Chart (2 Of 4)
G02088813

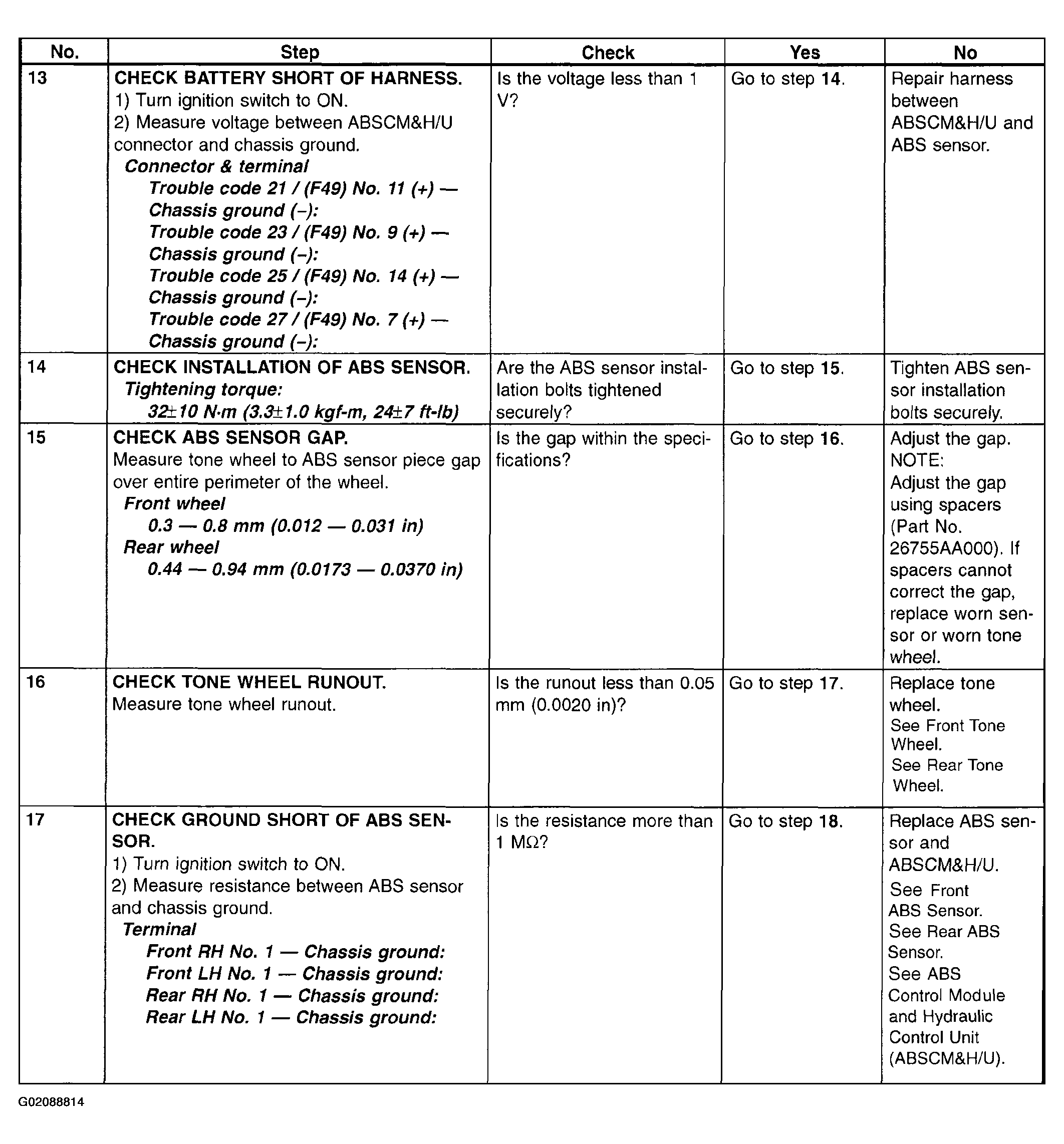

Fig 3: Trouble Code 27 - Open Or Short Circuit In Rear Left ABS Sensor Circuit - Diagnostic Chart (3 Of 4)
G02088814

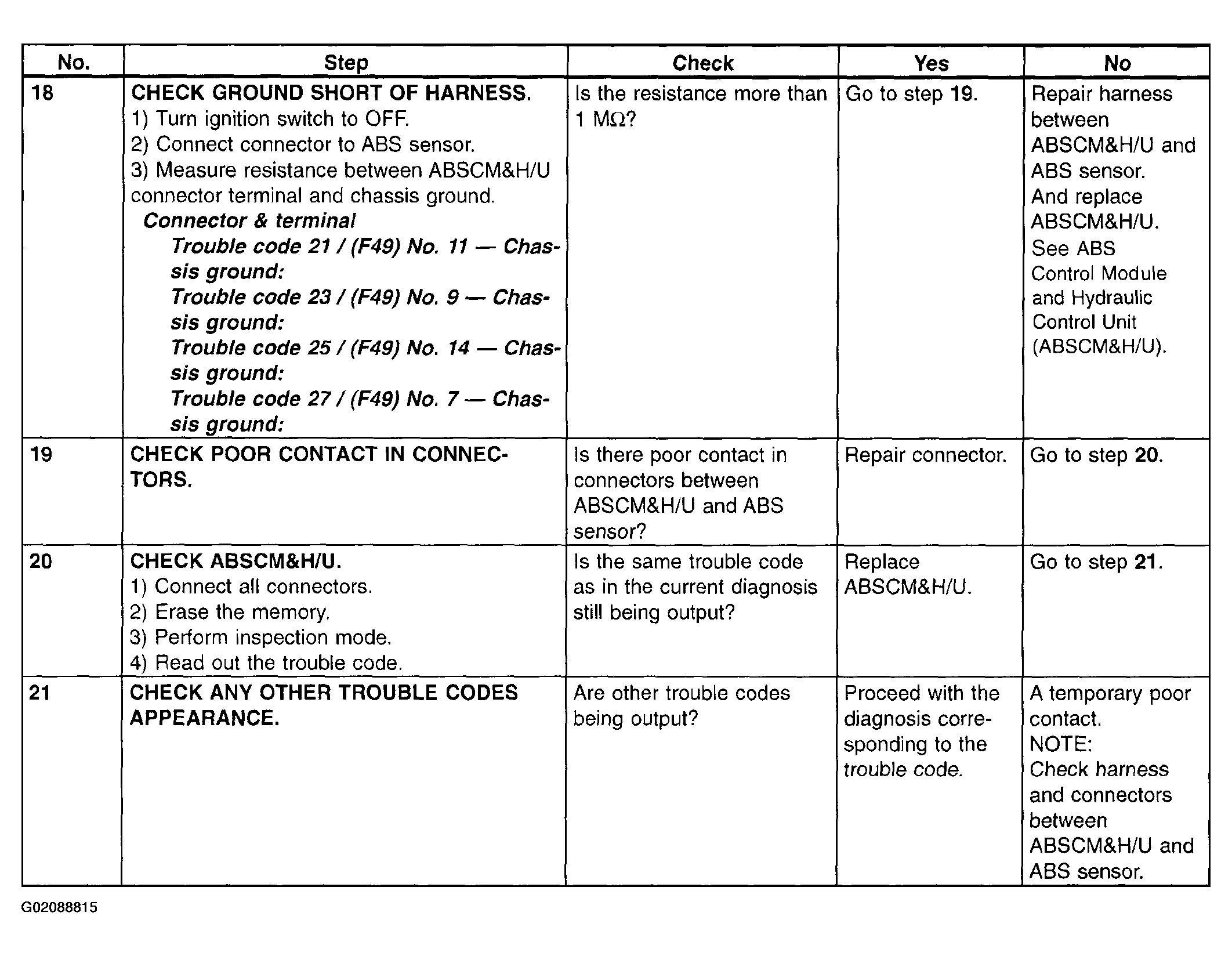

Fig 4: Trouble Code 27 - Open Or Short Circuit In Rear Left ABS Sensor Circuit - Diagnostic Chart (4 Of 4)
G02088815
