With VTD

  1. Remove the rear vehicle speed sensor, and separate the transmission case and extension case. See REMOVAL  .
  2. Remove the rear drive shaft. See Rear Drive Shaft  .
  3. Straighten the staked portion, and remove the lock nut.
    NOTE: Set the range select lever to "P".

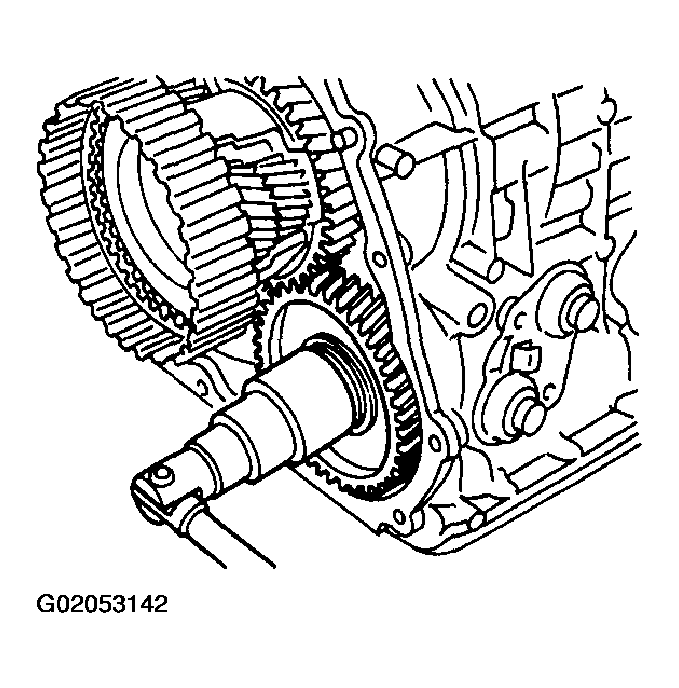

    Fig 1: Removing Lock Nut
    G02053142
  4. Using the ST1 and ST2, extract the reduction driven gear.

    ST1 499737000 PULLER

    ST2 899524100 PULLER SET

  5. Extract center differential assembly. See REMOVAL  .
