Without VTD

Using a plastic hammer, install reduction driven gear assembly, and tighten drive pinion lock nut.
CAUTION: Be sure to use a new lock nut and a washer.
NOTE:
- Set the select lever in the "P" range.
- After tightening, stake the lock nut securely.
Tightening torque:
1. 100 N.m (10.2 kgf-m, 73.8 ft-lb)

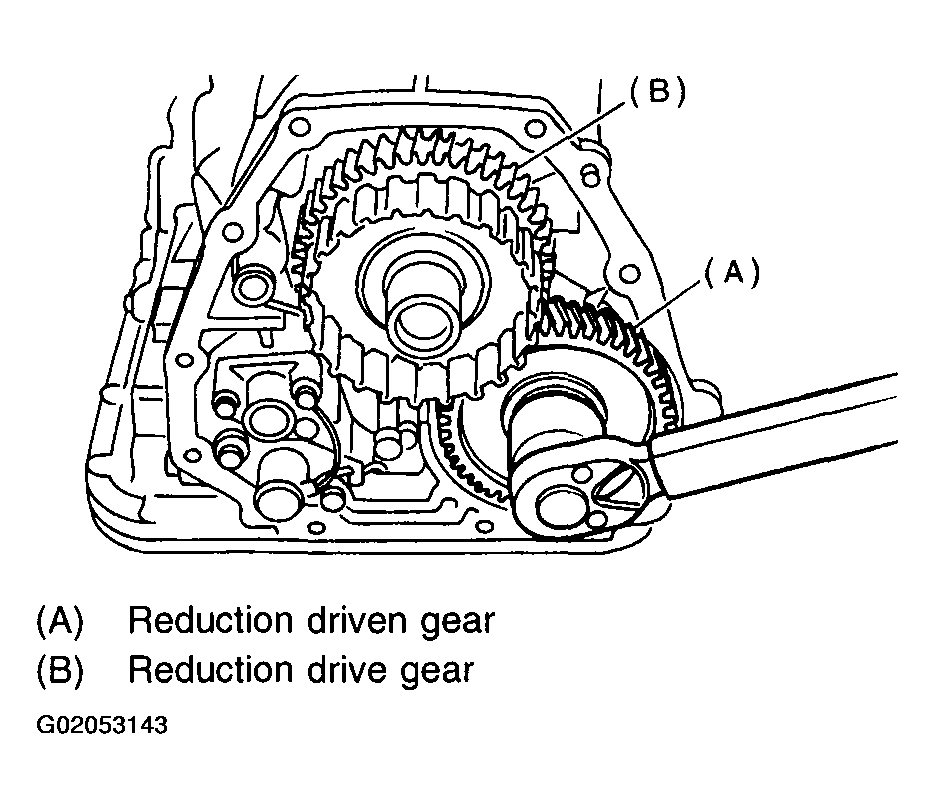

  Fig 1: Tightening Lock Nut
Combine the transmission case with the extension case, and install rear vehicle speed sensor. See INSTALLATION .
