Rear Drive Shaft: Removal

  1. Remove rear vehicle speed sensor and separate the extension case from the transmission case. See REMOVAL  .
  2. Extract the rear drive shaft from the center differential assembly.

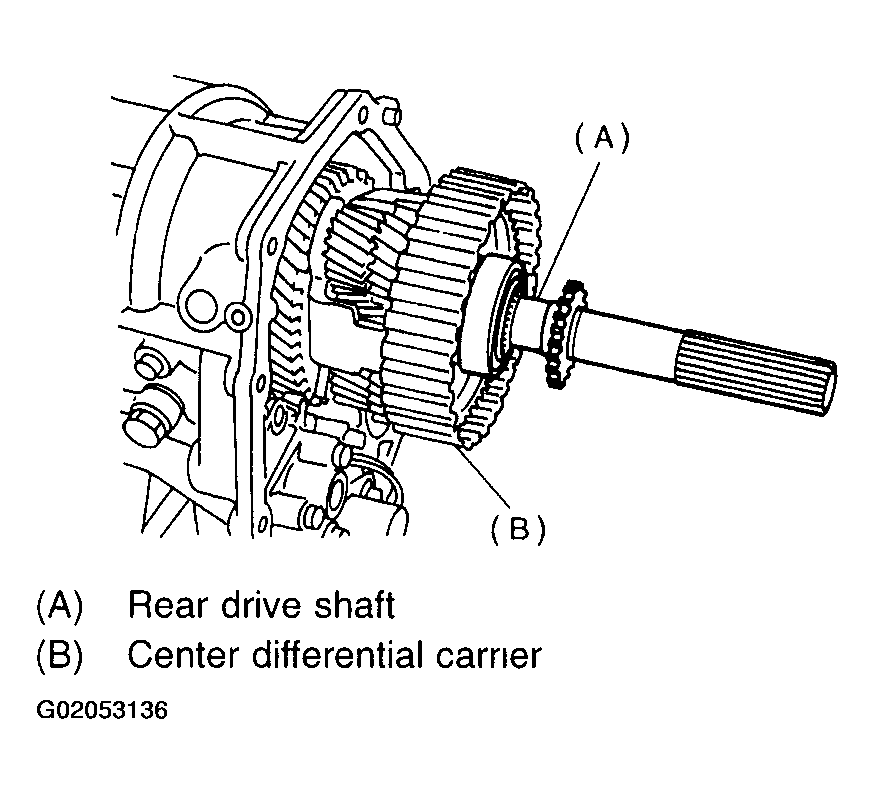

    Fig 1: Extracting Rear Drive Shaft
    G02053136
  3. Remove the drive plate and driven plate.
