One-way Clutch: Removal

  1. Extract the torque converter clutch assembly. See Torque Converter Clutch Assembly  .
  2. Remove the input shaft.

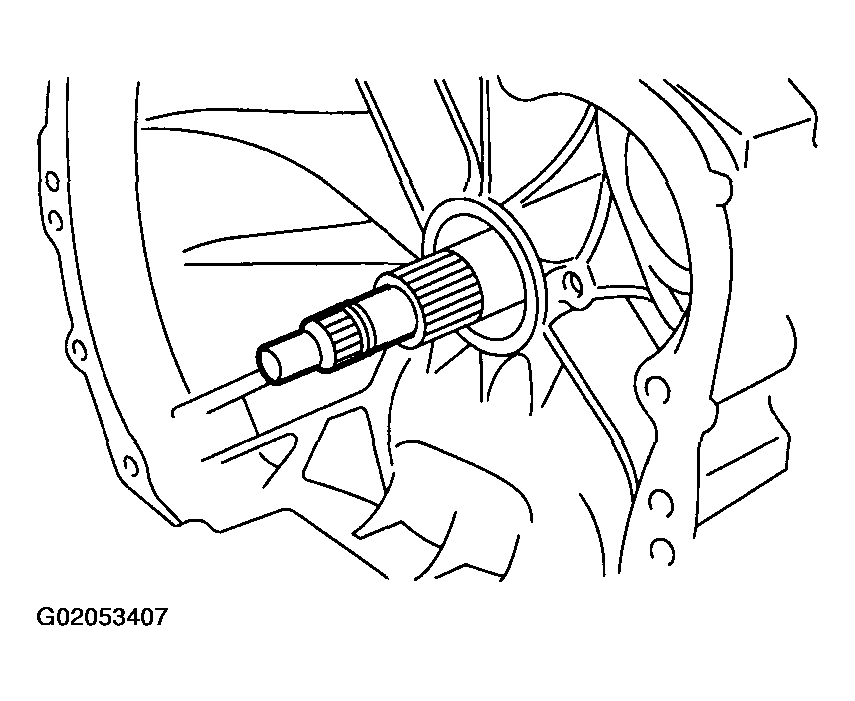

    Fig 1: Removing Input Shaft
    G02053407
  3. Disconnect transmission harness connector from stay.
    NOTE: Lift-up lever behind the connector and disconnect it from stay.
  4. Disconnect inhibitor switch connector from stay.
  5. Disconnect the air breather hose. See Air Breather Hose  .
  6. Remove the oil charger pipe. See REMOVAL  , Oil Charger Pipe.
  7. Remove the oil cooler inlet and outlet pipes. See REMOVAL  .
  8. Separation Of Torque Converter Clutch Case And Transmission Case sections
    CAUTION:
    • Be careful not to damage the oil seal and bushing inside the torque converter clutch case by the oil pump cover.
    • Be careful not to lose the rubber seal.
    NOTE: Separate these cases while tapping lightly on the housing.

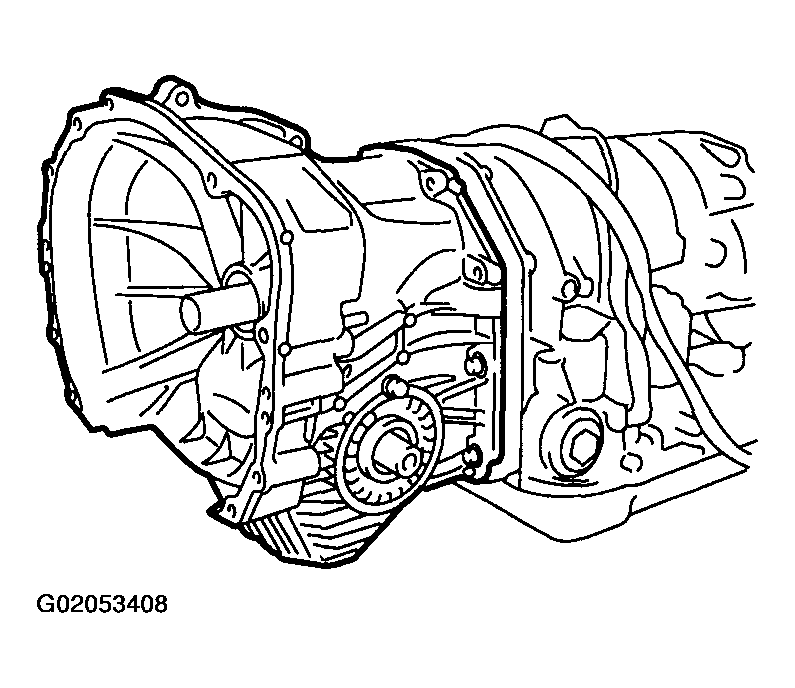

    Fig 2: Separating Torque Converter Clutch Case & Transmission Case
    G02053408
  9. Remove rear vehicle speed sensor.

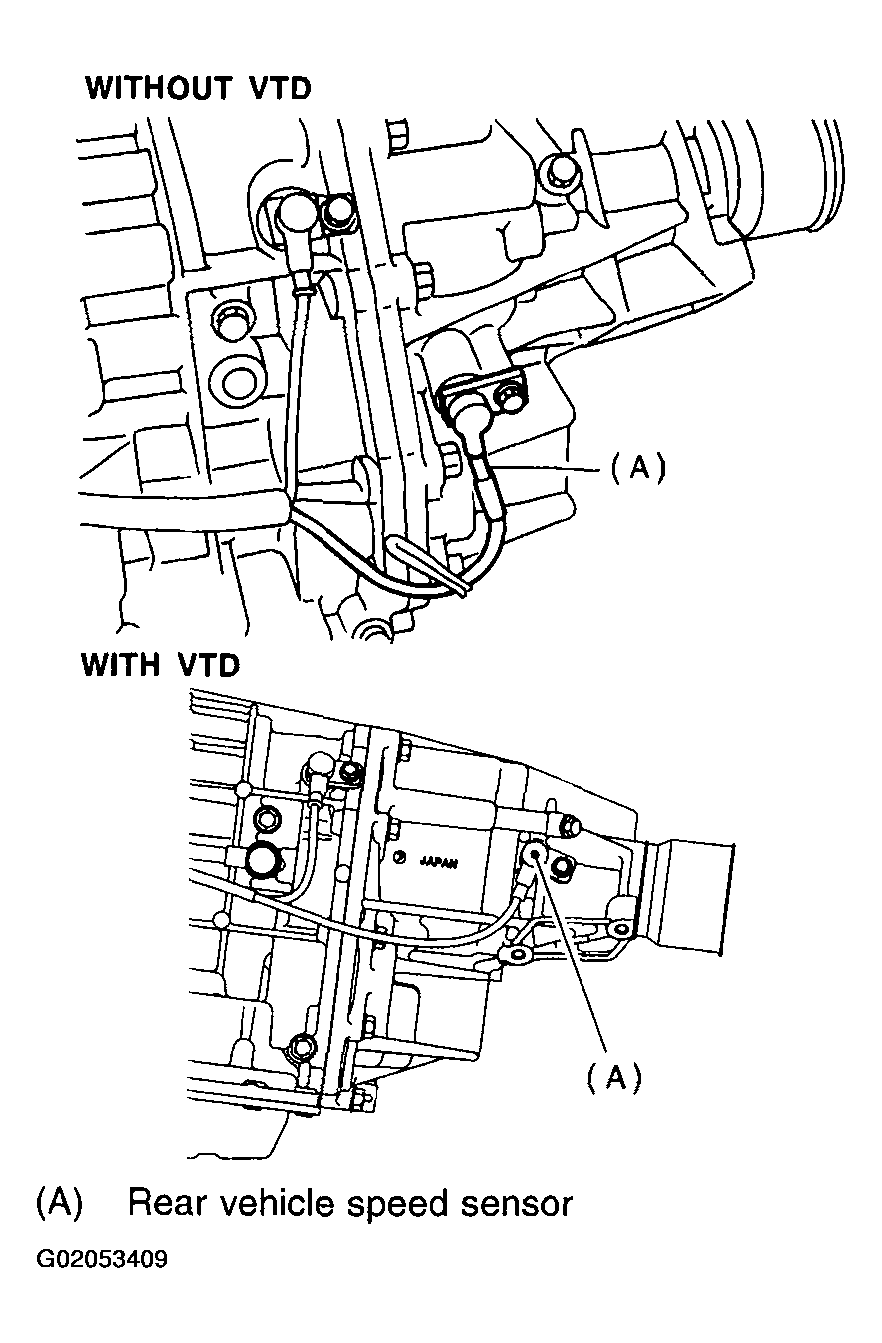

    Fig 3: Removing Rear Vehicle Speed Sensor
    G02053409
  10. Separate transmission case and extension case sections. See REMOVAL  , Extension Case.
  11. Remove reduction driven gear.

    Without VTD: See Reduction Driven Gear  .

  12. Remove reduction driven gear.

    With VTD: See Reduction Driven Gear  .

  13. Remove the reduction drive gear. See Rear Drive Shaft  .
  14. Place two wooden blocks on the workbench, and stand the transmission case with its rear end facing down.
    CAUTION:
    • Be careful not to scratch the rear mating surface of the transmission case.
    • Note that the parking rod and drive pinion protrude from the mating surface.
    Fig 4: Positioning Wooden Blocks On The Workbench
    G02053410
  15. Remove oil pan.
  16. Remove control valve assembly. See Control Valve Body Assembly  .
  17. Remove the oil pump housing.
    CAUTION: Be careful not to lose the total end play adjusting thrust washer.

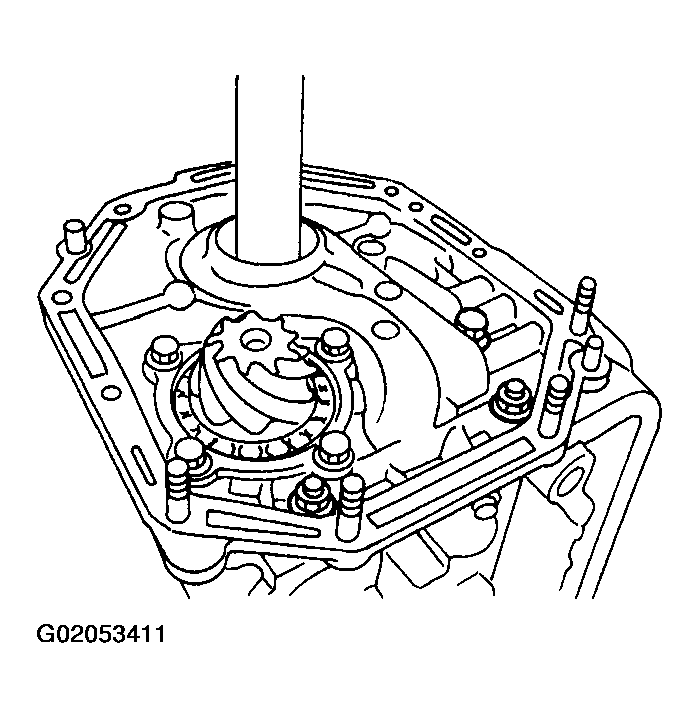

    Fig 5: Removing Oil Pump Housing
    G02053411
  18. Take out the high clutch and reverse clutch assembly. See High Clutch and Reverse Clutch  .
  19. Pull out leaf spring.
    CAUTION: Be careful not to bend leaf spring during removal.
    NOTE: Remove it while pressing down on lower leaf spring.

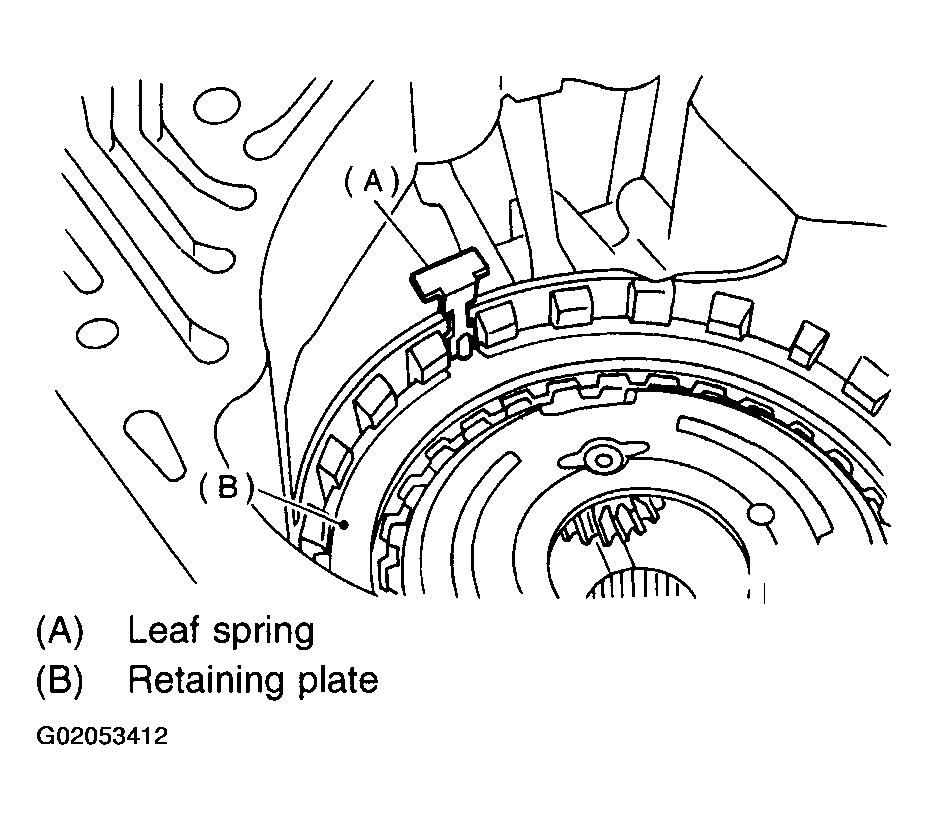

    Fig 6: Pulling Out Leaf Spring
    G02053412
  20. Remove snap ring and thrust needle bearing.

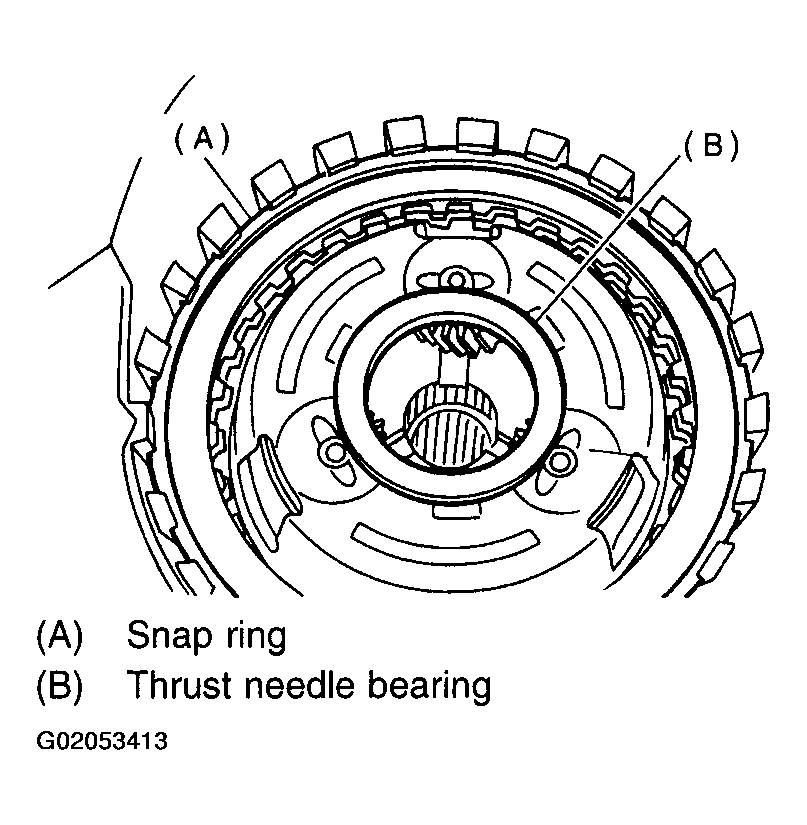

    Fig 7: Removing Snap Ring & Thrust Needle Bearing
    G02053413
  21. Take out retaining plate, drive plate and driven plate of 2-4 brake.

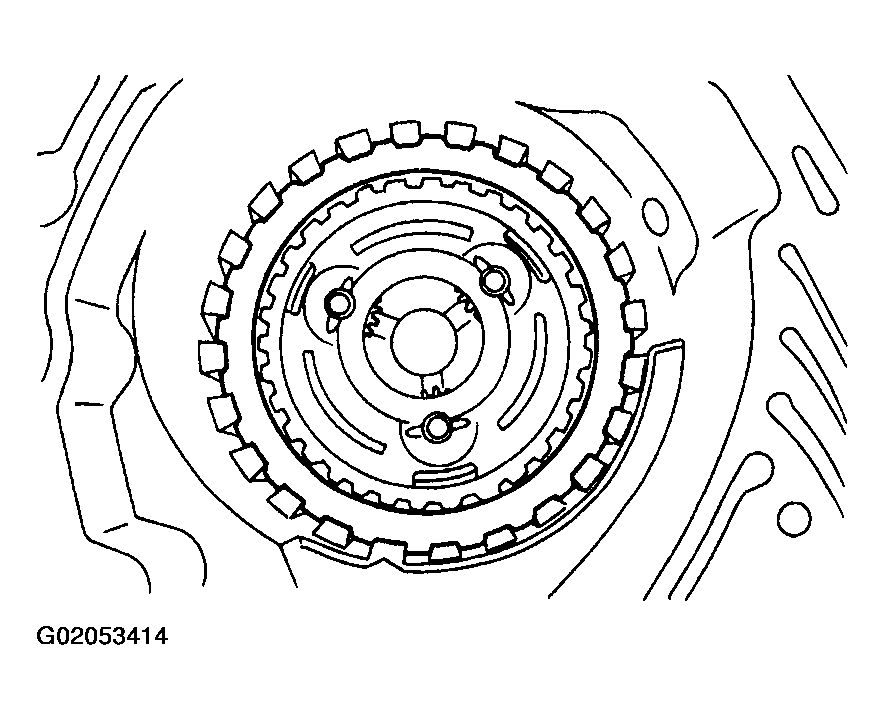

    Fig 8: Taking Out Retaining Plate, Drive Plate & Driven Plate Of 2-4 Brake
    G02053414
  22. Take out the thrust needle bearing, planetary gear assembly. See Planetary Gear and Low Clutch  .
  23. Remove snap ring.

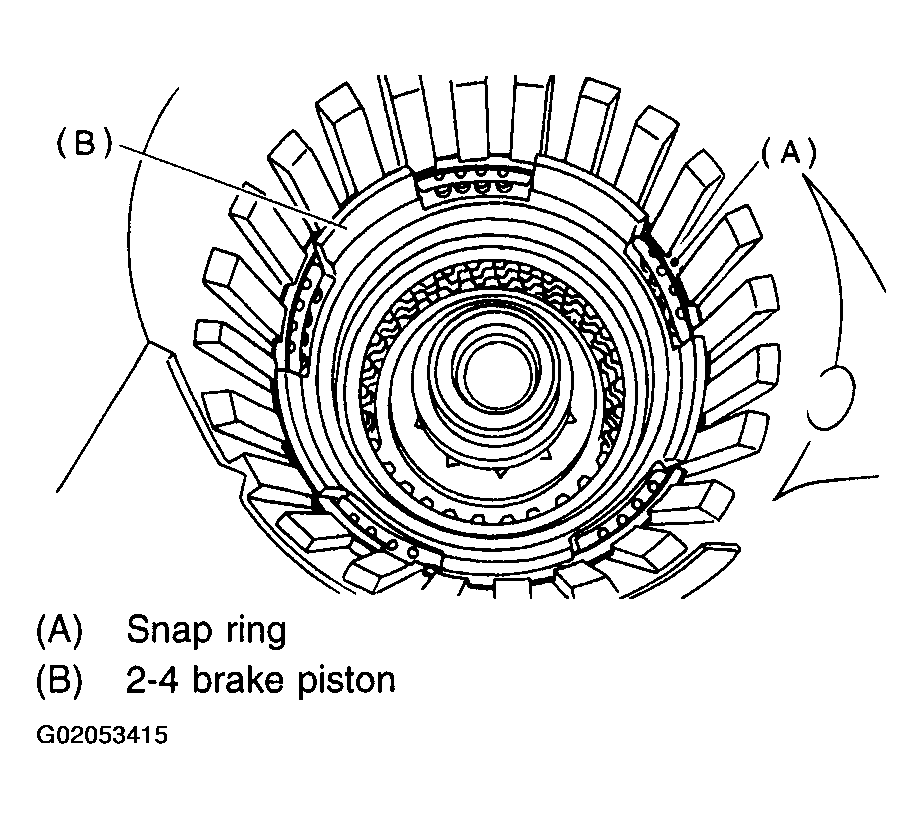

    Fig 9: Removing Snap Ring
    G02053415
  24. Take out 2-4 brake return spring, piston and piston retainer. See 2-4 Brake  .
  25. Pull out leaf spring.
    CAUTION: Be careful not to bend leaf spring during removal.

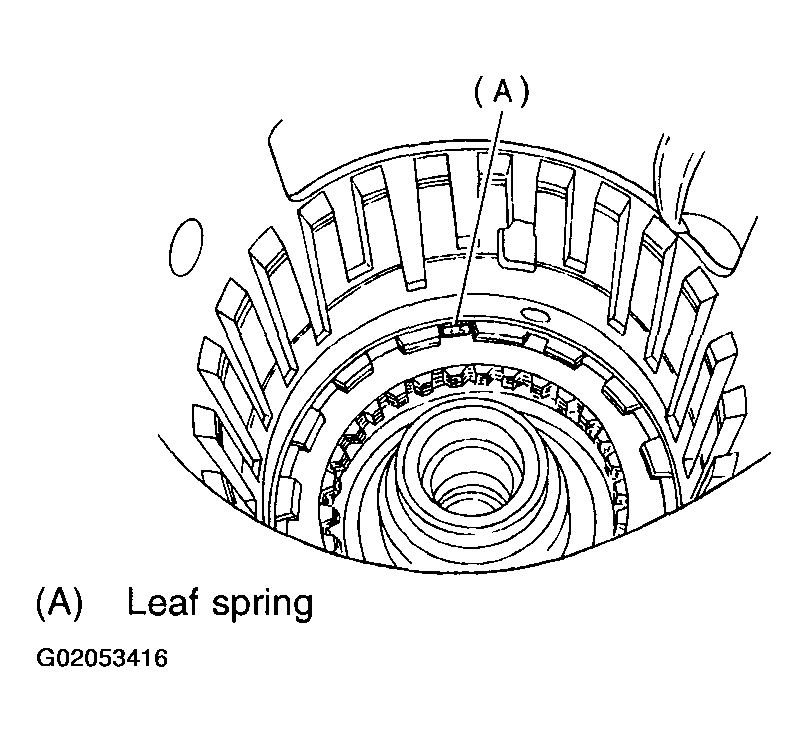

    Fig 10: Pulling Out Leaf Spring
    G02053416
  26. Remove snap ring.

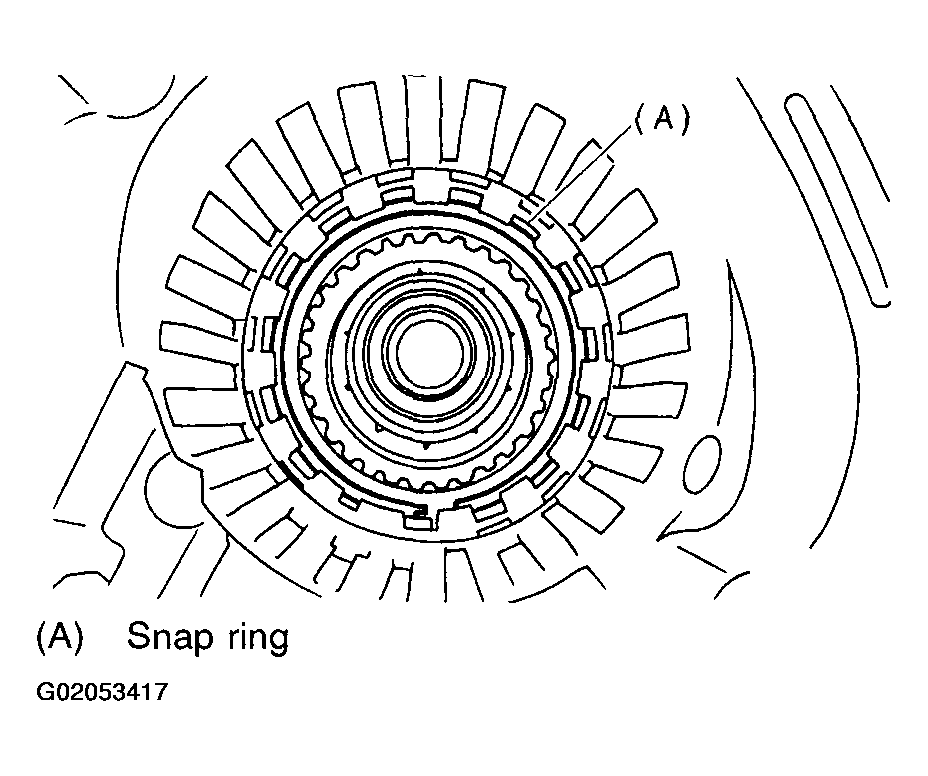

    Fig 11: Removing Snap Ring
    G02053417
  27. Take out retaining plate, drive plate, driven plate and dish plate.

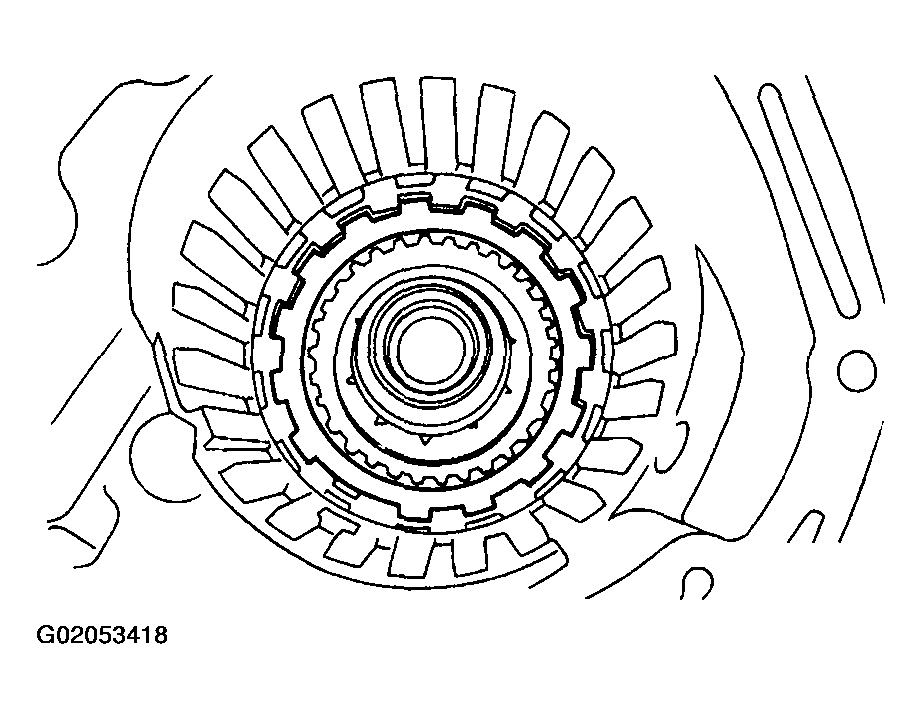

    Fig 12: Taking Out Retaining Plate, Drive Plate, Driven Plate & Dish Plate
    G02053418
  28. Turn the transmission case upside down, and then take out the socket bolts while holding the one-way clutch inner race with hand.

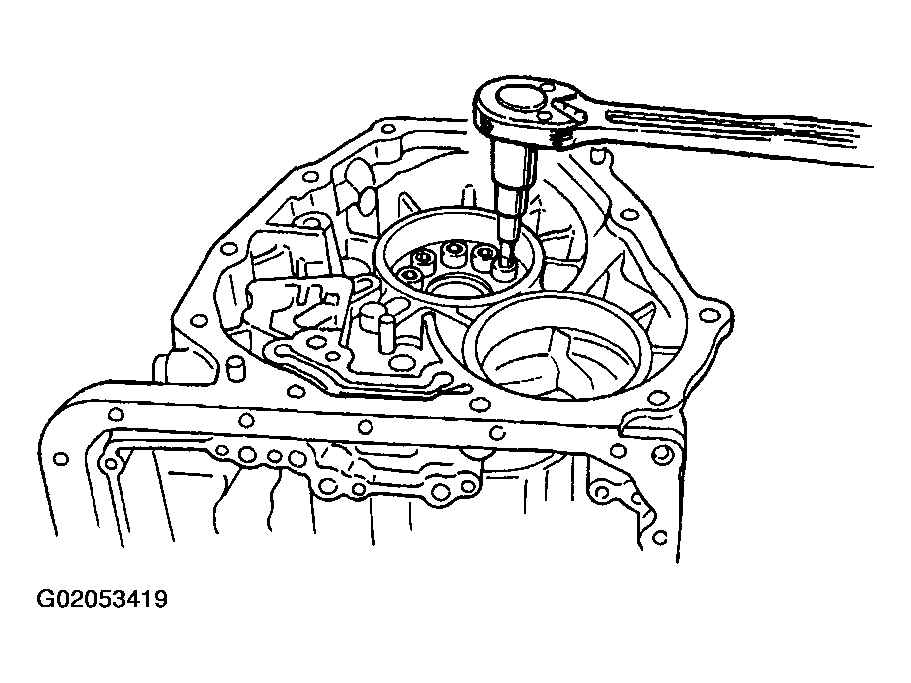

    Fig 13: Taking Out Socket Bolts
    G02053419
