General Description
>>
Component
>>
Planetary Gear And 2-4 Brake
Planetary Gear And 2-4 Brake

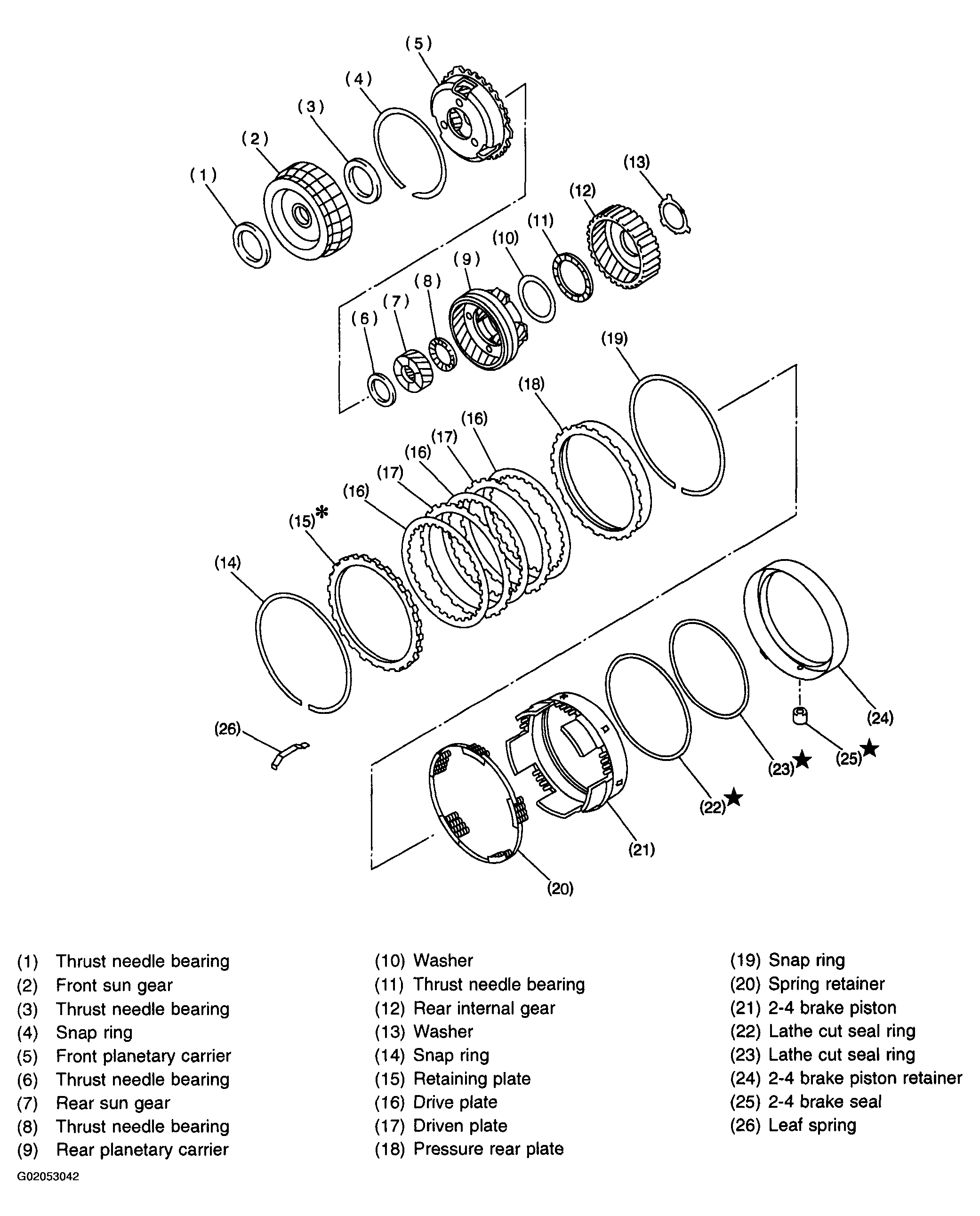

Fig 1: Exploded View Of Planetary Gear & 2-4 Brake
