Crossmember And Cushion Rubber
- Install the rear cushion rubber.
Tightening torque:
- 38 N-m (3.9 kgf-m, 28 ft-Ib)

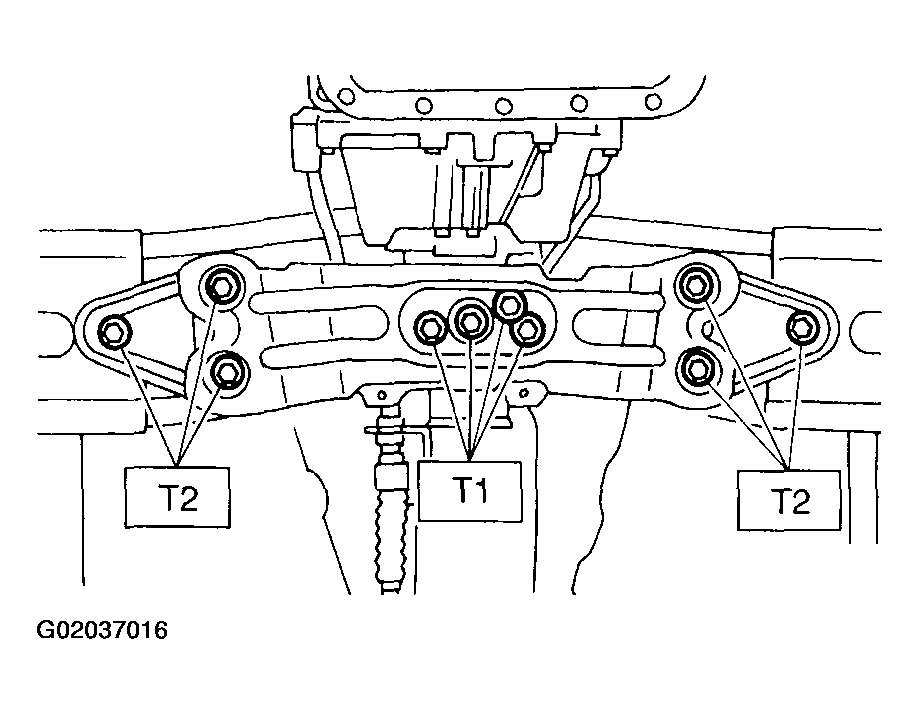

- Install the crossmember.
Tightening torque:
- T1: 35 N-m (3.6 kgf-m, 26 ft-Ib)
- T2: 75 N-m (7.6 kgf-m, 55 ft-Ib)
- Remove the transmission jack.
- Install the heat shield cover.
- Install the front center, rear exhaust pipes and the muffler.
