Transfer Clutch Pressure Test: Inspection: Evaluation

Except VTD model
NOTE: If oil pressure is not produced or if it does not change in the AWD mode, the transfer duty solenoid or transfer valve assembly may be malfunctioning. If oil pressure is produced in the FWD mode, the problem is similar to that in the AWD mode.

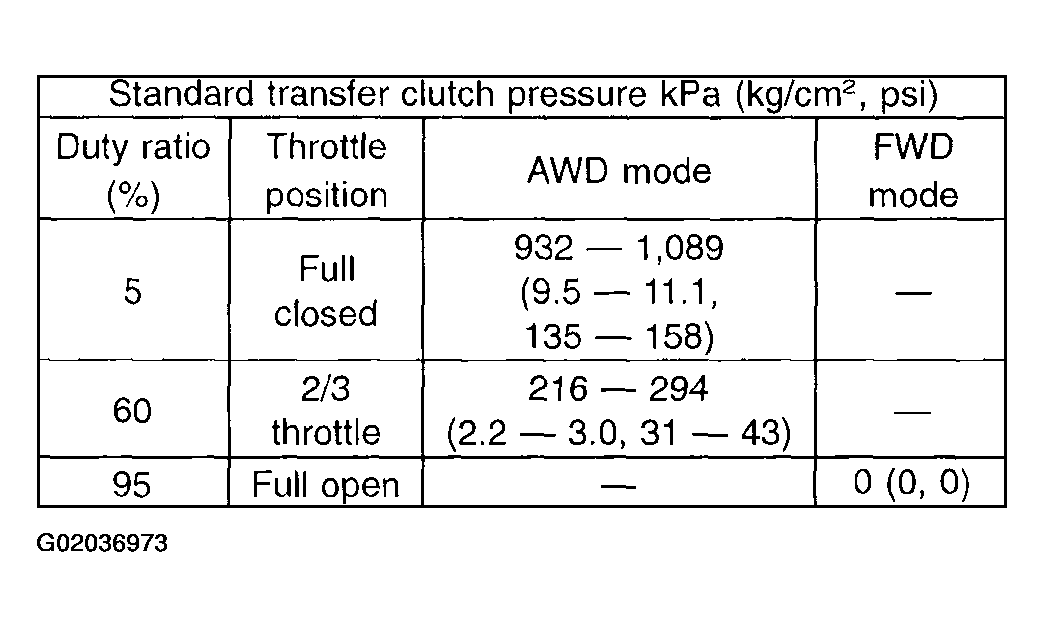

Fig 1: Evaluating, Except VTD Model
VTD model

Fig 2: Evaluating VTD Model
