3.0 L Model

  1. Install the oil cooler outlet and inlet pipes.
    CAUTION: Be sure to use a new aluminum washer.

    Tightening torque:

    1. T1:  44 N.m (4.5 kgf-m, 32.5 ft-lb)
    2. T2: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

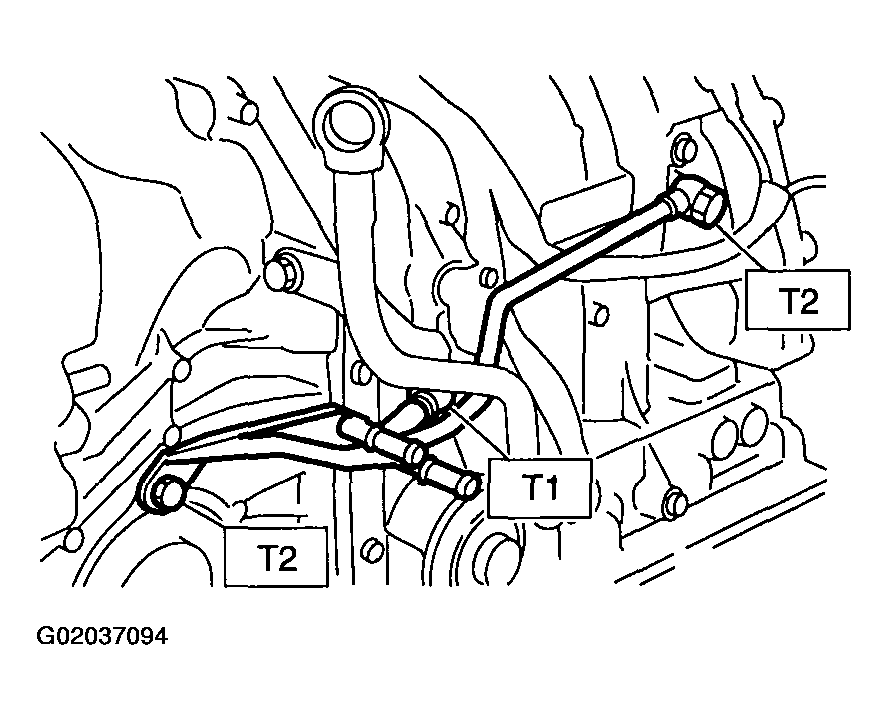

      Fig 1: Installing Oil Cooler Outlet & Inlet Pipes
      G02037094
  2. Install ATF cooler pipe to frame.

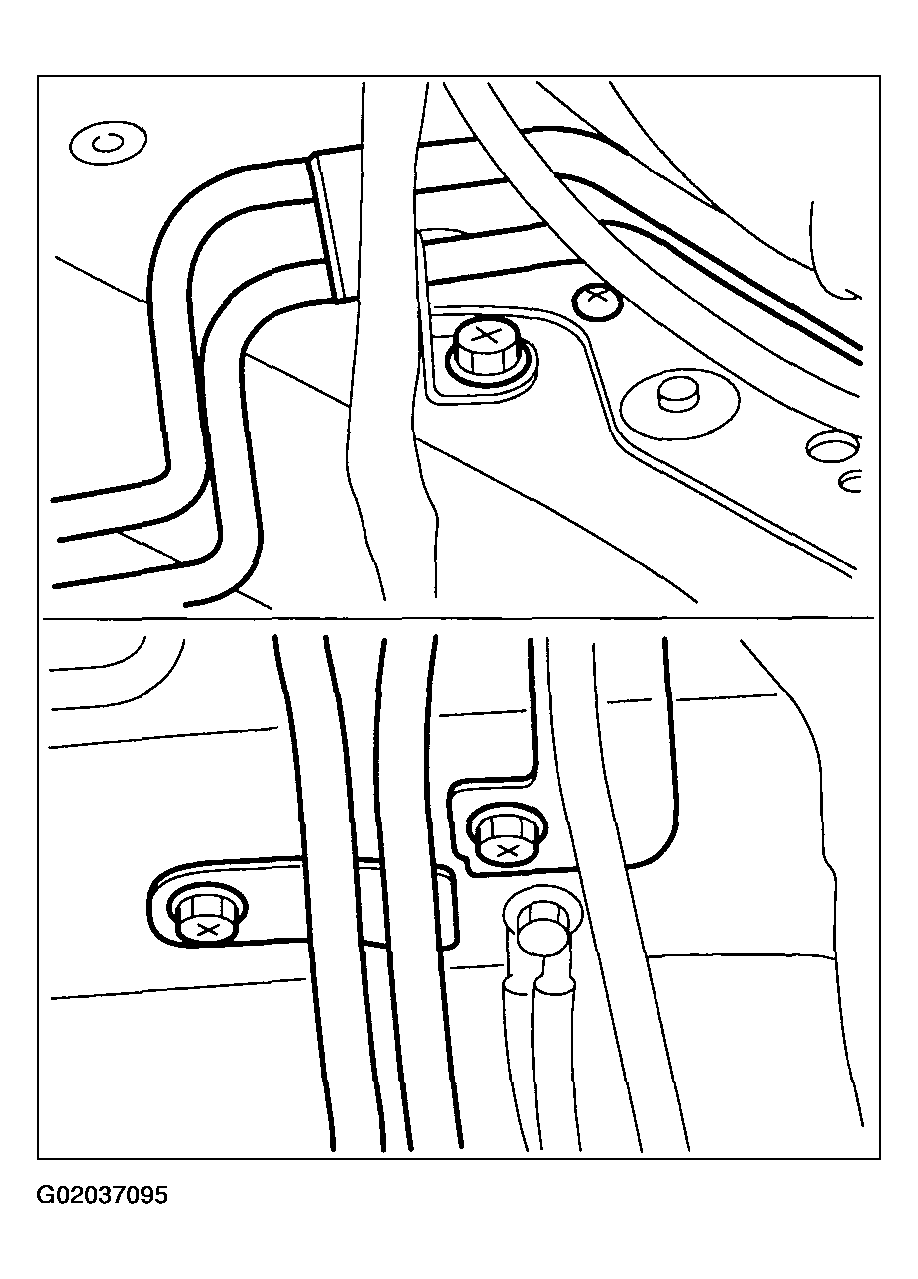

    Fig 2: Installing ATF Cooler Pipe To Frame
    G02037095
  3. Connect ATF cooler hose to transmission.
    NOTE:
    • Install so that the hose is not folded over, excessively bent, or twisted.
    • Be careful to insert the hose to the specified position.

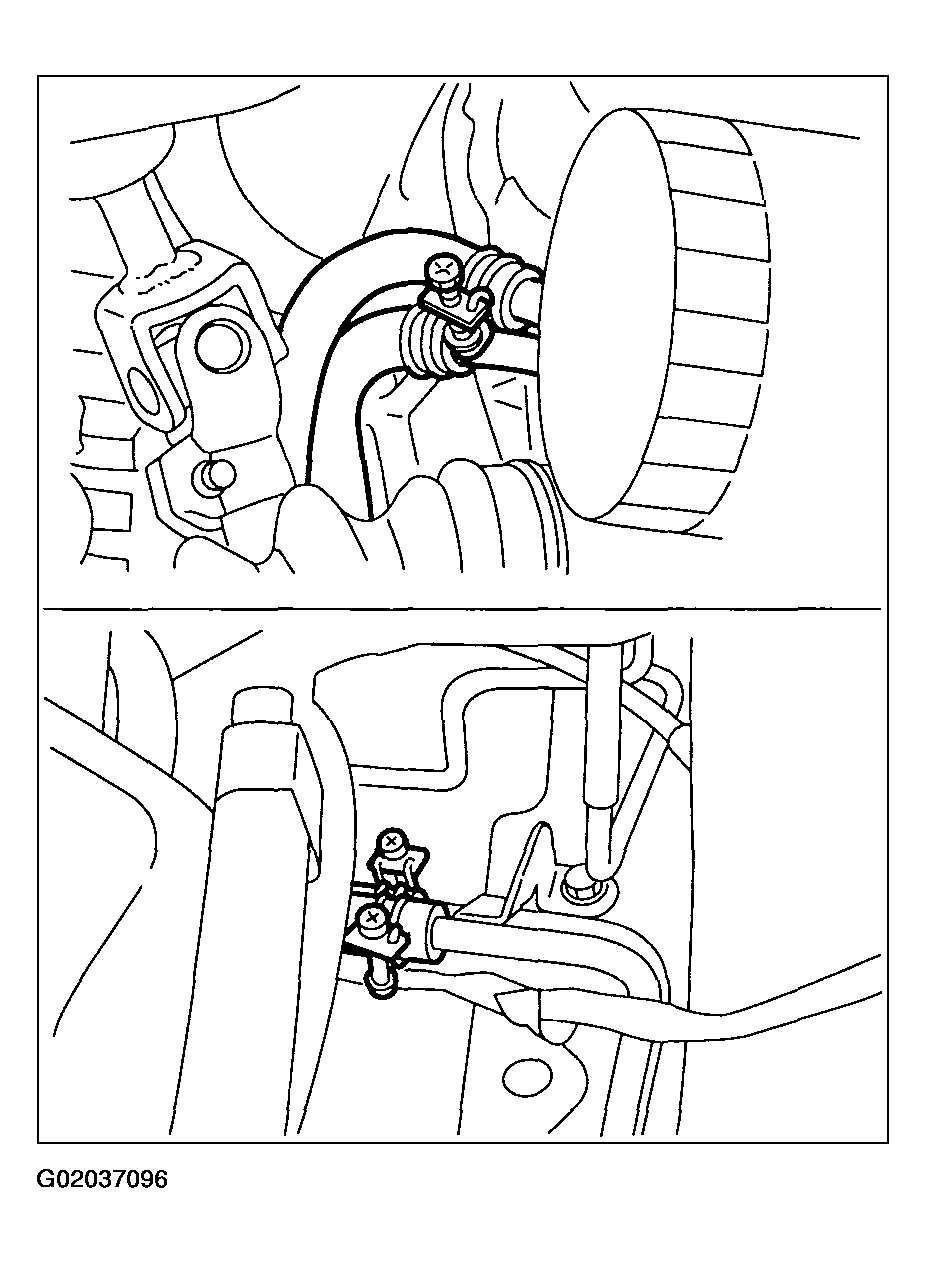

    Fig 3: Connecting ATF Cooler Hose To Transmission
    G02037096
  4. Connect ATF cooler hoses from ATF filter.
    NOTE:
    • Install so that the hose is not folded over, excessively bent, or twisted.
    • Be careful to insert the hose to the specified position.

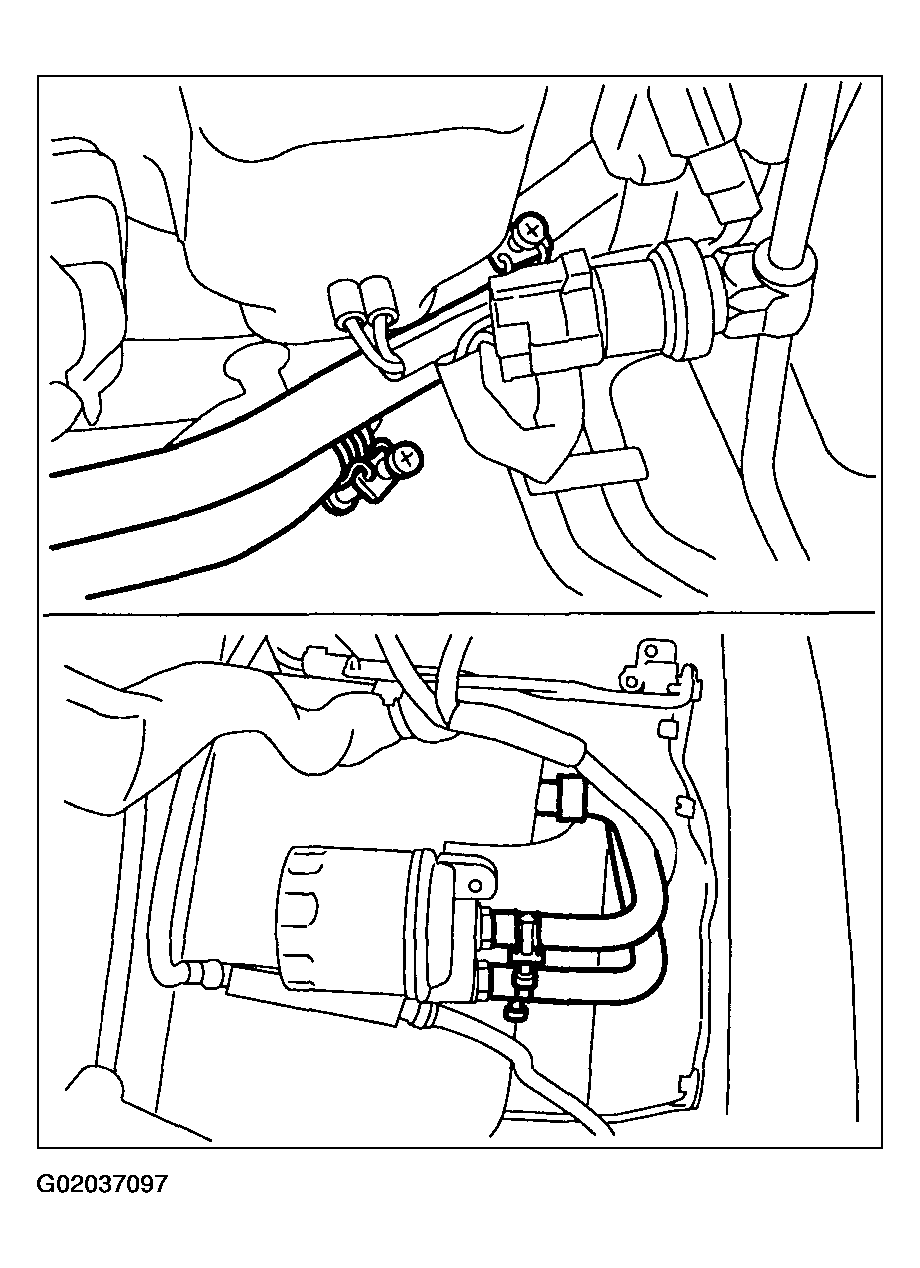

    Fig 4: Connecting ATF Cooler Hoses From ATF Filter
    G02037097
  5. Connect ATF cooler hoses from radiator.
    NOTE:
    • Install so that the hose is not folded over, excessively bent, or twisted.
    • Be careful to insert the hose to the specified position.

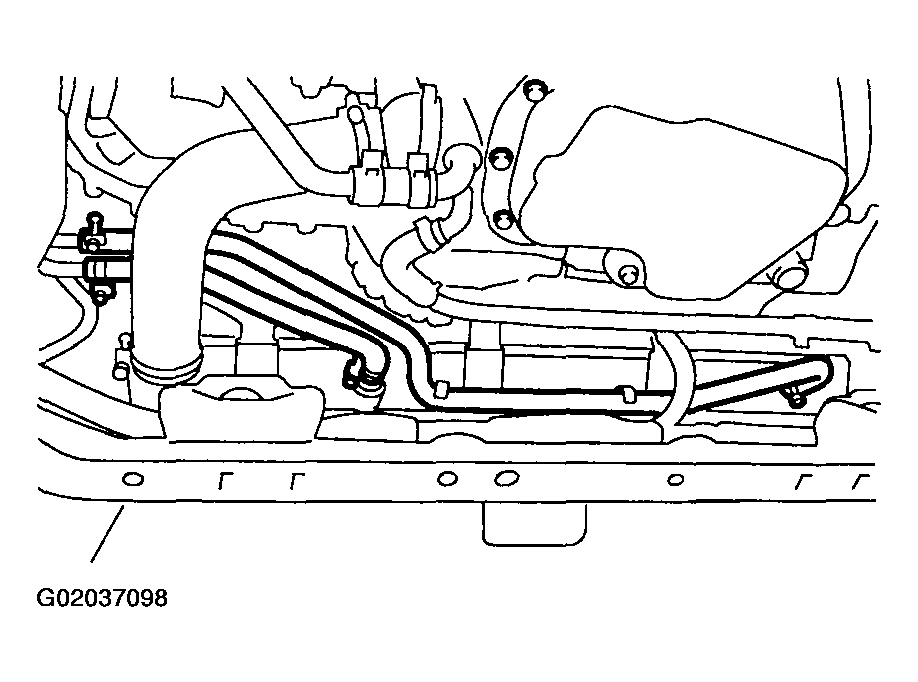

    Fig 5: Connecting ATF Cooler Hoses From Radiator
    G02037098
  6. Install front left mud guard. See MUD GUARD .
  7. Install the under cover.
  8. Install battery and washer tank.
  9. Fill ATF. See Automatic Transmission Fluid .
