2.5 L Model

Install the oil cooler outlet and inlet pipes.
CAUTION: Be sure to use a new aluminum washer.

Tightening torque:
1. T1: 44 N.m (4.5 kgf-m, 32.5 ft-lb)
2. T2: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

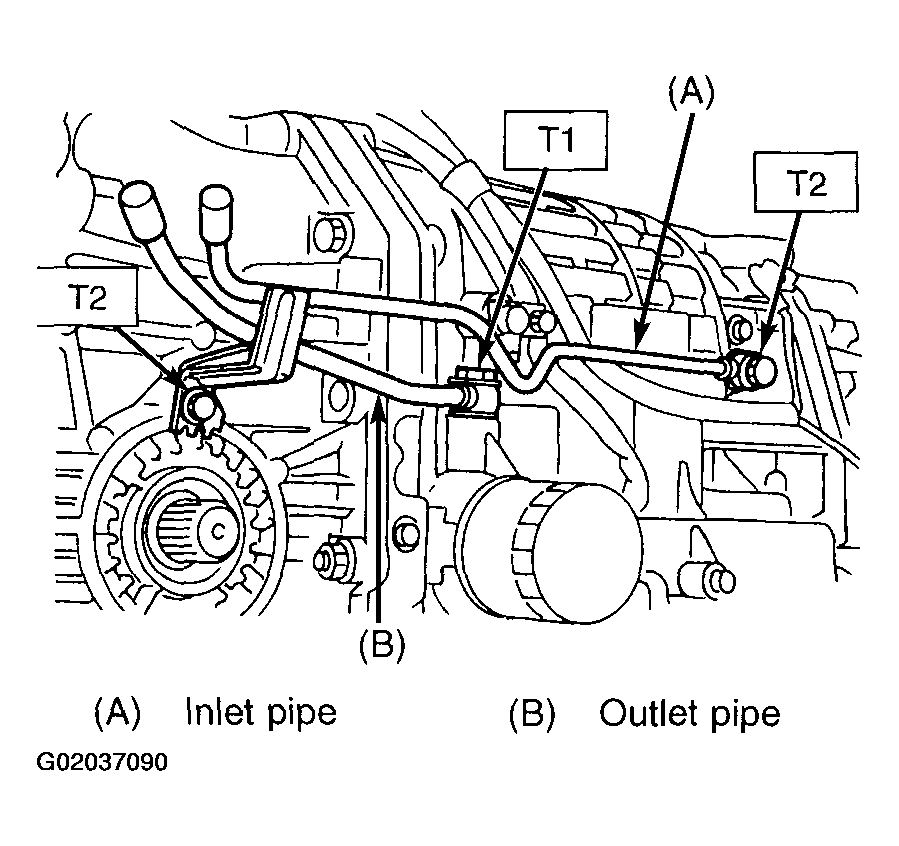

  Fig 1: Installing Oil Cooler Outlet & Inlet Pipes
Install ATF cooler pipe to frame.

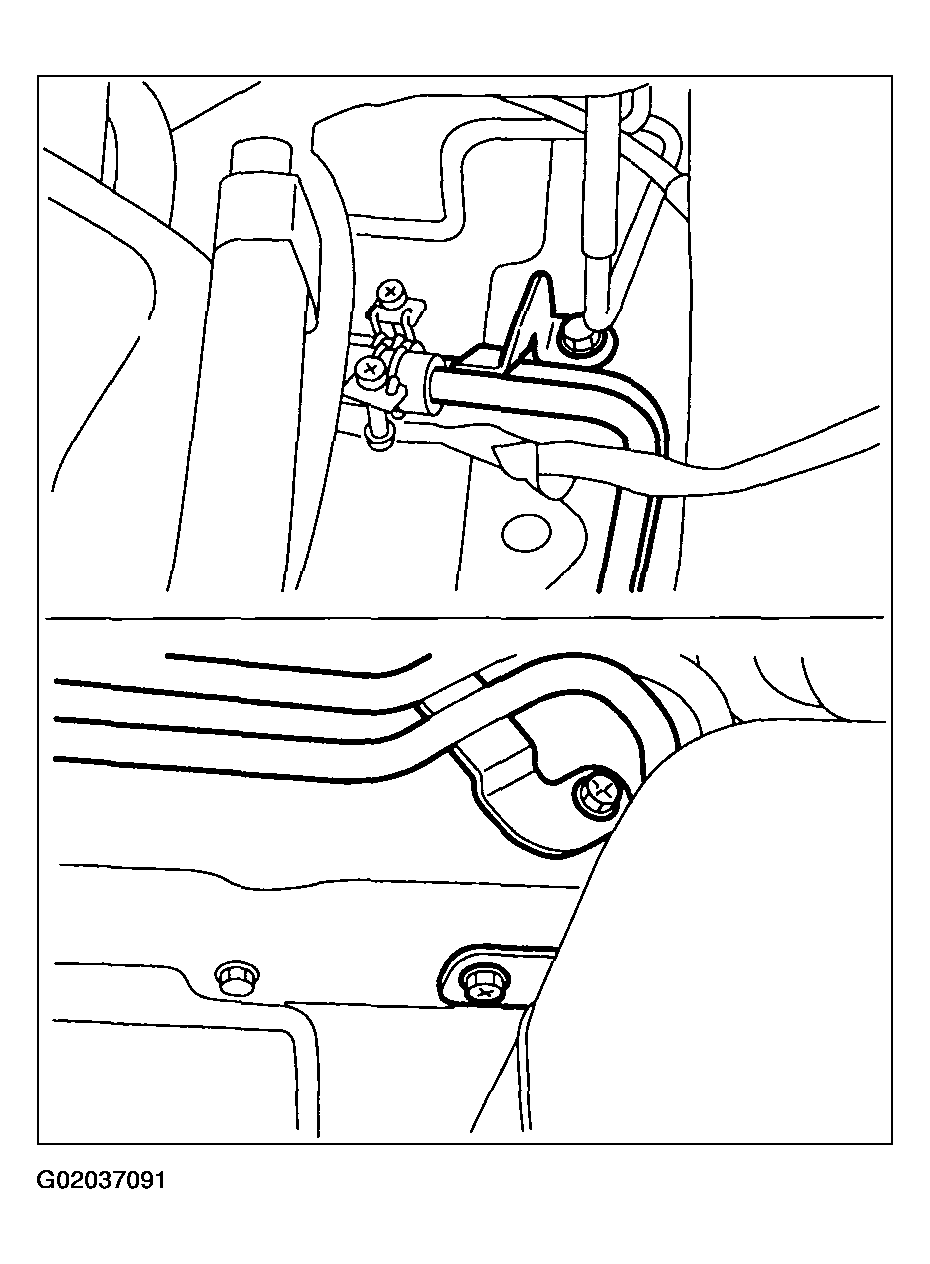

Fig 2: Installing ATF Cooler Pipe To Frame
Connect ATF cooler hose to pipe transmission side.
NOTE:
- Install so that the hose is not folded over, excessively bent, or twisted.
- Be careful to insert the hose to the specified position.

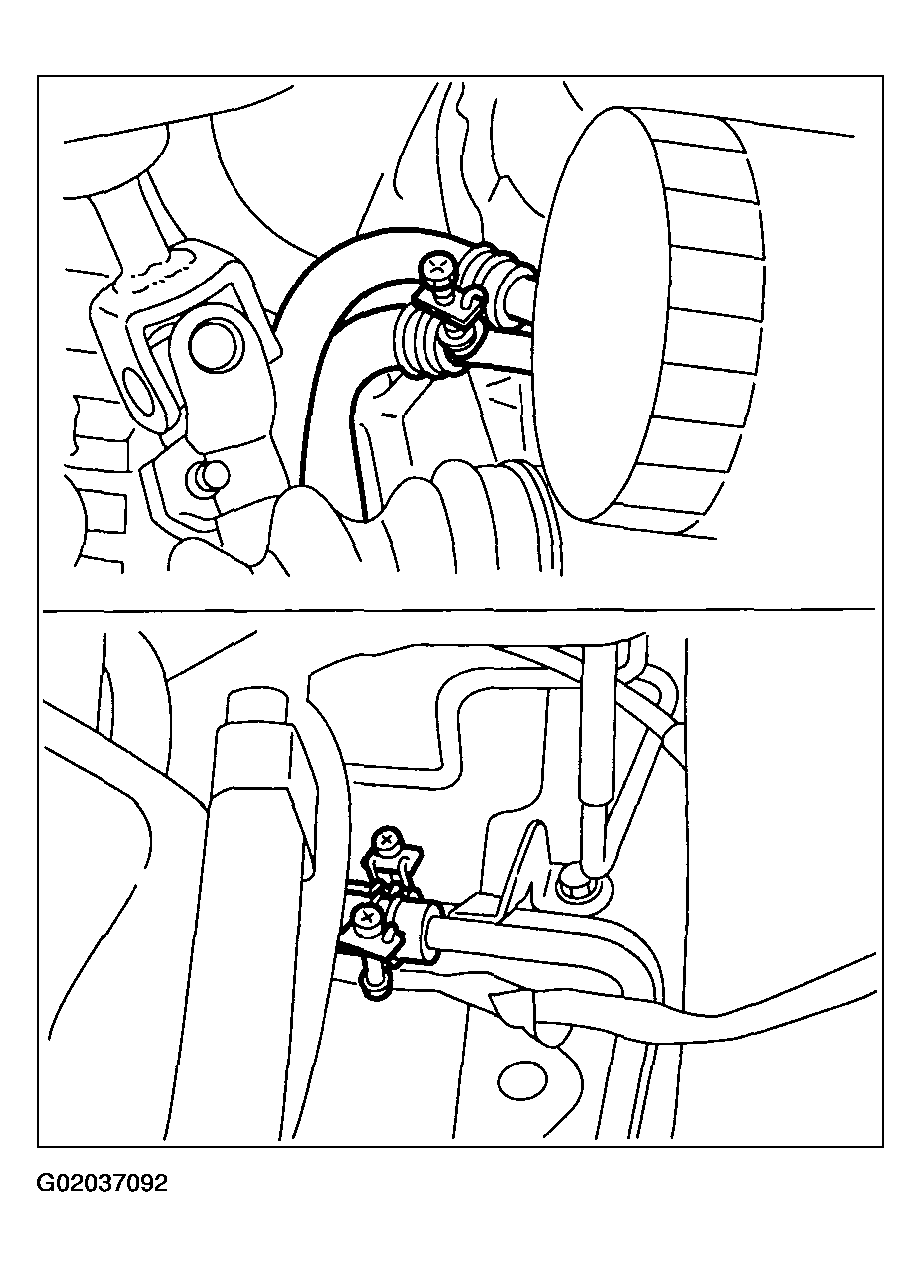

Fig 3: Connecting ATF Cooler Hose To Pipe Transmission Side
Connect ATF cooler hose to pipe of radiator side.
NOTE:
- Install so that the hose is not folded over, excessively bent, or twisted.
- Be careful to insert the hose to the specified position.

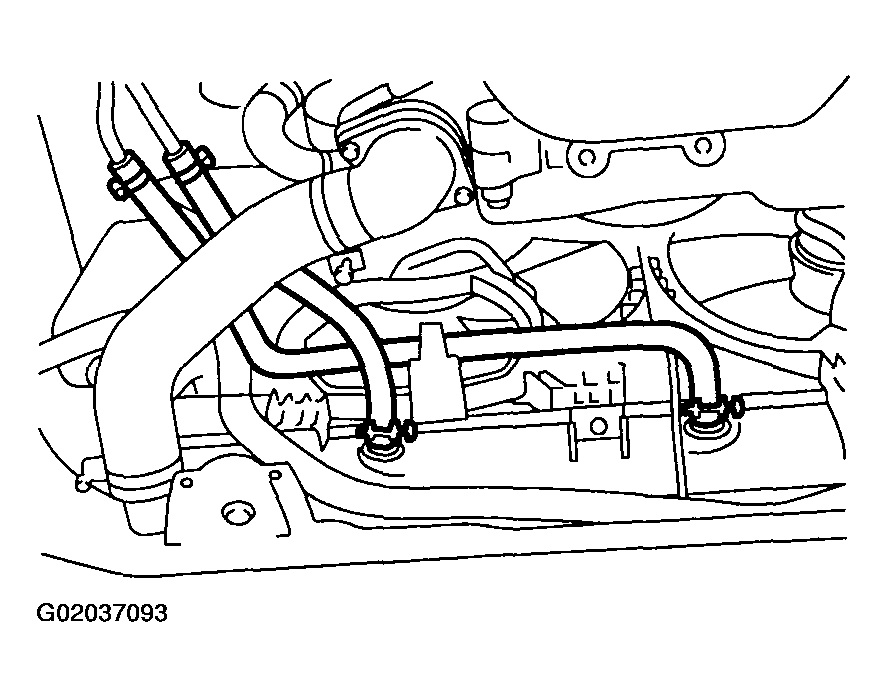

Fig 4: Connecting ATF Cooler Hose To Pipe Of Radiator Side
Install the under cover.
Install battery and washer tank.
Fill ATF. See Automatic Transmission Fluid .

NOTE: Make sure there are no ATF leaks in joints between the transmission, radiator, pipes, and hoses.
