Universal Joint: Removal

  1. Remove the steering wheel. See REMOVAL  , Steering Wheel.
  2. Remove universal joint bolts and then remove universal joint.
    CAUTION: Scribe alignment marks on universal joint so that it can be reassembled at the original serration.

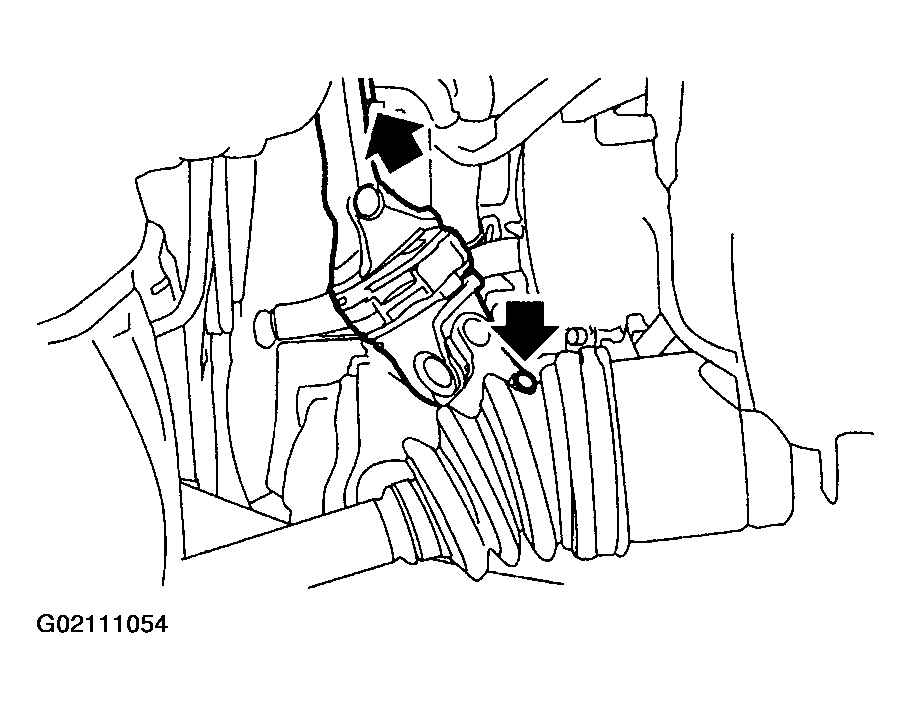

    Fig 1: Removing Universal Joint
    G02111054
